Last winter, a fleet of delivery trucks in Michigan started having a strange problem: their adaptive cruise control (ACC) kept shutting off in cold weather. The culprit? The radar sensor mounted behind the grille—its internal PCB had failed. “We took apart the sensor and found the rigid PCB’s solder joints had cracked from road vibration,” said Jake, the fleet’s maintenance manager. “Worse, the high-frequency radar signals were getting distorted, so the sensor couldn’t detect other cars reliably.”
That’s the double challenge for automotive radar PCBs: they need to handle high-frequency signals (77–81 GHz for most automotive radars, critical for detecting objects) and survive constant vibration (from potholes, rough roads, and engine rumble). Traditional rigid PCBs often fail here—they crack under vibration, and their signal paths can’t maintain the precision needed for high-frequency data. But rigid-flex PCBs? They solve both problems.
In this article, we’ll dive into why automotive radar needs both high-frequency performance and vibration resistance, share stories from engineers who’ve fixed radar failures with rigid-flex PCBs, and break down the key design features that make these PCBs reliable.
Automotive radar isn’t just a “nice-to-have”—it’s critical for safety features like ACC, automatic emergency braking (AEB), and blind-spot detection. To work, it needs two non-negotiable capabilities that rigid PCBs struggle to provide:
Radar sensors send and receive 77–81 GHz signals—extremely high frequencies that are easily distorted. Even tiny flaws in the PCB (like uneven trace widths or poor grounding) can scatter these signals, leading to false alarms (e.g., the radar thinking a trash can is a car) or missed detections (e.g., not seeing a stopped vehicle).
“We had a batch of radar sensors with rigid PCBs that kept giving false AEB triggers,” said Maria, an engineer at a radar module manufacturer. “The problem was the rigid PCB’s trace paths—they had sharp bends that distorted the 79 GHz signal. The radar thought every small bump in the road was an obstacle.”
Cars and trucks vibrate constantly—from 5 Hz (engine idle) to 200 Hz (rough highways). A rigid PCB’s solder joints, connectors, and even copper traces can crack under this stress. Jake’s delivery trucks saw this: “The rigid PCB’s solder joints connecting the radar antenna to the processor cracked after 6 months of potholes. The sensor stopped working entirely.”
Worse, vibration can shift components on a rigid PCB, changing the radar’s alignment. “We had a radar where the antenna shifted 0.1mm from vibration,” Maria said. “That tiny shift made the radar’s detection range drop by 30%—it couldn’t see cars more than 50 meters away.”

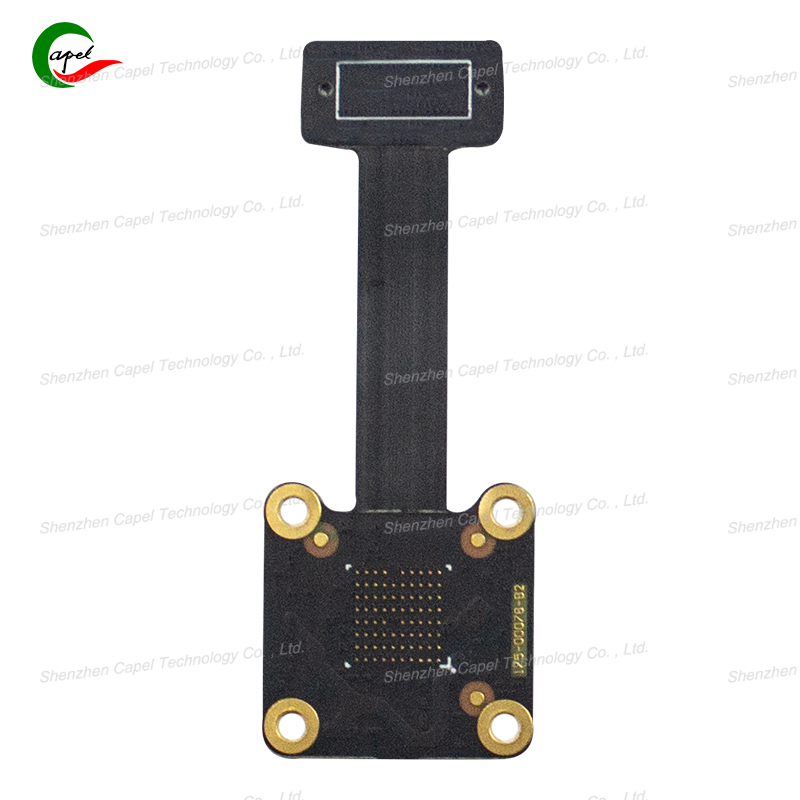

Rigid-flex PCBs blend the best of both worlds: rigid FR4 sections (for stable component mounting, critical for high-frequency parts) and flexible PI (polyimide) sections (for absorbing vibration). Here’s how they solve the dual challenges:
The rigid FR4 sections of a rigid-flex PCB are ideal for high-frequency radar components (antennas, oscillators, signal processors) because they provide stable, consistent signal paths. Engineers can design these sections to minimize signal distortion:
- Controlled Impedance Traces: Radar signals need consistent impedance (resistance to signal flow) to avoid distortion. Rigid sections let engineers design traces with precise widths (e.g., 0.2mm) and spacing from ground planes—something flexible sections alone can’t match.
- Integrated Antennas: Many rigid-flex radars print the radar antenna directly onto the rigid section. This eliminates the need for a separate antenna (which can introduce signal loss) and keeps the antenna aligned with the processor.
- Ground Planes: Rigid sections can include multiple ground planes to “shield” high-frequency traces from interference (e.g., from the car’s power supply).
Maria’s team redesigned their radar’s rigid section with controlled impedance traces (0.2mm width, 0.1mm spacing from ground) and smooth, curved paths (no sharp bends). “The 79 GHz signal stopped distorting,” she said. “False AEB triggers dropped from 15% to 0.5%.”
The flexible PI sections of a rigid-flex PCB act like shock absorbers, absorbing vibration so the rigid sections (and their components) stay stable.
- Strain Relief Loops: Flexible sections include small U-shaped loops that stretch and compress with vibration, reducing stress on solder joints and traces.
- Flexible Adhesives: The adhesive bonding rigid and flexible sections is designed to stretch (CTE matched to PI and FR4), so vibration doesn’t pull the two sections apart.
- No Loose Wires: Rigid-flex PCBs replace loose wires (which fray and break) with integrated flexible sections, eliminating a common vibration failure point.
Jake’s team replaced the trucks’ rigid PCB radars with rigid-flex versions that had 10mm strain relief loops in the flexible sections. “After 12 months of potholes, none of the solder joints have cracked,” he said. “The radar works perfectly in cold weather too—no more ACC shutdowns.”
Let’s look at how a major automaker solved their radar reliability issues with rigid-flex PCBs. They were seeing 8% of their radar sensors fail within the first year—most from vibration-related cracks or high-frequency signal distortion. Here’s their solution:
- Vibration Failures: 60% of failures came from cracked solder joints on rigid PCBs.
- Signal Distortion: 40% of failures were from distorted 77 GHz signals (causing false AEB triggers or missed detections).
- Space Constraints: The radar had to fit in a small grille-mounted housing—rigid PCBs were too bulky.
- Rigid-Flex Design: They used a rigid section for the antenna and processor (with controlled impedance traces and dual ground planes) and a flexible section (with 8mm strain relief loops) to connect to the car’s wiring.
- Vibration Testing: They tested the rigid-flex PCBs to 2,000 hours of 5–200 Hz vibration (equivalent to 5 years of driving).
- Signal Optimization: They added a third ground plane to the rigid section to block interference from the car’s electrical system.
- Radar failure rate dropped from 8% to 0.3% in one year.
- False AEB triggers fell by 95%.
- The radar fit in the small housing—no need to redesign the grille.
“The rigid-flex PCB turned a problematic component into a reliable one,” said Raj, the automaker’s radar engineering lead. “Our customers no longer complain about ACC shutting off, and we’ve had zero safety-related issues.”
Designing a rigid-flex PCB for automotive radar isn’t just about “adding flexibility”—it’s about balancing high-frequency precision with vibration resistance. Here are the tips Maria, Jake, and Raj swear by:
Keep antennas, oscillators, and signal processors on rigid sections—flexible sections should only be used for connections (not high-frequency signal paths). “Flexible sections can introduce small signal losses,” Raj said. “Keep the critical high-frequency parts on rigid FR4 where signals stay clean.”
Bigger loops absorb more vibration—but don’t make them too big (they’ll waste space). For most cars, 8–12mm loops work; for heavy trucks (which vibrate more), use 12–15mm loops. “We tested 5mm loops first—they weren’t enough for the trucks’ potholes,” Jake said. “12mm loops solved the problem.”
Don’t just test for vibration—test high-frequency signal integrity too. Use a vector network analyzer (VNA) to check for signal distortion at 77–81 GHz, and run vibration tests to industry standards (like ISO 16750 for automotive electronics). “We used to only test vibration,” Maria said. “Adding VNA tests caught signal issues we would have missed.”
Automotive radar needs to be both precise (for high-frequency signals) and tough (for vibration)—and rigid-flex PCBs are the only technology that delivers both. Traditional rigid PCBs can’t handle the vibration, and flexible PCBs alone can’t maintain the signal integrity radar demands.
As cars become more autonomous (relying on radar for more safety features), the need for reliable radar PCBs will only grow. The engineers who succeed will be the ones who design rigid-flex PCBs that balance signal precision with vibration resistance—not just meet minimum standards.
Next time you’re driving and your ACC smoothly slows down for a car ahead, remember: there’s probably a rigid-flex PCB inside the radar sensor, working hard to keep the signal clean and the solder joints intact. That’s the dual protection that makes modern automotive safety possible.
