Circuit Board Assembly – A Complete Guide from SMT to THT and Quality Standards

Date: 2026-07-10

You're designing an electronic product. Maybe a wearable device, an industrial controller, a medical instrument, or an automotive sensor. You've drawn the schematic, picked the components, and received the bare boards. Now what? You need to mount those components onto the boards and turn them into working devices. That process is called circuit board assembly.

Circuit board assembly — also called PCBA (Printed Circuit Board Assembly) — is the process of soldering electronic components onto a bare PCB to create a functional, powered circuit. Simply put, PCB is the empty board; PCBA is the finished product. In this guide, I'll explain what circuit board assembly is, how it's done, how quality is controlled, and how to choose the right manufacturing partner. Plain English, no fluff.

1. PCB vs. PCBA — What's the Difference?

This is the most common confusion in electronics manufacturing.

PCB (Printed Circuit Board) is an empty board — it has copper traces and pads but no electronic components mounted on it. Think of it as a city's road network — the roads are built, but there are no houses or residents yet.

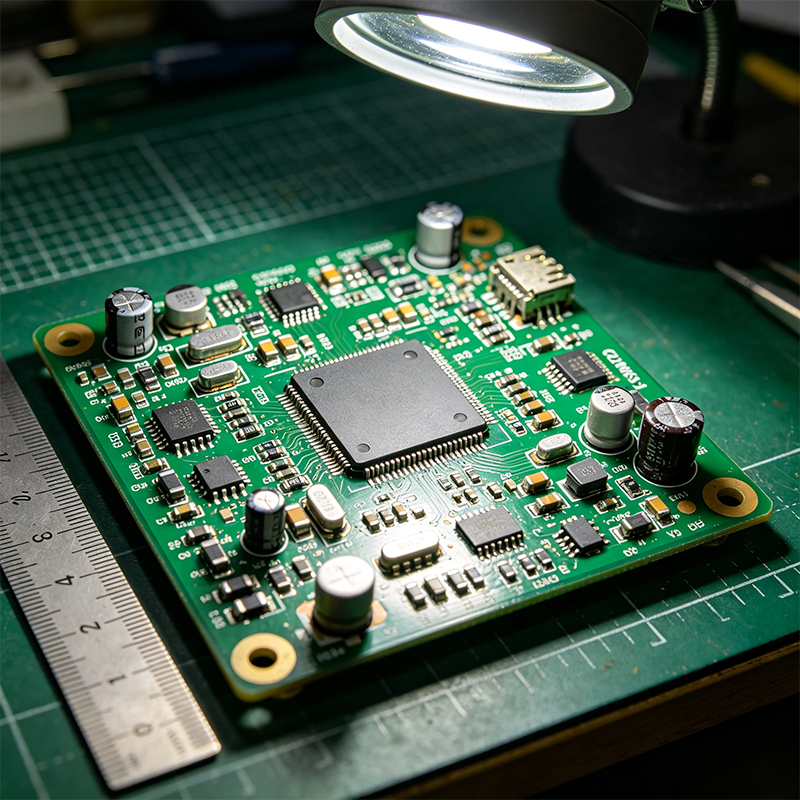

PCBA (Printed Circuit Board Assembly) is the fully assembled board — components are soldered on, and it works when powered up. Think of it as a complete, functioning city — roads, houses, residents, everything works together.

Remember: PCB = bare board, PCBA = finished board.

2. How Big Is the Circuit Board Assembly Market?

The global circuit board assembly market was valued at approximately $97.88 billion in 2025** and is projected to reach **$103.37 billion in 2026, growing at a CAGR of 6.12%, reaching $148.42 billion by 2032**. Other reports project it to reach **$176.6 billion by 2035.

Flexible PCB assembly demand is particularly strong — the global flexible PCB market was valued at $23.3 billion in 2025** and is projected to reach **$41.7 billion by 2030, growing at a CAGR of 12.3%.

Key growth drivers include consumer electronics miniaturization, automotive electronics proliferation, wearables, and HDI demand driven by 5G and AI. If your product is in any of these areas, circuit board assembly is a technology you can't ignore.

3. The Two Main Assembly Methods

Circuit board assembly comes in two main flavors, serving different needs:

1. Surface Mount Technology (SMT)

SMT is the dominant method, accounting for about 90% of all board assemblies. Components sit directly on the board surface. Advantages: high density, small footprint, automated high-volume production. Smartphones, computers, and wearables all use SMT.

2. Through-Hole Technology (THT)

THT is the older method — component leads pass through holes in the board and are soldered on the back. Advantages: high mechanical strength — ideal for heavy components, connectors, and repeated plug/unplug. Though it accounts for only about 10% of assemblies, it remains essential for high-reliability products.

3. Mixed Assembly

Most modern products use SMT + THT mixed — SMT for high-density sections, THT for connectors and power components. This hybrid approach balances miniaturization and reliability.

4. The Circuit Board Assembly Process

Turning a bare board into a finished assembly typically involves these steps:

Step 1: Solder Paste Printing

A stencil is used to deposit solder paste precisely onto the PCB pads. Solder paste is a mixture of microscopic solder spheres and flux — about the consistency of toothpaste.

Step 2: Component Placement (SMT)

Pick-and-place machines position components onto the pasted pads. High-speed machines handle small passives; high-precision machines handle ICs.

Step 3: Reflow Soldering

The populated board goes through a reflow oven. Heat melts the solder paste, then cools it to solidify, permanently attaching the components.

Step 4: Through-Hole Assembly (DIP/THT)

Some components (large capacitors, connectors) can't be placed by SMT machines. They're inserted manually or by machine, then wave-soldered or hand-soldered.

Step 5: Inspection (AOI, X-Ray, ICT)

After reflow, boards go through Automated Optical Inspection (AOI). For hidden joints (like BGAs), X-Ray inspection is required. After power-up, ICT (In-Circuit Test) checks component-level connections, and FCT (Functional Test) verifies overall board functionality.

Step 6: Cleaning and Packaging

Passing boards are cleaned, dried, placed in ESD bags, and boxed for shipping.

5. The Quality Standard: IPC-A-610

Circuit board assembly quality is governed by IPC-A-610. It's the most widely used electronics assembly standard in the world, using hundreds of color photos and illustrations to show what good solder joints look like versus bad ones.

IPC-A-610 divides products into three classes:

  • Class 1 (General Electronic Products) : Function is all that matters — cosmetic imperfections are acceptable. Toys and basic appliances fall here.

  • Class 2 (Dedicated Service Electronic Products) : Requires continuous, reliable operation — the default standard for most commercial and industrial electronics. Phones, computers, telecom gear.

  • Class 3 (High-Performance Electronic Products) : Aerospace, medical, defense — the strictest standards.

Companion standards include IPC-J-STD-001 (soldering process requirements) and IPC-6012 (rigid board performance qualification). Choosing the right class depends on where your product will be used. Most PCBA projects default to Class 2; medical and aerospace products must use Class 3.

6. What's Different About Flex and Rigid-Flex Assembly?

If your product uses flex PCBs or rigid-flex boards, assembly is significantly harder than rigid board assembly.

Flex boards lack rigidity — they warp, shift, and misalign during paste printing and placement. They must be mounted on rigid carriers from paste printing through placement and reflow.

The challenge with rigid-flex is thermal stress control at the rigid-to-flex transition. The rigid and flex sections expand at different rates during reflow — poor temperature control causes cracking and delamination at the transition.

Rigid-flex boards also absorb moisture and must be pre-baked before assembly to prevent delamination from steam during reflow. This is why rigid-flex assembly requires an experienced manufacturer — a standard SMT shop without flex-specific carriers and optimized reflow profiles will struggle.

7. Why Choose Us for Your Circuit Board Assembly?

We are not a standard rigid-only PCB shop. We are a one-stop manufacturer that designs and makes flexible PCBs, rigid-flex boards, HDI high-frequency boards, and then does full PCBA.

  • All in-house: PCB fabrication, SMT, DIP, testing, and assembly under one roof. No hand-offs.

  • Flex/rigid-flex expertise: Dedicated carriers and reflow profiles for flex boards. Hundreds of flex PCBA projects completed.

  • High-precision placement: Supports 01005 passives, 0.4mm pitch QFN, and BGAs.

  • SPI + AOI + X-Ray: Every step from paste to final assembly is inspected.

  • IPC-compliant: Fabrication and inspection to IPC-A-610 and IPC-J-STD-001 — Class 1, 2, and 3.

  • In-house FCT fixture design: Custom functional test fixtures built for your product.

  • Free DFM review: Send your Gerber and BOM, get a DFM report within 24 hours with potential issues identified.

Projects we've served: consumer electronics (TWS earbuds, smartwatches), industrial (PLCs, motor drives), automotive (BMS, camera modules), medical (patient monitors, glucometers), communications (routers, optical modules).

8. How to Start a Circuit Board Assembly Project

Three simple steps:

  1. Send your files: Gerbers, BOM, and Pick & Place data if available.

  2. We review and quote: Within 24 hours, you'll receive a DFM report, sample and volume pricing, and lead time estimate.

  3. Sample, then scale: We build 10-20 samples. You test functionality and reliability. Then we move to pilot and volume production.

9. Final Words

Circuit board assembly is the last mile from a drawing to a real product — and it's the step where the most can go wrong. One bad solder joint on a board with hundreds of components can kill the whole assembly.

If you're looking for a reliable assembly partner, especially if your product involves flex PCBs, rigid-flex boards, or high-density SMT, send us your files. We won't push a contract — we'll first run a free DFM review and let our expertise speak.

When you contact us, please include:

  • Product type and basic functionality

  • Whether it uses flex or rigid-flex boards

  • Estimated annual quantity (samples, small batch, or mass production)

We'll give you an honest answer — what we can do, what we can't, and how to modify your design to make it work.
