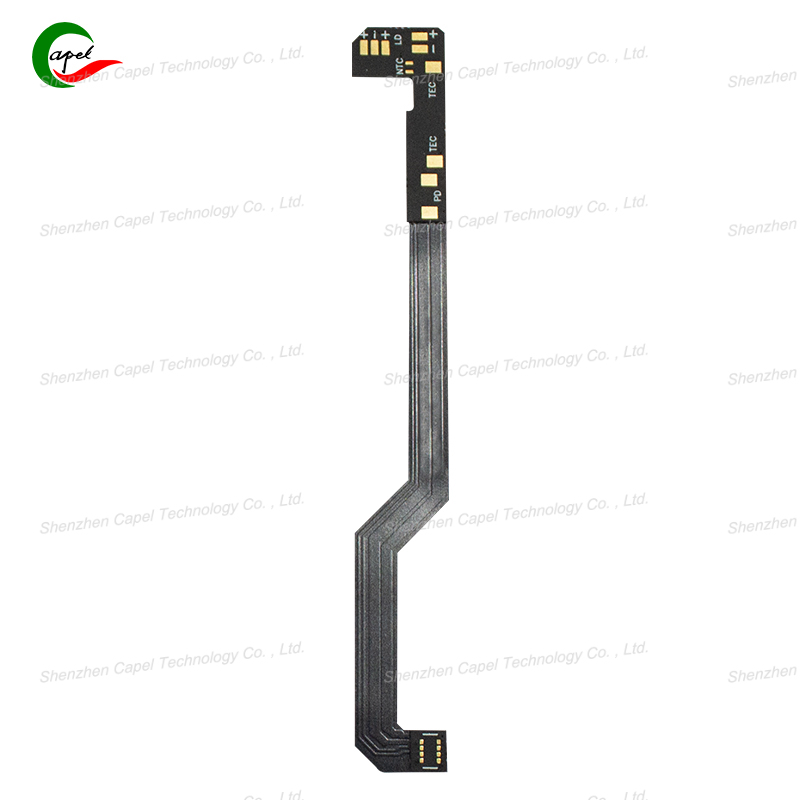

Imagine soldering a sensor to a rigid PCB—you heat the pad, apply solder, and it sticks. Now try the same with an FPC: the flexible polyimide layer warps under heat, the tiny trace lifts off the substrate, and you’re left with a "cold solder joint" (weak, unreliable) that fails in weeks. Soldering FPCs (Flexible PCBs) and PCBs (Rigid PCBs) might look similar, but they’re two very different jobs.
PCBs have thick, stable FR4 substrates that handle heat; FPCs have thin, heat-sensitive polyimide that bends—and breaks—if you’re not careful. The #1 mistakes beginners make? Using PCB soldering techniques on FPCs: too much heat, wrong solder, or heavy-handed tools. This leads to 70% of FPC soldering failures (vs. 20% for PCBs), according to the IPC (Association Connecting Electronics Industries).
Below is a no-nonsense guide to the key differences between FPC and PCB soldering, plus step-by-step tips to avoid cold solder joints, lifted traces, and solder joint failure—with real examples from electronics repair shops and factories.
The biggest divide between FPC and PCB soldering is how they handle heat. This one factor changes everything: temperature, tool choice, and soldering speed.
Real Example: A repair shop tried soldering a connector to an FPC using a 350°C iron (their go-to for PCBs). The polyimide warped, the trace lifted, and the FPC was ruined. They switched to a 280°C iron for FPCs—no more damage.
The tools that work for PCBs will destroy FPCs. Here’s what you need for each:
-
Soldering Iron: 320-350°C (higher heat = faster soldering; FR4 handles it).
-
Tip Size: 1.2-2mm (wider tips transfer more heat to large PCB pads).
-
Flux: Standard rosin flux (no need for low-temperature formulas).
-
Soldering Iron: 250-280°C (low enough to protect polyimide; test on scrap first!).
-
Tip Size: 0.5-1mm (fine tips target small FPC pads without heating nearby traces).
-
Flux: Low-temperature, no-clean flux (e.g., Kester 951) — it activates at 180°C, so you don’t need high heat.
-
Heat Sink: A small metal clamp (heat sink) to absorb excess heat from FPC traces (prevents lifting).
Pro Tip for FPCs: Use a "temperature-controlled iron" (not a cheap fixed-heat one). A $50 Weller WE1010NA saved a factory from 80% of FPC soldering damage.
PCBs can handle a quick wipe with alcohol; FPCs need gentle prep to avoid tearing or trace damage.
-
Wipe the PCB with isopropyl alcohol to remove dirt.
-
Apply a small amount of flux to the pad (helps solder flow).
-
No extra support needed—PCB stays flat on the workbench.
-
Secure the FPC: Tape the FPC to a flat surface (e.g., a heat-resistant mat) with low-tack tape—this stops it from warping when heated.
-
Reinforce Weak Areas: If soldering near a flexible zone, add a small piece of Kapton tape (heat-resistant) under the FPC to support it.
-
Light Flux Only: Apply a tiny dot of low-temp flux to the FPC pad—too much flux can seep under the trace and lift it.
-
Use a Heat Sink (If Needed): Clip a heat sink to the FPC trace 2mm from the pad—this pulls heat away from the polyimide.
Real Example: A hobbyist was soldering a battery connector to an FPC. They forgot to tape the FPC down—the flexible layer warped, and the trace lifted. Next time, they taped it to a mat and used a heat sink—perfect solder joint.
The way you apply the iron and solder is night and day for FPCs vs. PCBs.
-
Hold the iron tip on the pad for 2-3 seconds (heat the pad, not the trace).
-
Feed a small amount of solder (0.5-1mm) to the pad—solder should flow smoothly.
-
Remove the iron and let the solder cool for 5 seconds (PCB stays flat, so no movement).
Why It Works: PCB pads are large, and FR4 keeps everything stable—you have time to get the solder right.
-
Heat the Pad, Not the FPC: Touch the iron tip to the FPC pad for 1-2 seconds max—any longer, and the polyimide warps.
-
Tiny Solder Amount: Use solder wire thinner than 0.5mm (e.g., 0.3mm) — too much solder will pool and lift the trace.
-
Quick Release: As soon as the solder flows, lift the iron. Let the FPC cool for 10 seconds (don’t touch it—flexible layers move easily!).
-
Avoid Pressure: Never press the iron down on the FPC—light contact is enough. Pressure will push the trace off the substrate.
Common FPC Mistake: A factory soldered FPCs with the same 3-second iron contact time as PCBs. 30% of traces lifted. They cut time to 1.5 seconds—lifted traces dropped to 2%.
A "good looking" solder joint might be a dud. Here’s how to check FPCs and PCBs differently:
-
Visual Inspection: The solder joint should be shiny, smooth, and cover the pad (no gaps).
-
Tug Test: Gently pull the component—if it stays, it’s good (PCBs are rigid, so joints hold well).
-
Multimeter Test: Check continuity (beep mode) to confirm the joint is conducting.
-
Visual Inspection: Look for:
-
Cold Solder Joints: Dull, grainy solder (sign of too little heat or fast cooling).
-
Lifted Traces: Tiny gaps between the trace and FPC substrate (use a 10x magnifier).
-
Solder Bridges: Solder connecting two traces (common on FPCs with small pad spacing).
-
No Tug Test! Pulling FPCs will tear traces—use a multimeter for continuity instead.
-
Bend Test (For Flexible Zones): Gently bend the FPC 5-10 times (10° max) — if the joint fails the continuity test after, it’s weak.
Real Example: A smartwatch repair had a "good" FPC solder joint that failed the bend test. They re-soldered with more flux and a shorter iron time—passed the bend test and worked for 6 months.
Even pros mess up—here’s how to fix issues without ruining the board:
-
Cold Solder Joint: Reheat the pad for 2 seconds, add a tiny bit of solder, and let cool.
-
Solder Bridge: Use a desoldering braid (tinned copper) to soak up excess solder—heat the braid on the bridge, and it pulls the solder away.
-
Cold Solder Joint: Reheat only the pad for 1 second (use a heat sink on the trace), add a dot of low-temp flux, and a tiny solder amount.
-
Lifted Trace: Stop! Don’t try to reattach it—use conductive glue (e.g., MG Chemicals 8331) to bond the trace back to the FPC. Let dry 30 minutes, then test continuity.
-
Solder Bridge: Use a fine-tip desoldering iron (0.5mm tip) to remove excess solder—don’t use braid (it pulls too hard on FPC traces).
The key to avoiding cold solder joints and solder joint failure is simple: treat FPCs and PCBs like the different materials they are.
-
For PCBs: Use higher heat, steady timing, and rely on the rigid substrate to keep things stable.
-
For FPCs: Use low heat, fast hands, secure the flex, and never rush—polyimide doesn’t forgive mistakes.
A factory that made both PCBs and FPCs once had a 40% FPC soldering failure rate. After switching to low-temp irons, fine tips, and heat sinks, failures dropped to 5%. A repair shop did the same—their FPC repair success rate went from 50% to 90%.
Next time you pick up the iron, ask: Is this a PCB (tough, heat-resistant) or an FPC (fragile, heat-sensitive)? The answer will tell you everything you need to know to make a solder joint that lasts.
