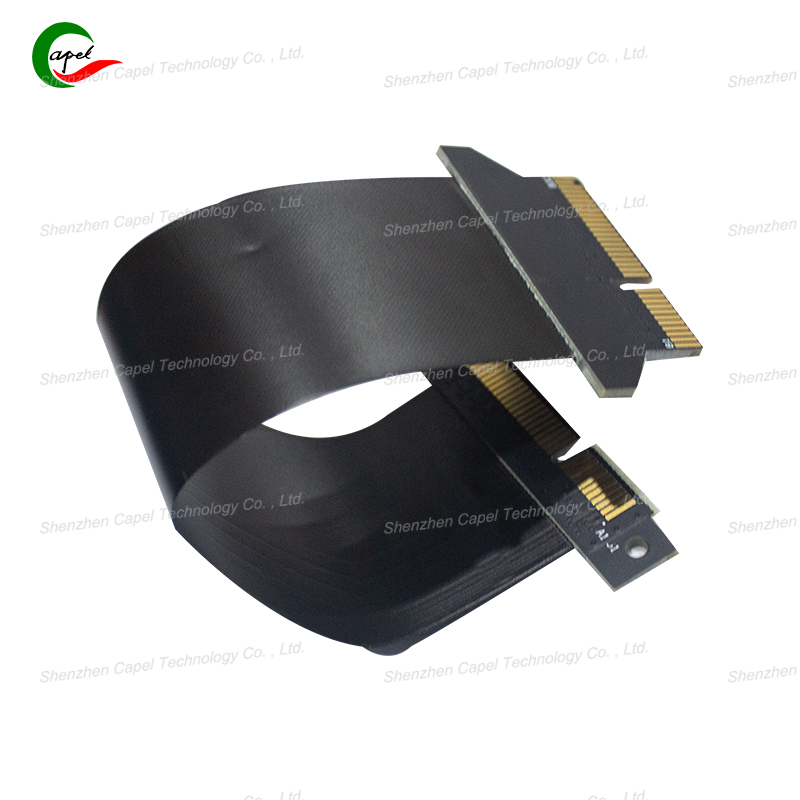

Imagine a car’s battery management system failing after 2 years—all because its rigid-flex PCB wasn’t tested for vibration. Or a foldable phone’s screen going black after 10,000 folds—when it was supposed to last 200,000. Rigid-flex PCBs mix rigid and flexible layers, so their lifespan depends on more than just "quality materials"—it depends on passing rigorous tests that mimic real-world use.
Unlike traditional PCBs (tested mostly for electrical performance), rigid-flex PCBs need to prove they can handle bending, vibration, temperature changes, and moisture for years. Without clear standards and practical testing methods, manufacturers risk shipping faulty products—and costly recalls. Below, we break down the key industry norms (from IPC, IEEE) and step-by-step testing methods, with examples from Tesla, Samsung, and medical device makers.
Before testing, you need to know the "rules." These global standards define what "lifespan" means for rigid-flex PCBs, and what tests are required:
IPC-2223 is the most widely used standard (adopted by 90% of electronics makers). It sets clear rules for lifespan testing, including:
-
Bending Cycle Test: For flexible zones—100,000+ folds (180° bends) with no trace cracking. Samsung uses this for foldable phone PCBs; only boards passing 200,000 folds are shipped.
-
Thermal Cycle Test: Alternate between -40°C and 125°C (500+ cycles) to test temperature resistance. Tesla uses this for car rigid-flex PCBs; failure rate must be <1%.
-
Vibration Test: Expose PCBs to 10-2000 Hz vibration (20+ hours) to mimic car/aircraft movement. Boeing uses this for aerospace PCBs; no layer separation allowed.
IEEE 1625 is stricter, designed for devices where failure is dangerous (e.g., pacemakers, satellites). Key requirements:
-
Humidity-Thermal Test: 85°C + 85% humidity (1000+ hours) to test moisture resistance. Medtronic uses this for implantable device PCBs; no corrosion allowed.
-
Mechanical Shock Test: Hit PCBs with 500G force (1ms duration) to simulate drops. NASA uses this for satellite PCBs; no solder joint damage permitted.
Brands like Apple or Samsung add their own rules. For example:
-
Apple requires rigid-flex PCBs in AirPods to survive 5000+ insertion/removal cycles (mimicking daily use).
-
Samsung’s foldable phone PCBs must pass 1 million "half-folds" (90° bends) without signal loss.
Standards are useful—but you need to know how to execute tests in a lab. Below are 4 critical tests, with practical tips from real factories:
Goal: Check if flexible layers crack after repeated bending.
How to Do It:
-
Secure the PCB: Clamp the rigid parts of the PCB to a test fixture; leave the flexible zone free.
-
Set Bending Parameters: Use a motorized arm to bend the flexible zone 180° (or 90°, per design) at 30 cycles/minute.
-
Inspect Every 10,000 Cycles: Use a microscope to check for trace cracks; test electrical continuity (no signal loss allowed).
Real Example: Samsung’s foldable phone lab tests 100 PCBs per batch. Only those with 0 cracks after 200,000 folds pass. They once rejected a batch that failed at 150,000 folds—fixing the flexible layer material cut failures by 80%.
Goal: Ensure PCBs survive extreme temperature changes (e.g., car engines, outdoor sensors).
How to Do It:
-
Place PCB in Environmental Chamber: Set the chamber to -40°C (hold for 30 minutes), then heat to 125°C (hold for 30 minutes)—this is 1 cycle.
-
Run 500+ Cycles: For automotive/industrial PCBs; 1000+ cycles for aerospace.
-
Check for Damage: After testing, inspect for layer separation, solder joint cracks, or signal delays.
Real Example: Tesla’s battery PCB lab runs 1000 thermal cycles. A batch failed at 600 cycles—they found the adhesive between rigid and flexible layers was faulty. Switching to a high-temperature adhesive fixed the issue.
Goal: Simulate real-world vibration (car movement, factory machinery) to prevent layer separation.
How to Do It:
-
Mount PCB to Vibration Table: Attach the PCB as it would be in the device (e.g., with screws, adhesive).
-
Set Vibration Levels: For cars: 10-500 Hz, 2G force (20 hours); for aerospace: 10-2000 Hz, 5G force (40 hours).
-
Monitor in Real Time: Use sensors to track layer movement; if separation exceeds 0.01mm, the PCB fails.
Real Example: Boeing tests aerospace rigid-flex PCBs at 5G vibration for 40 hours. They once found a batch had layer separation—reinforcing the adhesive with glass fiber reduced failures to 0%.
Goal: Prevent corrosion or layer damage from humidity (e.g., wearable devices, marine sensors).
How to Do It:
-
Put PCB in Humidity Chamber: Set to 85°C and 85% relative humidity.
-
Run for 1000+ Hours: For medical/industrial PCBs; 500 hours for consumer electronics.
-
Test Electrical Performance: After testing, check for short circuits or trace corrosion (use an ohmmeter to measure continuity).
Real Example: Medtronic tests pacemaker PCBs for 1500 hours at 85°C/85% humidity. A past batch had corrosion—coating the PCB with a waterproof conformal layer cut failures by 95%.
Even with standards, labs make errors that ruin test accuracy:
-
Skipping "Real-World Mounting": Testing a PCB loose on a vibration table (instead of mounted like in the device) leads to false passes. Tesla once made this mistake—fixing the mounting reduced false passes by 60%.
-
Inspecting Only Visually: Cracks in inner layers are invisible to the naked eye. Use X-ray inspection (as Boeing does) to catch hidden damage.
-
Testing Too Few Samples: Testing 5 PCBs per batch risks missing defects. Samsung tests 10% of each batch—catching 98% of faulty boards.
Rigid-flex PCBs are only reliable if they’re tested to last. Industry standards like IPC-2223 and IEEE 1625 set the bar, but practical testing methods (bending cycles, thermal shocks, vibration) turn "standards" into "real-world durability."
Tesla’s car PCBs last 10+ years, Samsung’s foldable PCBs survive 200,000 folds, and Medtronic’s medical PCBs work for 7+ years—all because of rigorous testing. For manufacturers, cutting corners on testing saves time today but costs millions in recalls tomorrow.
The next time you use a device with a rigid-flex PCB (a foldable phone, a car sensor), remember: every bend, every temperature change, every vibration it endures was tested in a lab first. That’s the difference between a product that lasts—and one that fails.
