You use them every day. Your phone, your laptop, your car—they're all packed with them. But have you ever stopped to wonder how are printed circuit boards made? It's not something you can whip up in a garage. It's a fascinating, multi-step process that turns a digital design into the physical backbone of your electronics.
Whether you're sourcing boards for a new product or just curious about what happens after you hit "send" on those Gerber files, understanding the process helps you appreciate what goes into a quality board. And more importantly, it helps you know what to look for in a manufacturing partner.

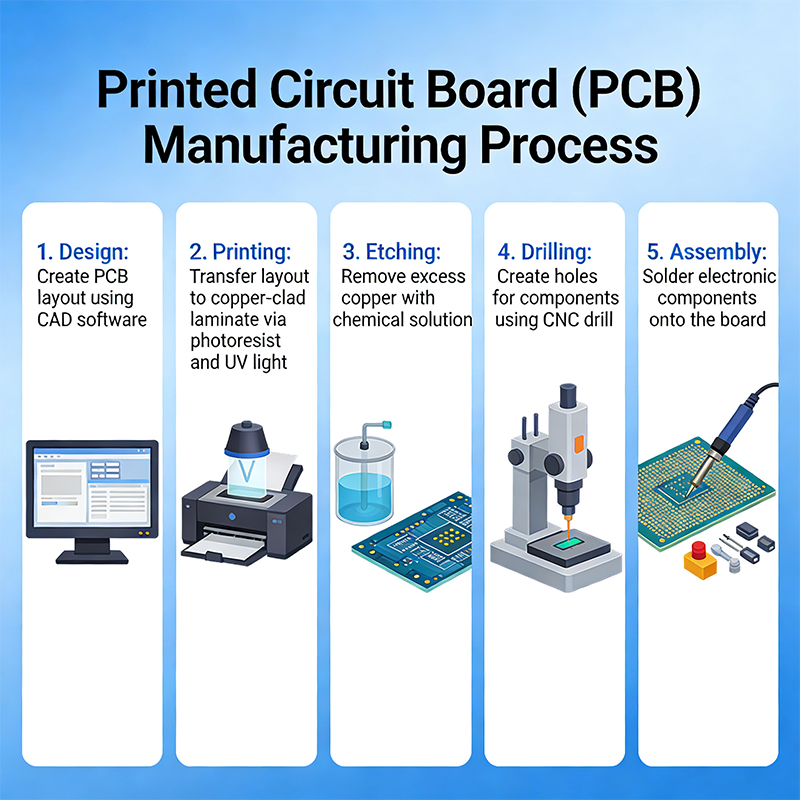

Let's walk through how a raw sheet of material becomes a finished circuit board, ready for assembly.
Before any copper is etched or any holes are drilled, the process begins with your design files—typically Gerber files. But a good manufacturer doesn't just take your files and start cutting. The first, and perhaps most important step, is a Design for Manufacturing (DFM) check .
Think of this as an insurance policy. Experienced engineers review your design against their production capabilities. They're looking for potential issues before they become expensive problems . Are the trace widths within limits? Are the drill holes the right size? Is the spacing adequate? Catching these things early saves time, money, and a whole lot of frustration.
At Kaboer, we take this seriously. Our engineers meticulously review every design, providing feedback to ensure your board is optimized for manufacturing before we ever start production.
The physical process starts with the base material, called copper-clad laminate. For most boards, this is a sheet of insulating material (usually FR-4 fiberglass) with a thin layer of copper foil bonded to one or both sides . These large sheets are cut down into panels of the precise working size needed for the production line.
For boards with more than two layers, we start with the inner circuits. This is a photographic process.
First, a light-sensitive film called photoresist is applied to the copper surface . Then, using a method called Laser Direct Imaging (LDI) , the circuit pattern from your design is transferred onto the board. A laser scans the surface, hardening the photoresist where the copper traces should remain. The unhardened areas stay soft.
The panel then goes through a chemical bath that removes the soft, unexposed photoresist and the copper underneath it . What's left is the hardened resist protecting the exact copper pathways of your circuit. Finally, the remaining resist is stripped away, leaving behind the bare copper inner layer circuitry.
After etching, every inner layer goes through a critical quality check. Automated Optical Inspection (AOI) machines use high-resolution cameras to scan the board, comparing the actual copper patterns to the original design data . This step catches any defects like opens, shorts, or thin spots before the board is assembled further. It's a non-negotiable step for reliable boards.
For a multilayer board, the individual inner layers need to be fused into a single, solid panel. They are stacked with sheets of a special bonding material called prepreg (pre-impregnated fiberglass) placed between them .
This stack is placed in a hydraulic press under intense heat and pressure. The heat melts the prepreg, which flows and bonds all the layers together . Once cured, it forms one solid, monolithic board.
Now it's time to create the holes for vias and through-hole components. Using incredibly precise, computer-controlled drilling machines, thousands of holes are drilled per panel with micron-level accuracy . For the tiny holes used in advanced HDI boards, lasers are used to drill these microvias .
The drilled holes are just holes in insulating material at this point. To make them conductive, they must be plated. The panel goes through a process called Plated Through-Hole (PTH) . First, a thin layer of copper is chemically deposited on all surfaces, including inside every hole. Then, additional copper is electroplated, building up the thickness and creating a solid, conductive tube through each hole. This electrically connects all the layers of the board.
The outer layers of the board are processed in a similar way to the inner layers. The panels are cleaned, coated with photoresist, and exposed to define the outer circuit pattern. After developing, the exposed copper areas get an extra layer of plating, often followed by a thin layer of tin to act as an etch resist. The unwanted copper is then etched away, and the tin is stripped, leaving the final outer layer traces .
That familiar green (or red, blue, black) coating is called solder mask. It's a protective layer applied over the entire board. Using another photo-imaging process, the solder mask is removed only from the pads and holes where components will be soldered . This mask protects the copper traces from oxidation and prevents accidental solder bridges during assembly.
The white lettering and component outlines you see on a board are added in this step. The silkscreen (or legend) prints important information like component identifiers (R1, C5), polarity markers, logos, and test points . This is the map that guides assembly and makes troubleshooting possible.
The bare copper pads that will be soldered need to be protected from oxidation. This is where a surface finish comes in. Several options exist, each with its own benefits :
HASL (Hot Air Solder Leveling) : A cost-effective finish where the board is dipped in molten solder and then leveled with hot air.
ENIG (Electroless Nickel Immersion Gold) : A high-quality, flat finish with a layer of nickel followed by a thin layer of gold, ideal for fine-pitch components.
OSP (Organic Solderability Preservative) : A water-based, organic coating that protects the copper until it's soldered.
Individual circuit boards are still attached to the larger manufacturing panel. They are cut out using a CNC router (for complex shapes) or by scoring V-shaped grooves (V-grooves) that allow them to be easily snapped apart later .
The last step before shipping is to ensure the board works electrically. Every board is tested for shorts and opens. This is often done with a flying probe tester, which uses tiny, moving probes to touch every single net on the board and verify its connection . This rigorous test guarantees the board you receive is free of basic electrical defects.
Understanding how a bare board is made is one thing. Ensuring it's made right for your specific application is another. At Kaboer, we don't just follow these steps; we master them. Since 2009, we've been providing custom flexible PCBs, rigid-flex boards, HDI high-frequency PCBs, and PCBA one-stop services from our factory in Shenzhen.
Our process is built on precision and quality. From our comprehensive DFM review to the final flying probe test, we control every stage. And because we own our PCBA factory, we can seamlessly take your project from a bare board to a fully assembled, tested module.
We also understand that time matters. That's why we offer fast prototyping to get your designs validated quickly. And we're always happy to welcome overseas customers to visit our factory and see our process firsthand.
If you need a partner who truly understands how to build reliable circuit boards, send us your requirements. We'll provide a free quote and technical guidance within 2 hours. Let's build something great together.
