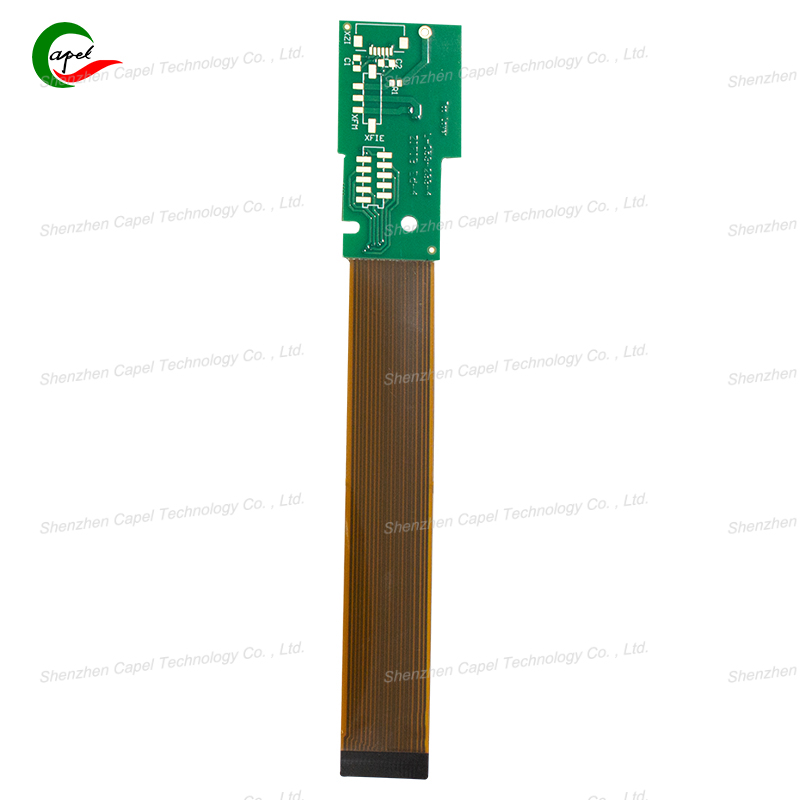

High-power devices—from industrial motor controllers to electric vehicle (EV) charging modules—generate massive heat. A 200W PCB can reach temperatures of 120°C or higher during operation, and if that heat isn’t dissipated properly, it will warp PCBs, melt solder joints, and shorten device lifespans. For rigid-flex designs (which combine stiff and flexible sections), heat management is even trickier: flexible layers trap heat more easily, and the rigid-flex junction becomes a "heat hotspot." Below are proven strategies to solve these issues, backed by real-world examples.
The right materials don’t just withstand heat—they help spread it. For high-power PCBs and rigid-flex boards, skip standard FR-4 substrates (which start degrading at 130°C) and opt for heat-friendly alternatives:
-
Metal-core PCBs (MCPCBs): For rigid sections, use MCPCBs with aluminum or copper cores. These cores act as built-in heat sinks—aluminum MCPCBs dissipate heat 5x faster than FR-4. A German EV component maker switched from FR-4 to aluminum-core PCBs for their 300W charging modules, cutting operating temperatures by 35°C.
-
High-Tg flexible substrates: For flexible sections, choose polyimide substrates with a glass transition temperature (Tg) above 200°C (vs. 150°C for standard polyimide). These substrates resist warping even when exposed to 150°C heat. A U.S. industrial robot firm used this material for their rigid-flex arm controllers, eliminating 90% of heat-related flex-layer failures.
-
Thermally conductive adhesives: When bonding rigid and flexible sections, use adhesives with thermal conductivity (e.g., 1.5 W/m·K) instead of non-conductive ones. This lets heat flow from flexible layers to rigid heat sinks—critical for EV battery management systems (BMS) with rigid-flex designs.
Poor trace design turns small sections of the PCB into "heat traps." In high-power circuits, current flows through copper traces, and narrow or long traces create resistance—which generates more heat.
A Chinese solar inverter manufacturer learned this lesson:
-
Their initial 150W inverter PCB used 0.2mm-wide copper traces for power paths. During testing, the traces overheated to 140°C, causing solder joints to crack.
-
Fix: Widen power traces to 0.8mm (increasing copper volume by 4x) and shorten trace lengths by rearranging components (e.g., placing capacitors closer to ICs). The traces now stay below 95°C, and the inverter’s failure rate dropped by 75%.
For rigid-flex designs, an extra tip: Keep power traces on the rigid section as much as possible. Flexible layers have thinner copper (usually 1oz vs. 2oz on rigid sections), so they can’t handle high current without overheating.
Even the best materials and traces need help moving heat off the PCB. Two effective solutions are heat sinks and thermal vias:
-
Heat sinks for rigid sections: Attach aluminum or copper heat sinks to high-power components (e.g., MOSFETs, voltage regulators) using thermal paste (conductivity ≥ 3 W/m·K). For compact designs, use "low-profile" heat sinks (as thin as 3mm) that fit into tight enclosures. A Korean consumer electronics brand added these to their 180W laptop chargers, preventing overheating during extended use.
-
Thermal vias for layer-to-layer heat flow: Drill tiny vias (0.3–0.5mm) filled with copper between the PCB’s top and bottom layers. These vias act like "heat tunnels," moving heat from hot components to the PCB’s opposite side (where it can escape into the air). For rigid-flex boards, add thermal vias near the rigid-flex junction—this stops heat from building up at the transition point. A European medical device maker used 50+ thermal vias in their 250W laser therapy device, keeping the flexible section 20°C cooler.
For ultra-high-power designs (300W+), passive cooling (materials, vias) isn’t enough—you need active or enhanced passive cooling:
-
Natural convection: Design the PCB with "heat vents" (cutouts in the rigid section) and mount it vertically. This lets hot air rise away from the board, instead of getting trapped. A U.S. server manufacturer used this for their 400W power supply PCBs, reducing temperatures by 25°C without extra fans.
-
Forced air cooling: Add small fans (50–80mm) directed at hot spots. For rigid-flex boards, place fans near the rigid section (since flexible layers can’t handle fan vibration). A Chinese EV maker added 60mm fans to their 500W motor controllers, keeping the rigid-flex board below 100°C even during high-speed driving.
-
Liquid cooling (for extreme cases): For 1000W+ devices (e.g., industrial welding machines), use liquid cooling loops with copper tubes attached to the PCB. This is more complex but dissipates heat 10x faster than air cooling.
Optimization means nothing without testing. Use these tools to verify your heat dissipation design:
-
Thermal imaging cameras: These cameras show real-time temperature maps of the PCB. A thermal image of a rigid-flex BMS might reveal that the flexible section is 30°C hotter than the rigid section—telling you to add more thermal vias.
-
Environmental chambers: Test the PCB at extreme temperatures (e.g., 60°C ambient) to simulate real-world use. A Japanese aerospace firm tested their 350W satellite rigid-flex PCBs in a -40°C to 85°C chamber, ensuring they work in space’s harsh conditions.
-
Power cycling tests: Run the PCB at full power for hours, then shut it down—repeat 1000+ times. This reveals weak points (e.g., solder joints that fail after 500 cycles due to heat stress).
For high-power PCB and rigid-flex designs, heat isn’t a "problem to fix later"—it needs to be built into the design from day one. Start with heat-resistant materials, optimize trace layout, add cooling features (vias, heat sinks), and test rigorously. The payoff? Devices that run cooler, last longer, and avoid costly recalls. As one EV engineer put it: "A well-cooled PCB isn’t just reliable—it’s the difference between a car that charges safely and one that overheats."
