Imagine trying to paint a detailed picture, but instead of using a fine brush, you're pressing a rubber stamp onto the canvas. That's a bit like how traditional circuit board imaging works: you create a physical film (like a negative), place it on the board, and shine UV light through it. It works, but the stamp wears out, the paint smudges, and fine details get blurry.

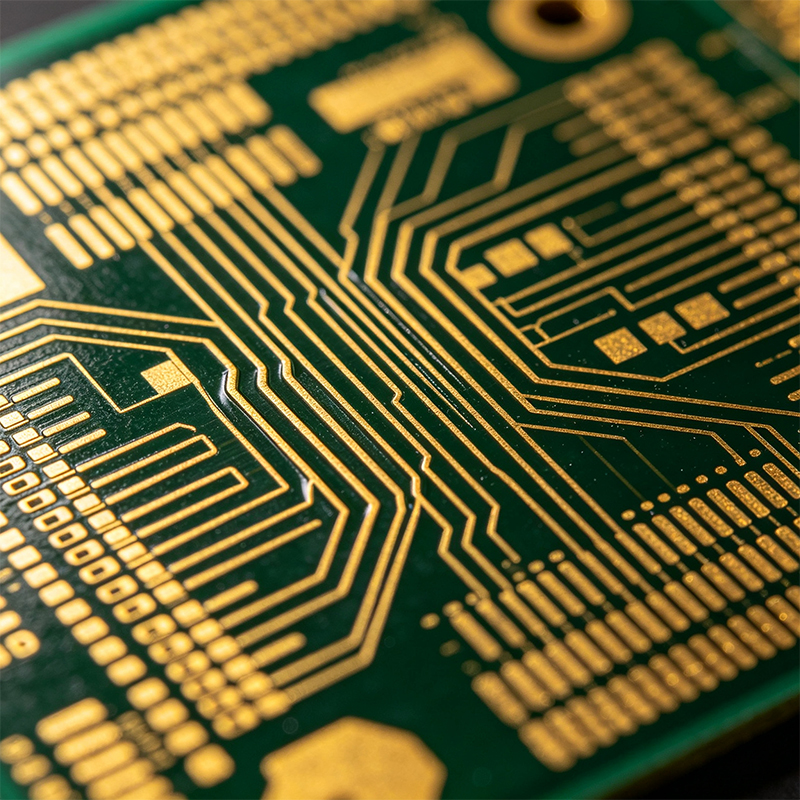

Now imagine drawing that same picture with a laser pointer that moves exactly where you tell it, with perfect precision every time. That's Laser Direct Imaging (LDI) – and it's changing the way circuit boards are made.

What Is Laser Direct Imaging?

Laser Direct Imaging (LDI) is a technology that uses a computer‑controlled laser beam to draw the circuit pattern directly onto a light‑sensitive board (a panel coated with photoresist). No physical film, no negatives, no messy handling – just pure digital precision.

In a traditional PCB factory, workers create a photographic film of the circuit design (the “photo‑tool”), place it on the board, and expose it to UV light. The light hardens the photoresist in the pattern of the circuit, and the rest washes away. With LDI, the design file (from your CAD software) goes straight to the laser. The laser scans the board, exposing only the areas that should become copper traces.

No film. No waiting for tooling. Just a laser and a computer.

Why Did We Need LDI?

Electronic devices keep getting smaller, faster, and more powerful. A smartphone today packs more computing power than a desktop computer from ten years ago. That means circuit boards need finer traces (the copper lines that carry signals) and tighter spacing between them.

Traditional film‑based imaging has limits. The film itself can stretch, shrink, or warp with temperature and humidity.. The physical mask can get dirty or scratched. And when you change the design, you need to create a whole new set of films – a slow and expensive process.

For older, simpler boards, these problems were manageable. But for today's high‑density boards (HDI, 5G antennas, smartphone motherboards), traditional imaging just can't keep up.

LDI vs. Traditional Imaging – A Quick Comparison

How LDI Achieves Higher Precision

LDI systems use high‑power UV lasers and sophisticated optics to focus a beam as small as 10‑25μm – thinner than a human hair.. The laser is guided by galvanometer‑driven mirrors that can move at speeds over 1 meter per second, precisely tracing the circuit pattern across the board.

Because there's no physical film to stretch or misalign, LDI can achieve layer‑to‑layer registration accuracy of ±5μm or better.. That means the top layer lines up perfectly with the inner layers – critical for multi‑layer boards and high‑speed digital designs.

Traditional exposure systems, by comparison, often struggle to maintain consistent line widths below about 50 microns.

Key Advantages of Laser Direct Imaging

1. Eliminates Photo‑Tools (Film) – No film means no film defects (scratches, dust, bubbles), no film storage costs, and no film alignment errors.. The film itself is gone.

2. Much Finer Traces – LDI can produce trace and space widths as small as 10‑25μm, essential for HDI boards and fine‑pitch components.. Some systems claim down to 10μm. Traditional methods typically top out around 50‑75μm.

3. Perfect Layer Registration – In multi‑layer boards, each layer must align precisely with the others. LDI's digital alignment system uses fiducial marks (small reference targets) to ensure perfect registration every time.

4. Instant Design Changes – Need to tweak a trace? Just load the updated CAD file. No waiting for new films to be made, no production downtime.. This is huge for prototyping and iterative design.

5. No Tooling Cost – Traditional film‑based methods require a separate photo‑tool for each layer of each design. That's expensive for small‑batch production. LDI has zero tooling cost – just the digital file.

6. Better Edge Quality – LDI‑exposed traces often have cleaner, more rectangular cross‑sections compared to the trapezoidal shapes from traditional methods.. Cleaner edges mean better high‑speed signal performance.

7. Handles Panel Distortion – LDI can compensate for slight warping of the board panel by mapping the actual position of fiducial marks and adjusting the laser pattern accordingly. Film‑based imaging can't do that.

How LDI Fits Into the PCB Manufacturing Process

LDI is used during the imaging step of PCB fabrication – after the board has been cleaned and coated with photoresist, but before etching.

Here's the typical workflow:

1. Clean the copper surface – Remove oxides and contaminants so the photoresist adheres properly.

2. Apply photoresist – The board is coated with a light‑sensitive material.

3. Load the design file – The digital circuit pattern is loaded into the LDI system.

4. Laser exposure – The laser scans the board, exposing the photoresist in the exact pattern of the circuit.

5. Develop – The unexposed photoresist is washed away, leaving the circuit pattern protected.

6. Etch – The exposed copper is chemically removed, leaving only the traces under the remaining photoresist.

7. Strip – The remaining photoresist is removed, revealing the pure copper traces.

Where Is LDI Used?

• High‑density interconnect (HDI) boards – LDI is essential for creating the fine traces and microvias found in smartphones, tablets, and wearables.

• IC substrates – The tiny, ultra‑precise boards that connect chips to the main PCB.

• Multi‑layer boards with buried and blind vias – LDI's registration accuracy is critical for aligning many layers.

• 5G and high‑frequency boards – Consistent trace geometry means consistent impedance – vital for high‑speed signal integrity.

• Prototyping and small batches – No tooling cost makes LDI very economical for low‑volume production.

• Military and aerospace – High reliability demands the best possible quality control.


What About Flexible PCBs?

Yes, LDI works perfectly for flexible printed circuits (flex PCBs). The same principles apply: a laser draws the pattern onto photoresist‑coated polyimide film. In fact, LDI is often preferred for flex because the flexible material can warp slightly, and LDI's adaptive alignment compensates for that. Film‑based imaging would struggle with a flimsy, moving substrate.

Does LDI Have Any Disadvantages?

No technology is perfect. Here are the main downsides:

• Higher equipment cost – LDI machines are expensive (hundreds of thousands of dollars), which is why not every PCB shop has them.

• Slower for very large panels – The laser has to scan the entire board, which can be slower than flash‑exposing a whole panel at once with a film mask. However, multi‑beam LDI systems are closing this gap.

• Not needed for simple boards – If your design uses wide traces and loose tolerances, traditional imaging is perfectly fine and cheaper.

• Requires special photoresist – LDI works best with photoresists formulated for laser sensitivity (fast‑acting). Not all photoresists are compatible.

Real‑World Example: Why a Smartphone Uses LDI

Let's say you're designing the main circuit board for a new smartphone. You have hundreds of tiny components packed into a space the size of a credit card. The traces between them are only 25‑30μm wide – thinner than a human hair. How do you make that?

With traditional film‑based imaging, the film itself would be thicker than the traces you're trying to create. The resolution just isn't there. And even if you could make the film, the alignment between layers would drift, causing short circuits. LDI is the only practical way to manufacture such boards.

The Future of LDI

As electronic devices continue to shrink, LDI will become even more important. Research is pushing toward super‑fine‑line technology with traces as narrow as 25μm or even 10μm.. Multi‑beam lasers are speeding up the process for large panels. And improvements in optics and motion control are bringing costs down.

Some advanced LDI systems can also handle 3D structures – building up patterns layer by layer with micrometer resolution, like a 3D printer for circuits.

Final Answer – What Is Laser Direct Imaging?

Laser Direct Imaging (LDI) is a PCB manufacturing technology that uses a computer‑controlled laser to draw circuit patterns directly onto a photoresist‑coated board, eliminating the need for physical photo‑tool film. It offers finer traces (down to 10‑25μm), perfect layer registration, zero tooling cost, and instant design changes. LDI is essential for high‑density interconnect (HDI) boards, IC substrates, and any application requiring fine‑pitch, high‑precision circuits.
