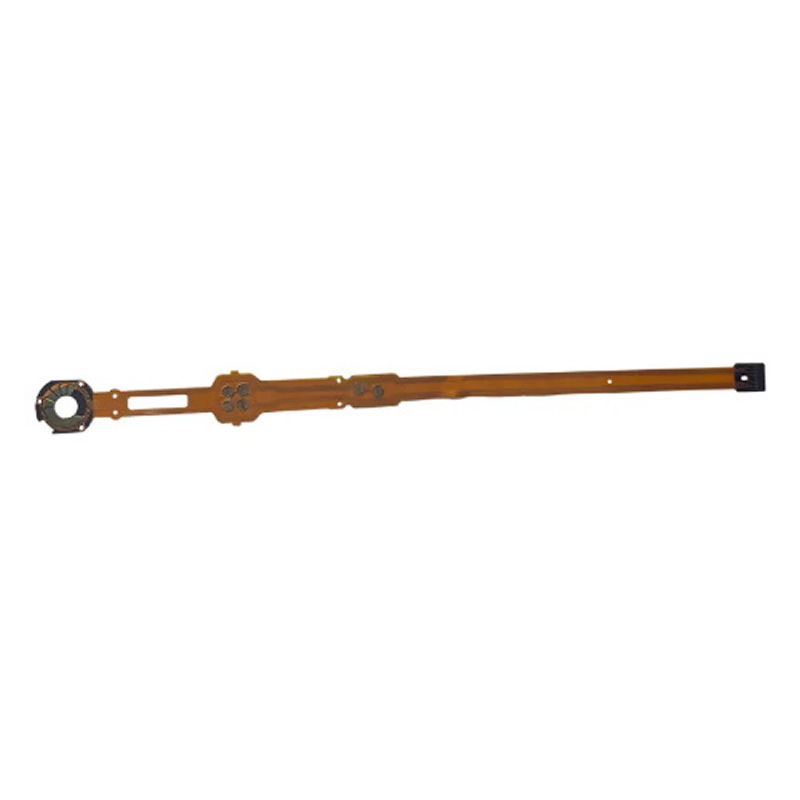

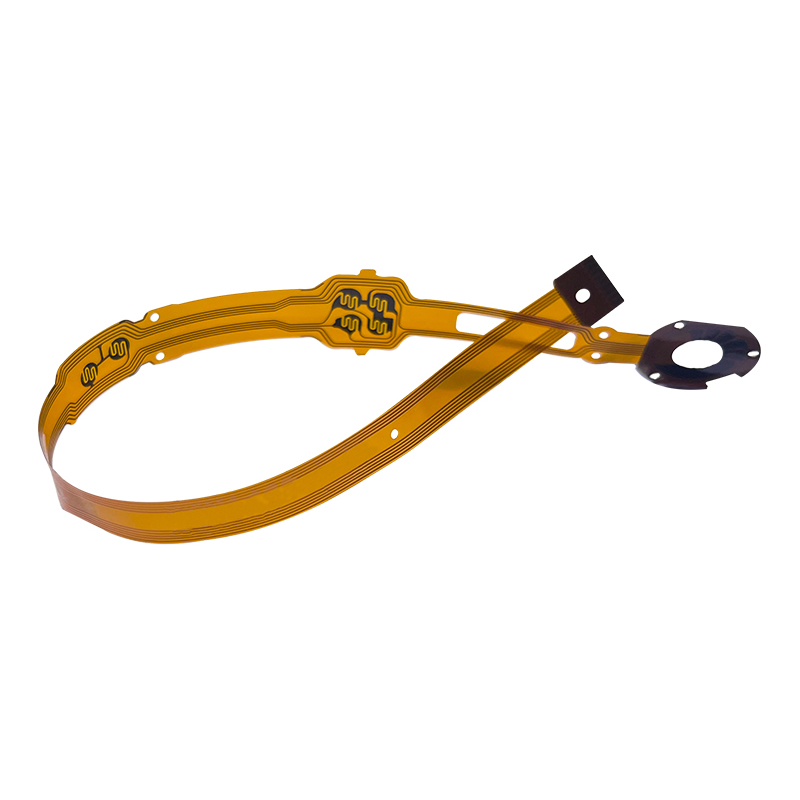

2 Layer Flex Circuit For Automotive Wiper

Short Description:

Product Type: 2 layer Flex PCB
Applications: Car
Material: PI,Copper,adhesive，
Line width and line spacing：0.2mm/0.25mm
Board thickness：0.23mm +/- 0.03mm
Minimum hole:0.1mm
Surface Treatment:ENIG 2-3uin

Impedance:/

Tolerance tolerance:±0.1MM

Capel’s Service:

Support Custom 1-30 Layer FPC Flexible PCB,2-32 Layer Rigid-Flex Circuit Boards,1-60 Layer Rigid PCB,HDI PCB,Reliable Quick Turn PCB Prototyping,Fast Turn SMT PCB Assembly

Industry We Service:

Medical Device, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…

Introducing Capel's 2-layer flexible PCB for automotive new energy – battery protection circuit board.
-Capel with 15 years of professional technical experience-

Capel is proud to introduce our newest product, a 2-layer flexible PCB designed specifically for automotive sensors. Leveraging our extensive practical experience in manufacturing automotive sensor flexible printed circuit boards, we develop high-quality, reliable solutions to meet the growing needs of the automotive industry.

Our 2-layer flex PCB circuit boards are constructed from top-quality materials including PI, copper, and adhesives to ensure durability and performance in the most demanding automotive environments. The board has a board thickness of 0.45mm +/- 0.03mm, making it ideal for space-constrained automotive sensor applications.

One of the key features of our flexible PCB circuit boards is their line width and line spacing of 0.1mm/0.1mm, which enables precise signal transmission and connections within automotive sensor systems. The board has a minimum aperture of 0.1mm, further enhancing its ability to meet the needs of automotive sensor technology.

To ensure long-term reliability, our flexible PCB circuit boards are surface treated with ENIG 2-3uin, providing superior protection against corrosion and wear. Additionally, our products feature a tolerance of ±0.1MM, ensuring consistent performance and accuracy in automotive sensor applications.

Our flexible PCB circuit boards are designed to address the unique challenges of automotive sensor technology, providing superior impedance control and signal stability. Leveraging our extensive knowledge and expertise in manufacturing flexible printed circuit boards, we have created a product that delivers reliable performance and accuracy in automotive sensor applications.

At Capel, we understand the importance of quality and reliability in automotive sensor technology. That's why our 2-layer flex PCB circuit boards are manufactured to the highest industry standards, ensuring they meet or exceed the performance requirements of our automotive customers.

In summary, Capel's flexible 2-layer PCB circuit boards for automotive sensors are high-quality, reliable solutions for the automotive industry. With extensive practical experience and a commitment to excellence, we develop products that meet the unique needs of automotive sensor technology. Trust Capel to meet all your flexible printed circuit board needs and experience our quality and reliability difference.

Capel Flexible PCB & Rigid-Flex PCB Process Capability

Category	Process Capability	Category	Process Capability
Production Type	Single layer FPC / Double layers FPC Multi-layer FPC / Aluminum PCBs Rigid-Flex PCB	Layers Number	1-30 layers FPC 2-32 layers Rigid-FlexPCB 1-60 layers Rigid PCB HDI Boards
Max Manufacture Size	Single layer FPC 4000mm Double layers FPC 1200mm Multi-layers FPC 750mm Rigid-Flex PCB 750mm	Insulating Layer Thickness	27.5um /37.5/ 50um /65/ 75um / 100um / 125um / 150um
Board Thickness	FPC 0.06mm - 0.4mm Rigid-Flex PCB 0.25 - 6.0mm	Tolerance of PTH Size	±0.075mm
Surface Finish	Immersion Gold/Immersion Silver/Gold Plating/Tin Plating/OSP	Stiffener	FR4 / PI / PET / SUS / PSA/Alu
Semicircle Orifice Size	Min 0.4mm	Min Line Space/ width	0.045mm/0.045mm
Thickness Tolerance	±0.03mm	Impedance	50Ω-120Ω
Copper Foil Thickness	9um/12um / 18um / 35um / 70um/100um	Impedance Controlled Tolerance	±10%
Tolerance of NPTH Size	±0.05mm	The Min Flush Width	0.80mm
Min Via Hole	0.1mm	Implement Standard	GB / IPC-650 / IPC-6012 / IPC-6013II / IPC-6013III

Capel manufactures customized high-precision Rigid Flexible Circuit Board / Flexible PCB / HDI PCB with 15 years of experience with our professionalism

2 Layer Flexible PCB Boards Stackup

4 Layer Rigid-Flex PCB Stackup

8 layer HDI PCBs

Testing And Inspection Equipment

Microscope Testing

AOI Inspection

2D Testing

Impedance Testing

RoHS Testing

Flying Probe

Horizontal Tester

Bending Teste

Capel provide customers customized PCB Service with 15 years of experience

Owning 3 factories for Flexible PCB&Rigid-Flex PCB, Rigid PCB, DIP/SMT Assembly;
300+Engineers Provide technical support for Pre-sales and after-sales online;
1-30 layers FPC, 2-32 layers Rigid-FlexPCB, 1-60 layers Rigid PCB
HDI Boards, Flexible PCB (FPC), Rigid-Flex PCBs, Multilayer PCBs, Single-sided PCB, Double-Sided Circuit Boards, Hollow Boards, Rogers PCB, rf PCB, Metal Core PCB, Special Process Boards, Ceramic PCB, Aluminum PCB, SMT & PTH Assembly, PCB Prototype Service.
Provide 24-hour PCB Prototyping service,Small Batches of circuit boards will be delivered in 5-7 days, Mass Production of PCB boards will be delivered in 2-3 weeks;
Industries we service: Medical Devices, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…
Our Production Capacity:
FPC and Rigid-Flex PCBs production capacity can reach more than 150000sqm per month,
PCB production capacity can reach 80000sqm per month,
PCB Assembling capacity at 150,000,000 components per month.
Our teams of engineers and researchers are dedicated to fulfilling your requirements with precision and professionalism.
