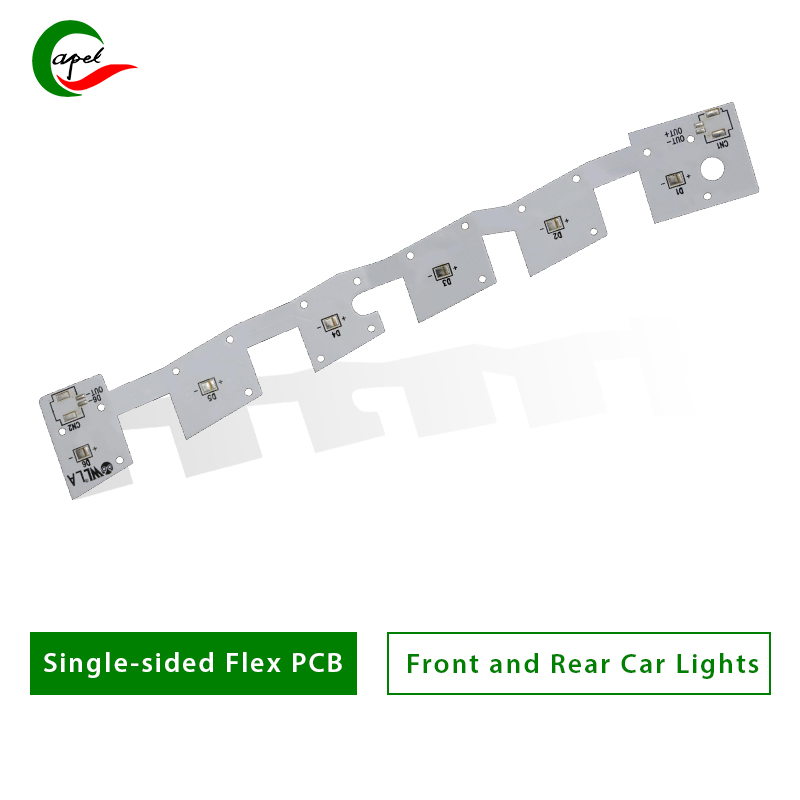

Single Sided Pcb Board 3.00 Thermal Conductivity for Front and Rear Car Lights

Short Description:

Product type：Single Sided Pcb Board
Number of layer：1 Layer Single-sided Flex PCB
Line width and line spacing：1.8MM/0.5MM
Board thickness：FPC=0.15MM T=1.15MM
Film Thickness：50UM
thermal conductivity：3.00
Surface Treatment：ENIG 2-3uin
Copper Thickness:1OZ
Stiffness:Aluminum sheet 1.0mm
Characteristic:Aluminum sheet is drawn and combined with thermal adhesive.
Application Vehicle:BYD
Application:Front and Rear Car Lights

How Single-Sided Pcb Board 3.00 Thermal Conductivity Provides Reliability Solutions for Front and Rear Car Lights Automakers

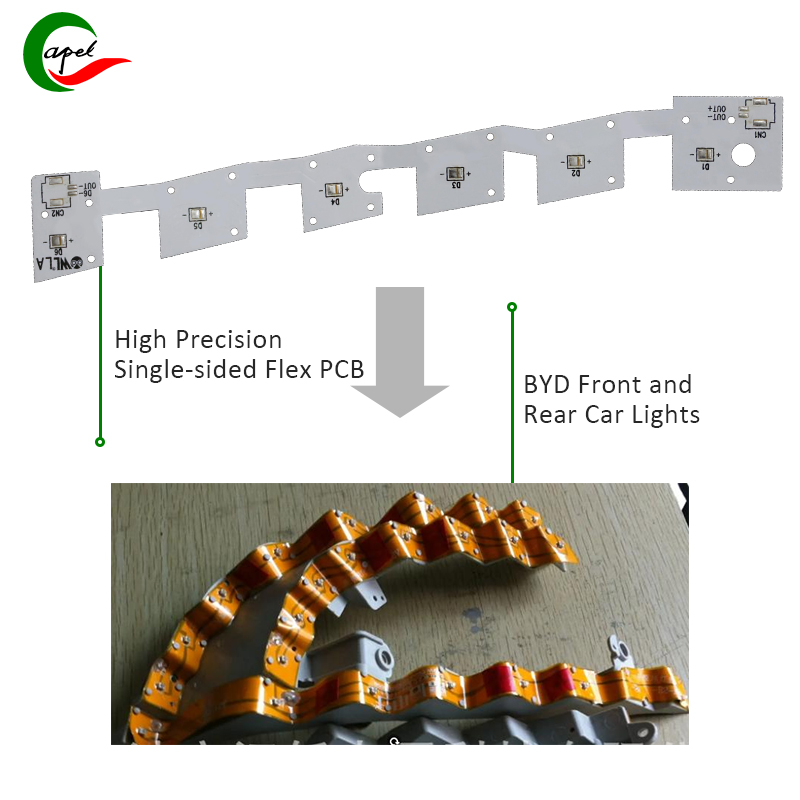

1 Layer High Precision Flex PCB applicated in BYD Front and Rear Car Lights
-Capel with 15 years of professional technical experience-

Capel's high-precision single-sided flexible PCBs have revolutionized the automotive lighting industry with their superior durability and reliability. This innovative product is specially designed for the front and rear lights of BYD vehicles, providing an unrivaled level of performance and enhancing the overall driving experience.

One of the key distinguishing features of Capel's single-sided flex PCBs is their construction. Aluminum sheets are drawn and bonded with thermal adhesive to form a highly robust and efficient PCB. This unique combination ensures that the product can withstand the harsh conditions of automotive applications, providing a longer service life with minimal maintenance requirements.

As far as technical specifications are concerned, Capel's single-sided flex PCBs excel in all respects. The board features a single-layer design that enhances the ease and efficiency of operation. The line width and line spacing are set to 1.8MM and 0.5MM respectively to ensure accurate signal transmission.

Capel's single-sided flexible PCB board thickness is FPC=0.15MM T=1.15MM, which has achieved a perfect balance between flexibility and durability. The robustness of the product is further enhanced by the 50UM film thickness, providing additional protection against environmental elements such as temperature changes and humidity.

Thermal conductivity is an important aspect of any PCB, especially in automotive lighting applications. Capel's single-sided flex PCB has an impressive thermal conductivity of 3.00, which effectively dissipates heat and prevents any possible damage due to overheating.

Surface finish is another key consideration in high-quality PCB design. Capel's single-sided flexible PCB is treated with ENIG (Electroless Nickel Immersion Gold) with a thickness of 2-3uin to ensure excellent electrical conductivity and corrosion resistance. This surface treatment improves the overall performance and lifetime of the PCB, making it ideal for demanding automotive applications.

With a copper thickness of 1OZ, Capel's single-sided flex PCB has excellent electrical conductivity to reduce signal loss and increase the overall efficiency of the lighting system. The stiffness of the aluminum plate is set at 1.0 mm to provide structural integrity to the PCB, ensuring its long-term reliability under various operating conditions.

In addition, the application of Capel's single-sided flexible PCB in BYD's front and rear lights highlights its suitability for automotive lighting requirements. Known for its innovative electric vehicles, BYD relies on Capel's PCBs to enhance the performance of its lighting systems, providing drivers with optimal visibility and safety.

Capel's single-sided flexible PCBs are not limited to automotive lights but can be applied to a variety of other automotive applications. Its versatility and superior performance make it the first choice of the world's leading automakers.

To sum up, Capel's high-precision single-sided flexible PCB is applied to BYD's car front and rear lights, with unparalleled durability, reliability and performance. Its construction, specifications and surface treatment ensure optimum electrical conductivity, thermal resistance and structural integrity. Capel's single-sided flexible PCB has proven its suitability for the harsh automotive environment through its use in BYD cars. As automotive lighting technology continues to advance, Capel remains at the forefront, providing cutting-edge solutions to meet the changing needs of the industry.
