Short Description:

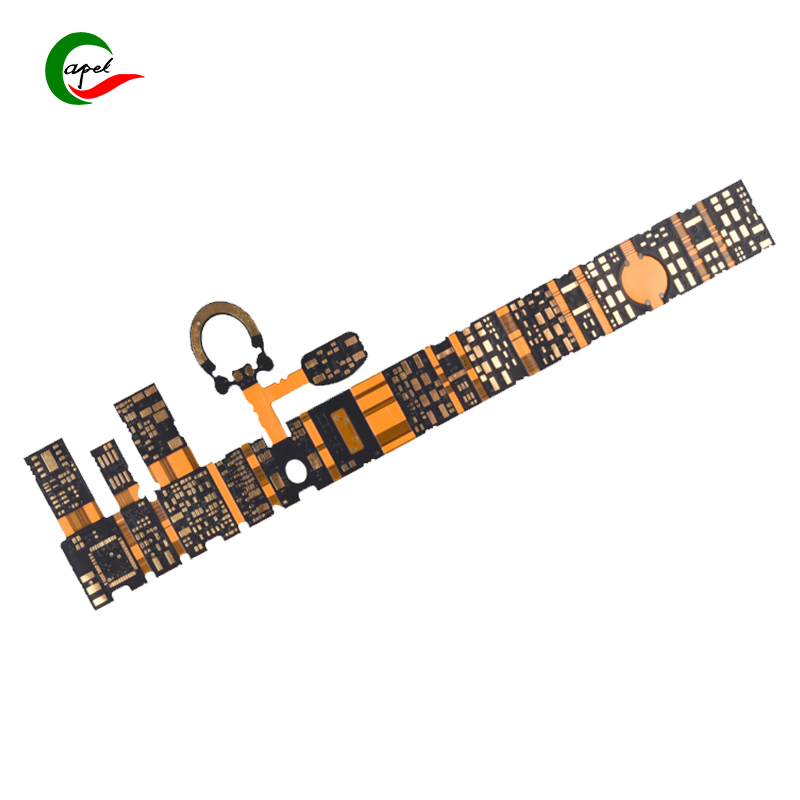

Model: Multi-layer Rigid-Flex PCBs

Product application:

Board Layers: 4 layer

Base material: PI, FR4

Inner Cu thickness: 18um

Outer Cu thickness: 35um

Cover film color: Yellow

Solder mask color: Black

Silkscreen: White

Surface treatment: ENIG

Flex thickness: 0.19mm +/-0.03mm

Rigid thickness: 1.0mm +/-10%

Stiffener type: PI

Min Line width/space: 0.1/0.1mm

Min hole: 0.lmm

Special Process: HDI blind buried hole

Buried hole: Yes

Hole tolerance(mm): PTH: 土0.076, NTPH: 土0.05

Impedance: Yes

Application: IOT

how Multi-layer Rigid-Flex PCBs applicated in IoT Device
1. Space optimization: IoT devices are usually designed to be compact and portable. Multilayer Rigid-Flex PCB enables efficient space utilization by combining rigid and flex layers in one board. This allows components and circuits to be placed in different planes, optimizing the use of available space. 2. Connecting Multiple Components: IoT devices typically consist of multiple sensors, actuators, microcontrollers, communication modules, and power management circuits. A multilayer rigid-flex PCB provides the connectivity needed to connect these components, allowing seamless data transfer and control within the device. 3. Flexibility in shape and form factor: IoT devices are often designed to be flexible or curved to fit a specific application or form factor. Multilayer rigid-flex PCBs can be manufactured using flexible materials that allow bending and shaping, enabling the integration of electronics into curved or irregularly shaped devices.
4. Reliability and durability: IoT devices are often deployed in harsh environments, exposed to vibrations, temperature fluctuations, and moisture. Compared with traditional rigid or flex PCB, multilayer rigid-flex PCB has higher durability and reliability. The combination of rigid and flexible layers provides mechanical stability and reduces the risk of interconnect failure. 5. High-density interconnect: IoT devices often require high-density interconnects to accommodate various components and functions. Multilayer Rigid-Flex PCBs provide multilayer interconnections, allowing for increased circuit density and more complex designs. 6. Miniaturization: IoT devices continue to become smaller and more portable. Multilayer rigid-flex PCBs enable the miniaturization of electronic components and circuits, allowing the development of compact IoT devices that can be easily integrated into various applications. 7. Cost efficiency: Although the initial manufacturing cost of multilayer rigid-flex PCBs may be higher compared to traditional PCBs, they can save costs in the long run. Integrating multiple components on a single board reduces the need for additional wiring and connectors, simplifies the assembly process and reduces overall production costs.
Capel Flexible PCB & Rigid-Flex PCB Process  Capability
Category Process Capability Category Process Capability
Production Type Single layer FPC / Double layers FPC
Multi-layer FPC / Aluminum PCBs
Rigid-Flex PCB
Layers Number 1-30 layers FPC
2-32 layers Rigid-FlexPCB
1-60 layers Rigid PCB
HDI Boards
Max Manufacture Size Single layer FPC 4000mm
Double layers FPC 1200mm
Multi-layers FPC 750mm
Rigid-Flex PCB 750mm
Insulating Layer
Thickness
27.5um /37.5/ 50um /65/ 75um / 100um /
125um / 150um
Board Thickness FPC 0.06mm - 0.4mm
Rigid-Flex PCB 0.25 - 6.0mm
Tolerance of PTH
Size
±0.075mm
Surface Finish Immersion Gold/Immersion
Silver/Gold Plating/Tin Plating/OSP
Stiffener FR4 / PI / PET / SUS / PSA/Alu
Semicircle Orifice Size Min 0.4mm Min Line Space/ width 0.045mm/0.045mm
Thickness Tolerance ±0.03mm Impedance 50Ω-120Ω
Copper Foil Thickness 9um/12um / 18um / 35um / 70um/100um Impedance
Controlled
Tolerance
±10%
Tolerance of NPTH
Size
±0.05mm The Min Flush Width 0.80mm
Min Via Hole 0.1mm Implement
Standard
GB / IPC-650 / IPC-6012 / IPC-6013II /
IPC-6013III
Capel manufactures customized high-precision Rigid Flexible Circuit Board / Flexible PCB / HDI PCB with 15 years of experience with our professionalism
2 Layer Flexible PCB Boards Stackup
4 Layer Rigid-Flex PCB Stackup
8 layer HDI PCBs
Testing And Inspection Equipment
Microscope Testing
AOI Inspection
2D Testing
Impedance Testing
RoHS Testing
Flying Probe
Horizontal Tester
Bending Teste
Capel provide customers customized PCB Service with 15 years of experience
Owning 3 factories for Flexible PCB&Rigid-Flex PCB, Rigid PCB, DIP/SMT Assembly;
300+Engineers Provide technical support for Pre-sales and after-sales online;
1-30 layers FPC, 2-32 layers Rigid-FlexPCB, 1-60 layers Rigid PCB
HDI Boards, Flexible PCB (FPC), Rigid-Flex PCBs, Multilayer PCBs, Single-sided PCB, Double-Sided Circuit Boards, Hollow Boards, Rogers PCB, rf PCB, Metal Core PCB, Special Process Boards, Ceramic PCB, Aluminum PCB, SMT & PTH Assembly, PCB Prototype Service.
Provide 24-hour PCB Prototyping service,Small Batches of circuit boards will be delivered in 5-7 days, Mass Production of PCB boards will be delivered in 2-3 weeks;
Industries we service: Medical Devices, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…
Our Production Capacity:
FPC and Rigid-Flex PCBs production capacity can reach more than 150000sqm per month,
PCB production capacity can reach 80000sqm per month,
PCB Assembling capacity at 150,000,000 components per month.
Our teams of engineers and researchers are dedicated to fulfilling your requirements with precision and professionalism.
