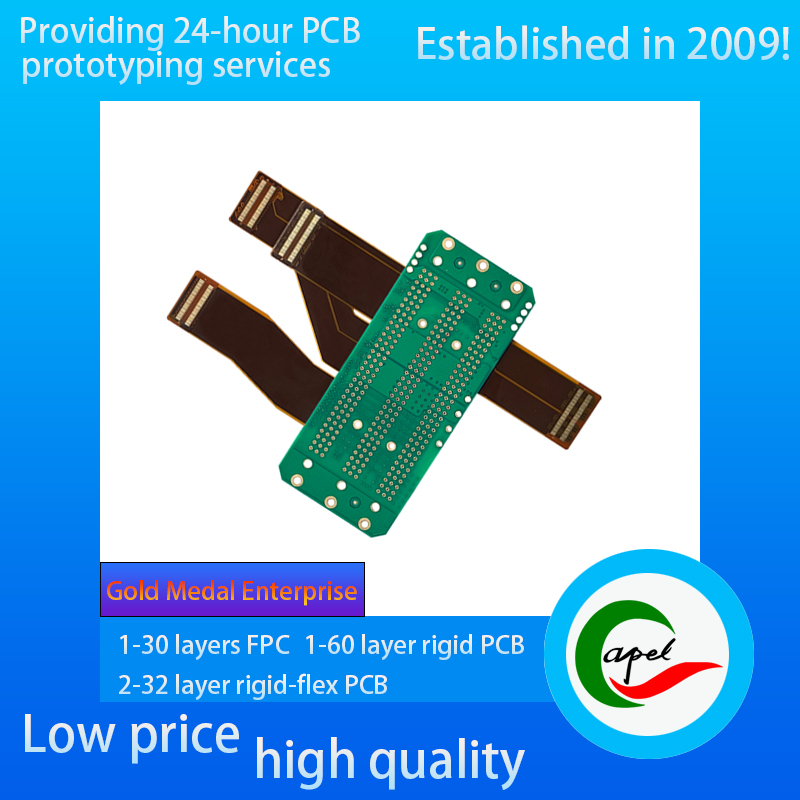

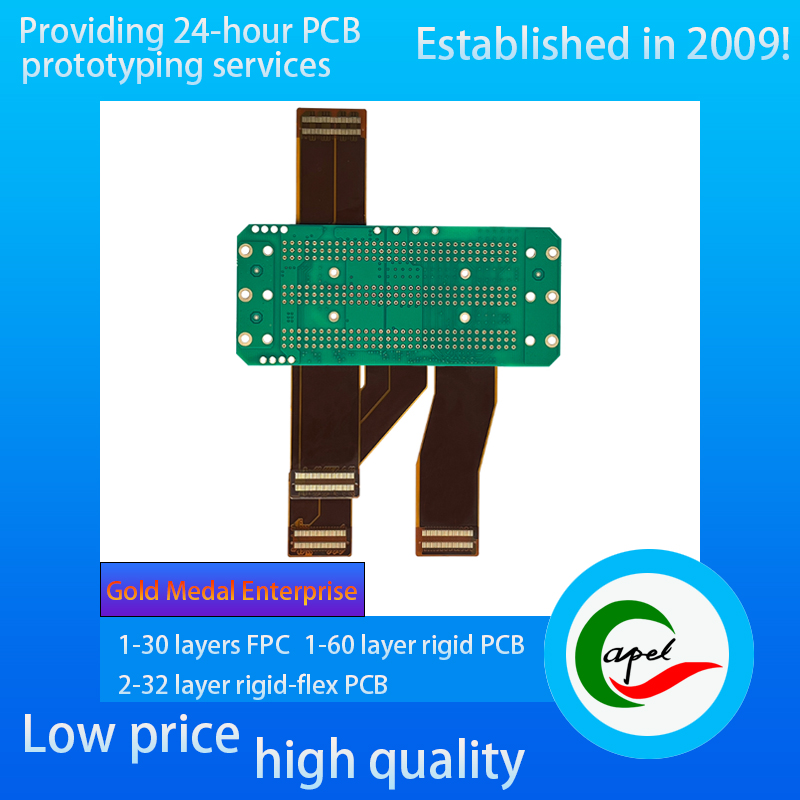

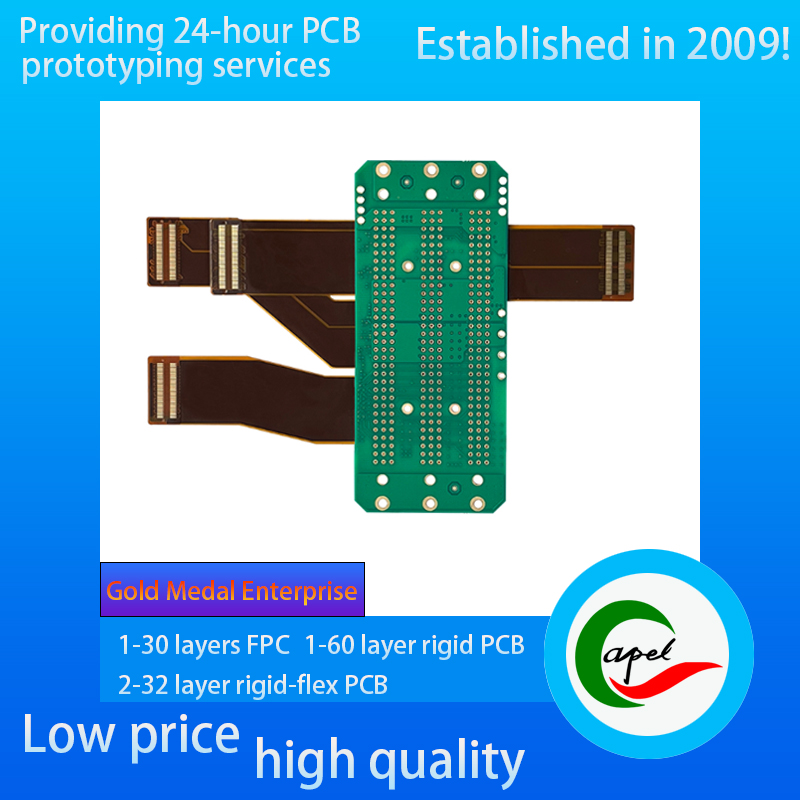

Fast 10 layer Rigid-Flex Circuit Boards Prototype Pcb Manufacturer for Industrial Control

Short Description:

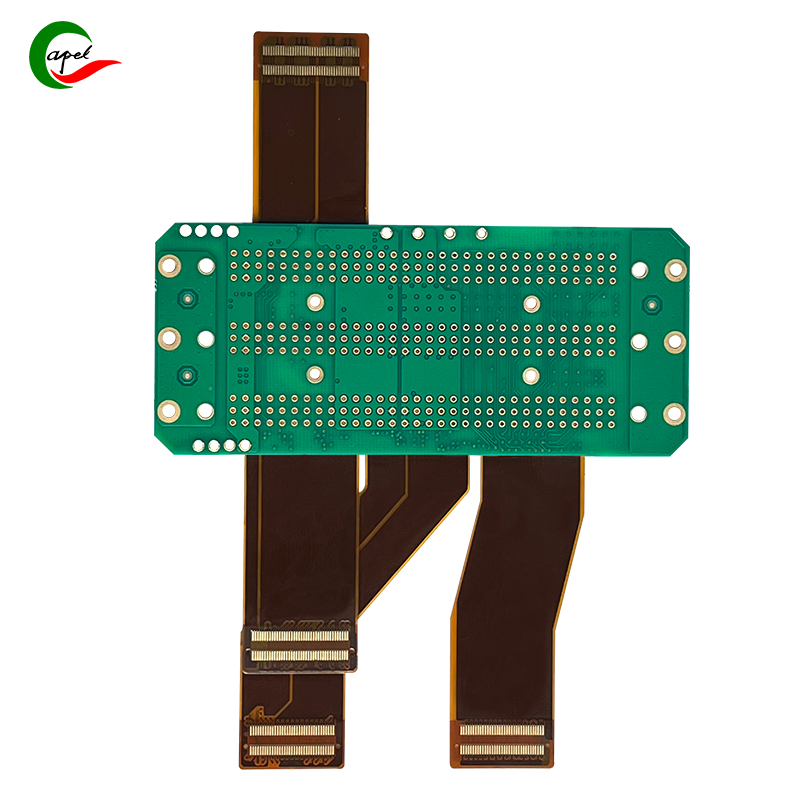

Product Type:10 layer Rigid-Flex Circuit Boards
Applications:Industrial Control Equipment
Line width and line spacing：0.12mm/0.12mm
Board thickness：1.6mm+-10%
Layers Stackup:4+2+4
Minimum Aperture:0.15mm
Copper Hole Thickness:20-25UM
Surface Treatment:ENIG 2-3uin

Impedance:85 ohms-+10%
Warpage:≦0.5%

Tolerance Accuracy:±0.1MM

Features: Flying tail structure

Capel’s Service:

Support Custom 1-30 Layer FPC Flexible PCB,2-32 Layer Rigid-Flex Circuit Boards,1-60 Layer Rigid PCB,HDI PCB,Reliable Quick Turn PCB Prototyping,Fast Turn SMT PCB Assembly

Industry We Service:

Medical Device, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…

How Capel's Fast 10 Layer Rigid-Flex Circuit Boards Prototype Pcb Manufacturer Provides Reliability Solutions for Industrial Control Equipment manufacturers
-Capel with 15 years of professional technical experience-

Introducing a fast and efficient 10-layer rigid-flex circuit board, the perfect solution for all your industrial control equipment needs. With our state-of-the-art technology and superior design, these boards deliver unparalleled performance and reliability.

Our 10-layer rigid-flex circuit boards are designed for industrial control equipment to provide optimal efficiency and accuracy. 0.12mm/0.12mm line width and spacing ensure excellent signal integrity for smooth operation even in the most demanding applications.

Our circuit boards have a thickness of 1.6mm+-10%, a layer count of 4+2+4, and a solid structure to ensure long-lasting durability and wear resistance. Minimum aperture of 0.15mm allows precise component placement for superior performance.

The copper hole thickness of 20-25UM ensures good electrical conductivity, while the ENIG 2-3uin surface treatment provides enhanced corrosion resistance and solderability. This makes our boards suitable for a variety of environments and extends the life of your equipment.

Impedance is critical to the proper operation of industrial control equipment, and our boards provide 85 ohms - +10% impedance. This ensures reliable transmission of signals, minimizing the risk of errors or failures.

Warpage is a common problem with circuit boards, but with our 10-layer rigid-flex circuit boards, you can eliminate these concerns. Our boards have less than 0.5% warpage and maintain their structural integrity even with heavy use, ensuring consistent performance.

Accuracy and precision are our top priorities, which is why our boards have a tolerance accuracy of ±0.1mm. This means your components will fit perfectly without any modifications or adjustments.

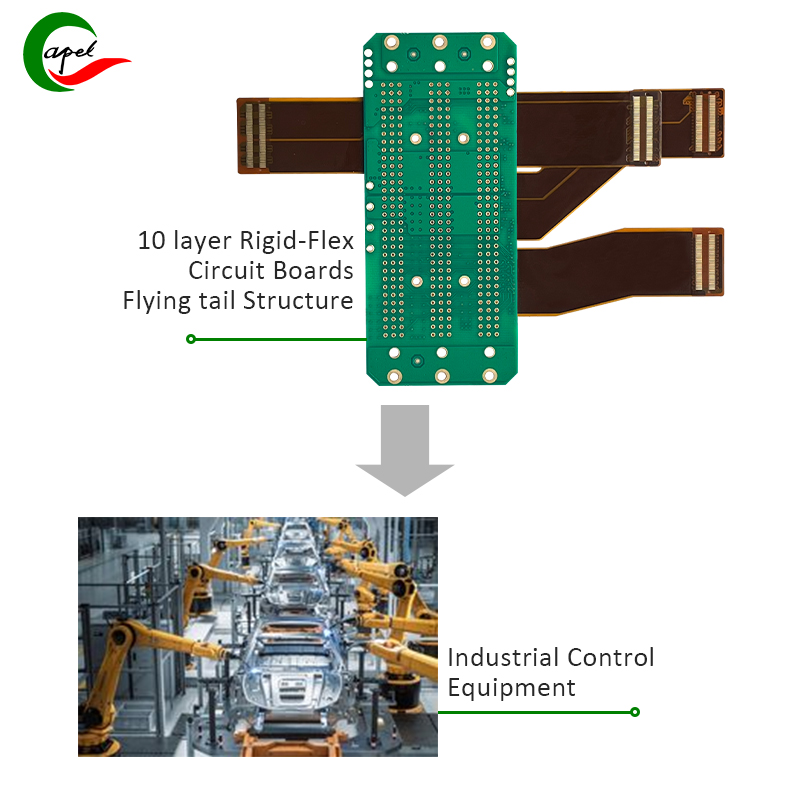

One of the outstanding features of our 10-layer rigid-flex circuit boards is the flying tail structure. This unique design facilitates installation and maintenance, reducing downtime and increasing overall productivity. Say goodbye to cumbersome wiring procedures and welcome seamless integration.

At Shenzhen Capel Technology Co., Ltd., we pride ourselves on being a trusted name in the industry, providing the highest quality products and exceptional customer service. Our rapid production capabilities allow us to deliver prototypes in a timely manner, ensuring you have the best circuit boards for your industrial control equipment right away.

With their exceptional performance, durability and unique features, our 10-layer rigid-flex circuit boards are sure to exceed your expectations. Experience the difference with our fast and efficient boards today!

Capel Flexible PCB & Rigid-Flex PCB Process Capability

Category	Process Capability	Category	Process Capability
Production Type	Single layer FPC / Double layers FPC Multi-layer FPC / Aluminum PCBs Rigid-Flex PCB	Layers Number	1-30 layers FPC 2-32 layers Rigid-FlexPCB 1-60 layers Rigid PCB HDI Boards
Max Manufacture Size	Single layer FPC 4000mm Double layers FPC 1200mm Multi-layers FPC 750mm Rigid-Flex PCB 750mm	Insulating Layer Thickness	27.5um /37.5/ 50um /65/ 75um / 100um / 125um / 150um
Board Thickness	FPC 0.06mm - 0.4mm Rigid-Flex PCB 0.25 - 6.0mm	Tolerance of PTH Size	±0.075mm
Surface Finish	Immersion Gold/Immersion Silver/Gold Plating/Tin Plating/OSP	Stiffener	FR4 / PI / PET / SUS / PSA/Alu
Semicircle Orifice Size	Min 0.4mm	Min Line Space/ width	0.045mm/0.045mm
Thickness Tolerance	±0.03mm	Impedance	50Ω-120Ω
Copper Foil Thickness	9um/12um / 18um / 35um / 70um/100um	Impedance Controlled Tolerance	±10%
Tolerance of NPTH Size	±0.05mm	The Min Flush Width	0.80mm
Min Via Hole	0.1mm	Implement Standard	GB / IPC-650 / IPC-6012 / IPC-6013II / IPC-6013III

Capel manufactures customized high-precision Rigid Flexible Circuit Board / Flexible PCB / HDI PCB with 15 years of experience with our professionalism

2 Layer Flexible PCB Boards Stackup

4 Layer Rigid-Flex PCB Stackup

8 layer HDI PCBs

Testing And Inspection Equipment

Microscope Testing

AOI Inspection

2D Testing

Impedance Testing

RoHS Testing

Flying Probe

Horizontal Tester

Bending Teste

Capel provide customers customized PCB Service with 15 years of experience

Owning 3 factories for Flexible PCB&Rigid-Flex PCB, Rigid PCB, DIP/SMT Assembly;
300+Engineers Provide technical support for Pre-sales and after-sales online;
1-30 layers FPC, 2-32 layers Rigid-FlexPCB, 1-60 layers Rigid PCB
HDI Boards, Flexible PCB (FPC), Rigid-Flex PCBs, Multilayer PCBs, Single-sided PCB, Double-Sided Circuit Boards, Hollow Boards, Rogers PCB, rf PCB, Metal Core PCB, Special Process Boards, Ceramic PCB, Aluminum PCB, SMT & PTH Assembly, PCB Prototype Service.
Provide 24-hour PCB Prototyping service,Small Batches of circuit boards will be delivered in 5-7 days, Mass Production of PCB boards will be delivered in 2-3 weeks;
Industries we service: Medical Devices, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…
Our Production Capacity:
FPC and Rigid-Flex PCBs production capacity can reach more than 150000sqm per month,
PCB production capacity can reach 80000sqm per month,
PCB Assembling capacity at 150,000,000 components per month.
Our teams of engineers and researchers are dedicated to fulfilling your requirements with precision and professionalism.
