Short Description:

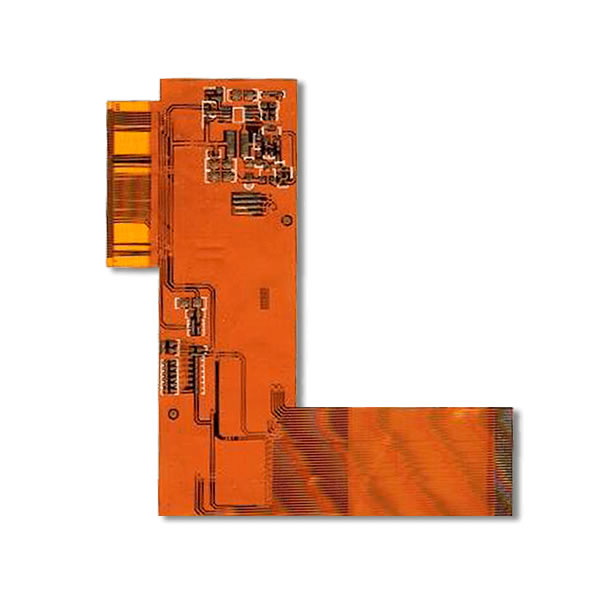

Product Type: 2 layer Flex PCB

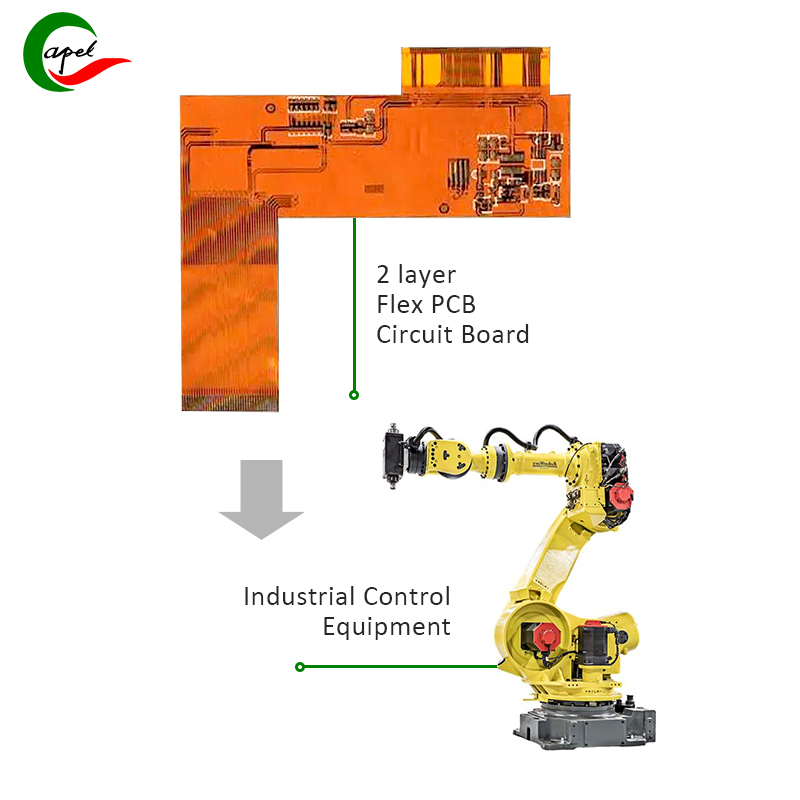

Applications: Industrial control equipment module board
Material: PI,Copper,adhesive
Line width and line spacing：0.15mm/0.2mm
Board thickness：0.22mm +/- 0.03mm
Minimum hole:0.1mm
Surface Treatment:ENIG 2-3uin

Impedance:100ohm

Tolerance tolerance:±0.1MM

Capel’s Service:

Support Custom 1-30 Layer FPC Flexible PCB,2-32 Layer Rigid-Flex Circuit Boards,1-60 Layer Rigid PCB,HDI PCB,Reliable Quick Turn PCB Prototyping,Fast Turn SMT PCB Assembly

Industry We Service:

Medical Device, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…

Class Reliability: Manufacturing Standards and Quality Assurance for Industrial Control PCB Boards
-Capel with 15 years of professional technical experience-

Introducing our latest product, a 2-layer flexible PCB designed specifically for industrial control equipment module boards. Made from high-quality materials such as PI, copper, and adhesives, this PCB is durable and provides reliable performance even in the harshest industrial environments.

The line width and line spacing of this PCB are 0.15mm/0.2mm, ensuring accurate and efficient signal transmission. The PCB's board thickness is 0.22mm +/- 0.03mm, providing the perfect balance between flexibility and durability. The 0.1mm minimum hole diameter enables complex designs and compact layouts, while the ENIG 2-3uin surface treatment provides excellent corrosion resistance and solderability.

One of the key features of this PCB is its 100 ohm impedance, which is critical to maintaining signal integrity and minimizing signal loss in industrial control applications. With a tolerance of ±0.1mm, you can trust that this PCB will always meet your design s

At our company, we pride ourselves on using the latest design techniques to ensure the best performance of our industrial control PCB boards. Our team of experts is dedicated to continuously improving and optimizing our PCBs to meet the ever-changing needs of the industrial control industry.

Whether you are designing a new industrial control system or upgrading an existing one, our 2-layer flexible PCBs are the perfect choice for a reliable, high-performance PCB solution. Trust our expertise and innovative approach to deliver the quality and performance you expect from industrial control equipment.

In summary, our 2-layer flexible PCBs are designed to meet the demanding requirements of industrial control equipment module boards. With high-quality materials, precise specifications, and advanced design technology, this PCB is ideal for any industrial control application. Experience the best performance guaranteed with our latest industrial control PCB boards.

Capel Flexible PCB & Rigid-Flex PCB Process Capability

Category	Process Capability	Category	Process Capability
Production Type	Single layer FPC / Double layers FPC Multi-layer FPC / Aluminum PCBs Rigid-Flex PCB	Layers Number	1-30 layers FPC 2-32 layers Rigid-FlexPCB 1-60 layers Rigid PCB HDI Boards
Max Manufacture Size	Single layer FPC 4000mm Double layers FPC 1200mm Multi-layers FPC 750mm Rigid-Flex PCB 750mm	Insulating Layer Thickness	27.5um /37.5/ 50um /65/ 75um / 100um / 125um / 150um
Board Thickness	FPC 0.06mm - 0.4mm Rigid-Flex PCB 0.25 - 6.0mm	Tolerance of PTH Size	±0.075mm
Surface Finish	Immersion Gold/Immersion Silver/Gold Plating/Tin Plating/OSP	Stiffener	FR4 / PI / PET / SUS / PSA/Alu
Semicircle Orifice Size	Min 0.4mm	Min Line Space/ width	0.045mm/0.045mm
Thickness Tolerance	±0.03mm	Impedance	50Ω-120Ω
Copper Foil Thickness	9um/12um / 18um / 35um / 70um/100um	Impedance Controlled Tolerance	±10%
Tolerance of NPTH Size	±0.05mm	The Min Flush Width	0.80mm
Min Via Hole	0.1mm	Implement Standard	GB / IPC-650 / IPC-6012 / IPC-6013II / IPC-6013III

Capel manufactures customized high-precision Rigid Flexible Circuit Board / Flexible PCB / HDI PCB with 15 years of experience with our professionalism

2 Layer Flexible PCB Boards Stackup

4 Layer Rigid-Flex PCB Stackup

8 layer HDI PCBs

Testing And Inspection Equipment

Microscope Testing

AOI Inspection

2D Testing

Impedance Testing

RoHS Testing

Flying Probe

Horizontal Tester

Bending Teste

Capel provide customers customized PCB Service with 15 years of experience

Owning 3 factories for Flexible PCB&Rigid-Flex PCB, Rigid PCB, DIP/SMT Assembly;
300+Engineers Provide technical support for Pre-sales and after-sales online;
1-30 layers FPC, 2-32 layers Rigid-FlexPCB, 1-60 layers Rigid PCB
HDI Boards, Flexible PCB (FPC), Rigid-Flex PCBs, Multilayer PCBs, Single-sided PCB, Double-Sided Circuit Boards, Hollow Boards, Rogers PCB, rf PCB, Metal Core PCB, Special Process Boards, Ceramic PCB, Aluminum PCB, SMT & PTH Assembly, PCB Prototype Service.
Provide 24-hour PCB Prototyping service,Small Batches of circuit boards will be delivered in 5-7 days, Mass Production of PCB boards will be delivered in 2-3 weeks;
Industries we service: Medical Devices, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…
Our Production Capacity:
FPC and Rigid-Flex PCBs production capacity can reach more than 150000sqm per month,
PCB production capacity can reach 80000sqm per month,
PCB Assembling capacity at 150,000,000 components per month.
Our teams of engineers and researchers are dedicated to fulfilling your requirements with precision and professionalism.
