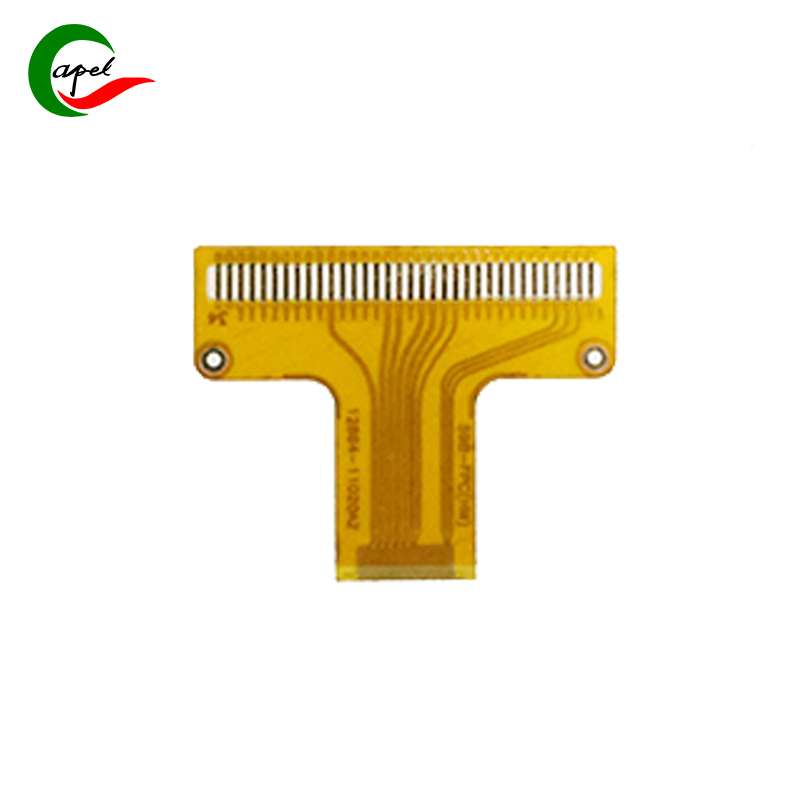

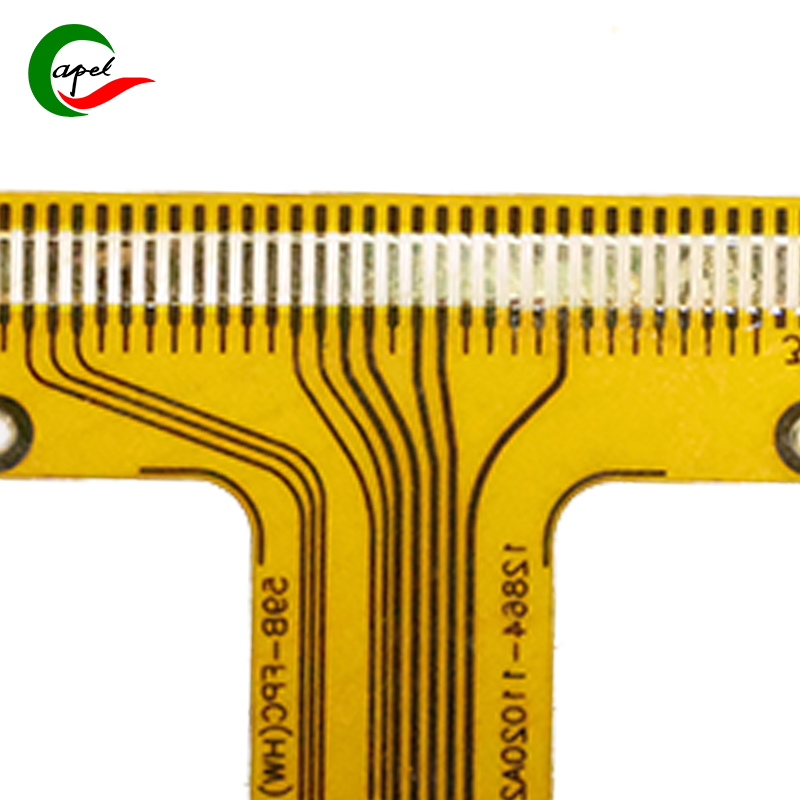

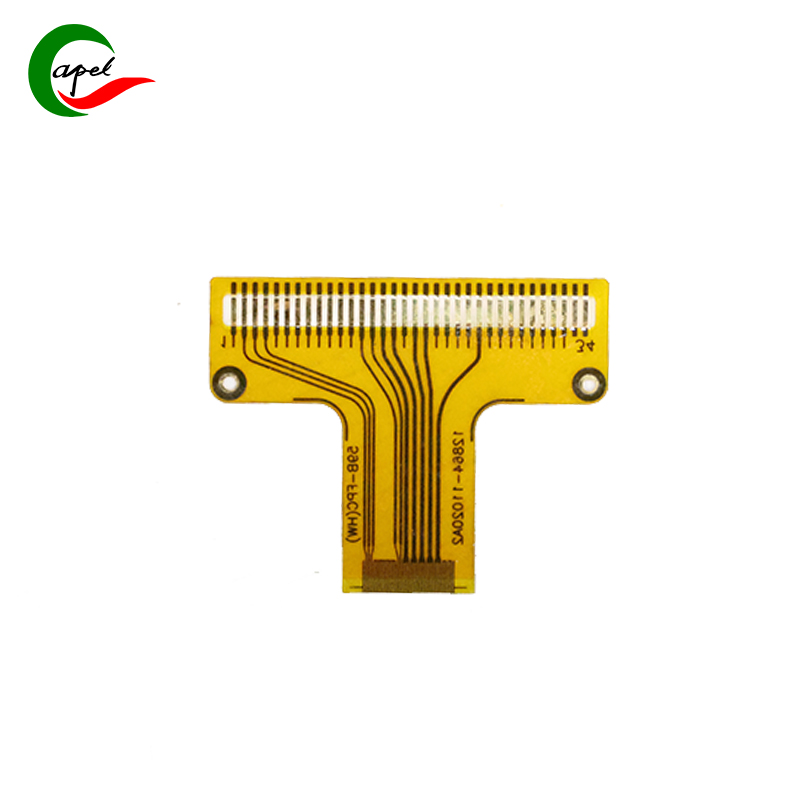

Kaboer’s Double-Sided Flexible PCB for Displays is tailor-made for core display components such as smartphone screens, smart wearable display modules, automotive infotainment screens, portable medical display units, and IoT smart terminal displays. It precisely meets the core demands of display scenarios—ultra-thin flexible adaptation, stable high-definition signal transmission, compact integration, and long-term durability. With the robust configuration of "1mil immersion gold finish + refined wiring", it stands as a cost-effective preferred solution for the display industry, empowering brands to create high-quality display products with clear imaging, slim profiles, and stable operation!
Featuring a double-sided flexible core structure, it perfectly balances the space constraints and operational reliability of display devices: at only 0.13mm thick, it is extremely slim with exceptional bending resilience, seamlessly fitting complex display layouts such as curved screens, narrow bezels, and foldable structures. It adapts to diverse needs including irregular designs of smart wearables, curved installation of automotive displays, and compact layouts of portable terminals—completely solving the pain point of traditional rigid PCBs being unable to fit flexible display forms. With precise dimensions of 23.8*30mm, the compact layout perfectly suits the installation needs of small-to-medium display modules without redundant space; the 0.18/0.1mm fine line width/spacing and optimized 0.5mm drill size enable high-density signal channel integration and reliable solder joint connections, accommodating stable transmission of high-definition display signals (e.g., pixel data, touch commands) in limited space and providing solid circuit support for high resolution and high refresh rates of display panels.
Key advantages directly address display scenario pain points, demonstrating display-grade robustness: ① Equipped with 1mil immersion gold finish, it offers excellent conductivity, oxidation resistance, and wear resistance. Low contact resistance ensures high-speed, distortion-free transmission of high-definition display signals and touch control commands, eliminating image stuttering and touch lag caused by signal attenuation. It also extends product service life, adapting to long-term use in consumer electronics, automotive, medical, and other scenarios; ② Double-sided wiring design significantly improves space utilization and transmission efficiency, supporting flexible division of signal and control channels to avoid crosstalk. It meets the composite needs of "high-definition display + precise touch control", while the immersion gold surface enhances soldering reliability, reducing module assembly defect rates and aligning with mass production rhythms; ③ The flexible substrate features excellent fatigue resistance and wide temperature adaptability (-40℃ to 85℃), withstanding long-term bending and environmental temperature changes. It has strong vibration resistance, adapting to harsh scenarios such as automotive jolts and frequent use of portable devices, reducing after-sales failure risks.
Backed by Kaboer’s profound technical accumulation in flexible PCBs and strict quality control system, this double-sided flexible PCB for displays can be customized for circuit layout, interface types, and contours based on display module resolution, size, and installation method. Paired with rapid prototyping and efficient SMT assembly services, it helps customers shorten R&D cycles and accelerate time-to-market. Whether for ultra-slim smart wearable displays, reliable automotive screens, or high-precision medical display units, it serves as the "signal hub" of display modules with core advantages of "flexible adaptation, precise signal transmission, and stable durability", helping brands enhance product competitiveness and seize display market share!
