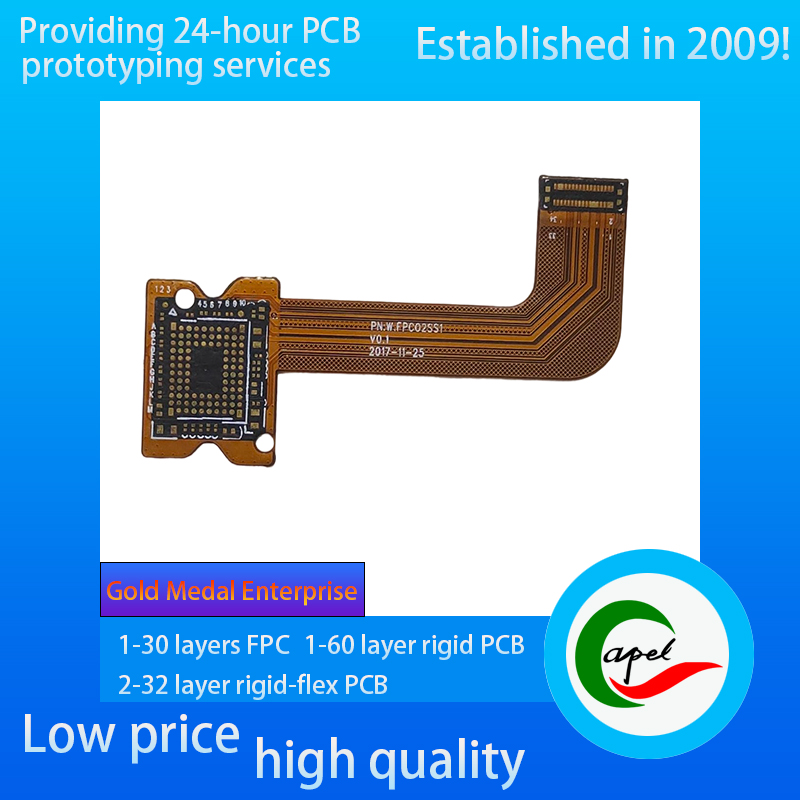

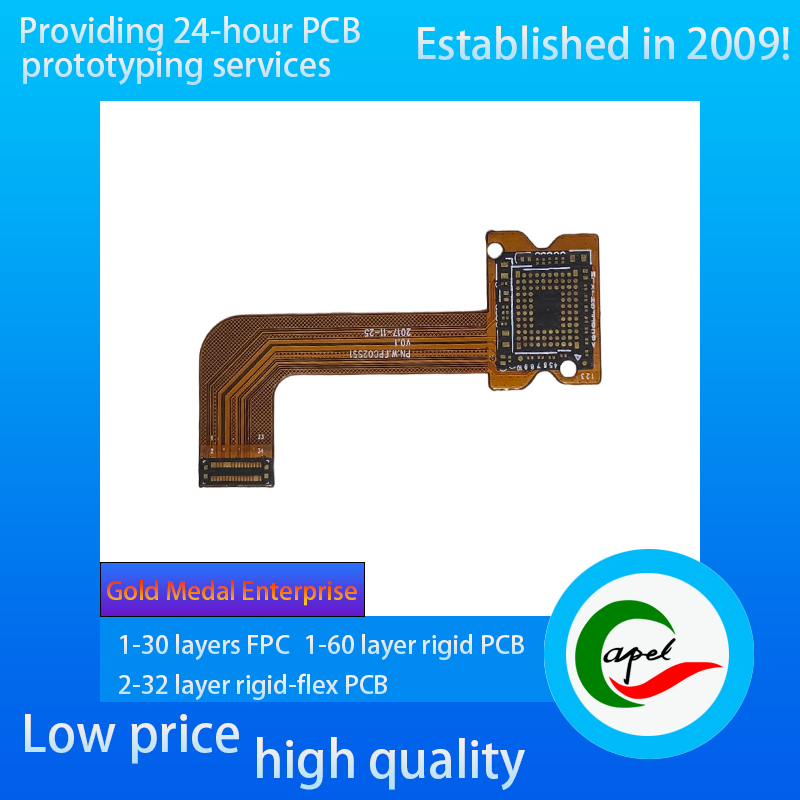

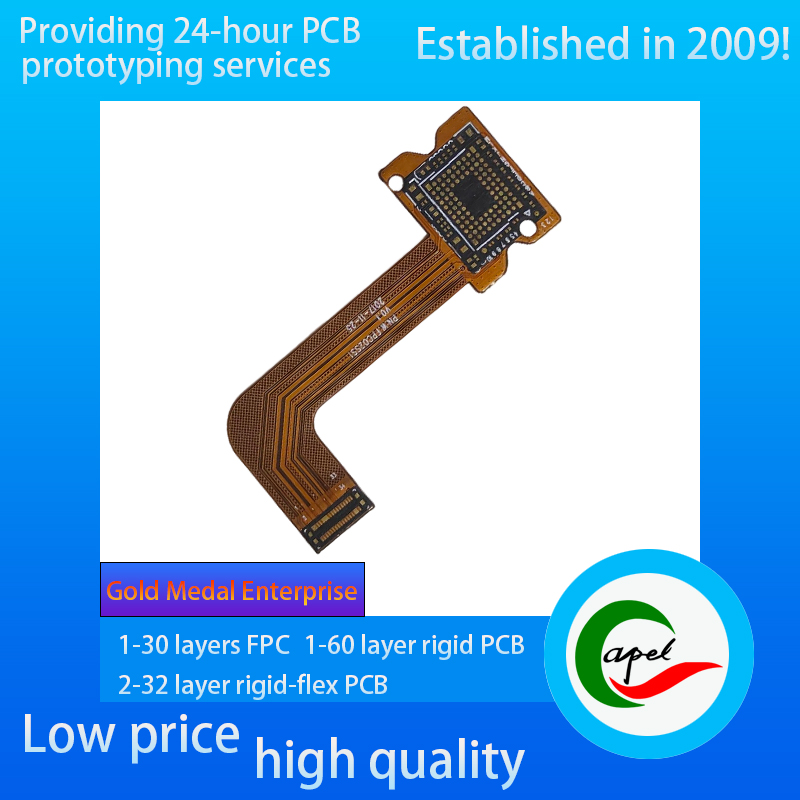

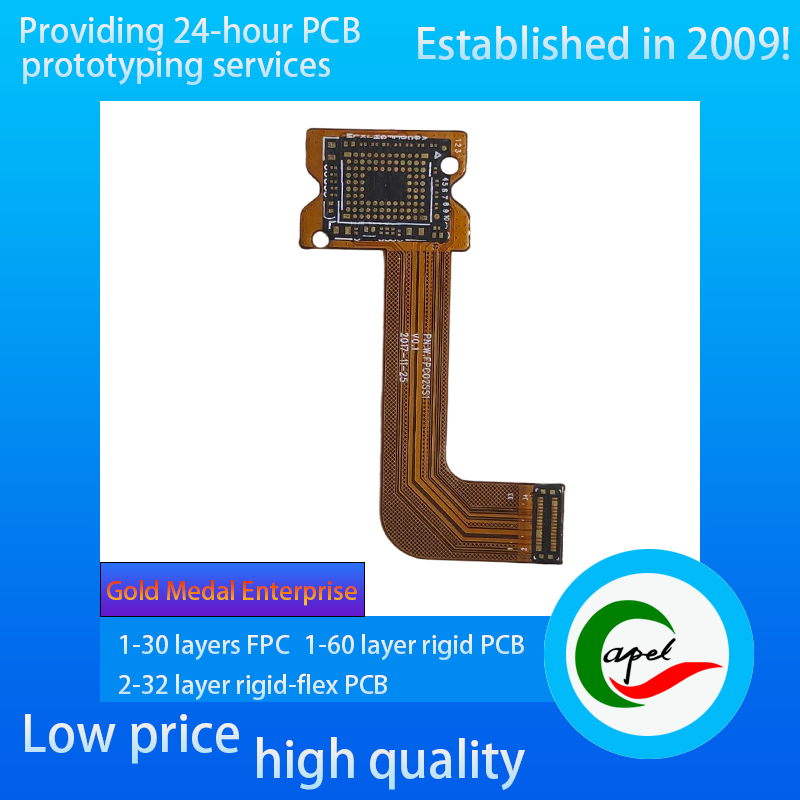

Drone BGA Camera Double-Sided Flexible PCB

Brief Introduction:

Type: Double-sided board

Material: Double-sided adhesive laminated, double-sided yellow cover film

Number of Layers: 2 layers

Board Thickness: 0.2mm

Surface Finish: Chemically Gold 3μm

Capel Services:

Custom FPC Flexible PCBs (1-30 layers), Rigid-Flex PCBs (2-32 layers), Rigid PCBs (1-60 layers), Reliable Rapid Turn PCB Prototyping, Fast SMT PCB Assembly

Industries We Serve:

Medical devices, IoT, TUT, drones, aviation, automotive, telecommunications, consumer electronics, military, aerospace, industrial control, artificial intelligence, electric vehicles, and more...

If you have related needs, please click the button below to send us an email.

Capel’s double-sided flexible PCB for drone BGA cameras is a core signal transmission component tailored for UAV (unmanned aerial vehicle) aerial imaging systems, featuring a precision structure and reliable performance to ensure high-definition and stable high-altitude shooting. Adopting a 2-layer double-sided board design with a precisely controlled thickness of 0.2mm, it combines thin flexibility with structural stability—perfectly fitting into the compact installation space inside the drone body and conforming to complex wiring paths between the BGA camera module and flight control system. It adds no extra weight to the drone while withstanding high-frequency vibrations and airflow impacts during flight.

In terms of core materials and protection design, it uses double-sided adhesive-clad rolled substrate. The rolled copper foil has a regular crystal structure, offering excellent conductivity and extremely low signal transmission loss, which accurately carries multi-channel high-frequency signals of the BGA camera such as high-definition image data, focusing control and anti-shake commands, providing stable circuit support for the clarity and fluency of aerial images. The surface is covered with double-sided yellow coverlay, providing strong insulation and wear resistance to resist dust, temperature changes and slight moisture erosion during high-altitude flight, extending the PCB’s service life. The 3 microinches (approximately 0.0762μm) immersion gold surface treatment creates a uniform and thick gold layer, significantly improving contact stability between pads and BGA chips/connectors, reducing contact resistance. Even in complex high-altitude environments or long-duration aerial photography scenarios, it ensures immediate and accurate signal transmission, minimizing issues like image freezing and blurring.

Capel Flexible PCB & Rigid-Flex PCB Process Capability

Category	Process Capability	Category	Process Capability
Production Type	Single layer FPC / Double layers FPC Multi-layer FPC / Aluminum PCBs Rigid-Flex PCB	Layers Number	1-30 layers FPC 2-32 layers Rigid-FlexPCB 1-60 layers Rigid PCB HDI Boards
Max Manufacture Size	Single layer FPC 4000mm Double layers FPC 1200mm Multi-layers FPC 750mm Rigid-Flex PCB 750mm	Insulating Layer Thickness	27.5um /37.5/ 50um /65/ 75um / 100um / 125um / 150um
Board Thickness	FPC 0.06mm - 0.4mm Rigid-Flex PCB 0.25 - 6.0mm	Tolerance of PTH Size	±0.075mm
Surface Finish	Immersion Gold/Immersion Silver/Gold Plating/Tin Plating/OSP	Stiffener	FR4 / PI / PET / SUS / PSA/Alu
Semicircle Orifice Size	Min 0.4mm	Min Line Space/ width	0.045mm/0.045mm
Thickness Tolerance	±0.03mm	Impedance	50Ω-120Ω
Copper Foil Thickness	9um/12um / 18um / 35um / 70um/100um	Impedance Controlled Tolerance	±10%
Tolerance of NPTH Size	±0.05mm	The Min Flush Width	0.80mm
Min Via Hole	0.1mm	Implement Standard	GB / IPC-650 / IPC-6012 / IPC-6013II / IPC-6013III

Capel manufactures customized high-precision Rigid Flexible Circuit Board / Flexible PCB / HDI PCB with 15 years of experience with our professionalism

2 Layer Flexible PCB Boards Stackup

4 Layer Rigid-Flex PCB Stackup

8 layer HDI PCBs

Testing And Inspection Equipment

Microscope Testing

AOI Inspection

2D Testing

Impedance Testing

RoHS Testing

Flying Probe

Horizontal Tester

Bending Teste

Capel provide customers customized PCB Service with 15 years of experience

Owning 3 factories for Flexible PCB&Rigid-Flex PCB, Rigid PCB, DIP/SMT Assembly;
300+Engineers Provide technical support for Pre-sales and after-sales online;
1-30 layers FPC, 2-32 layers Rigid-FlexPCB, 1-60 layers Rigid PCB
HDI Boards, Flexible PCB (FPC), Rigid-Flex PCBs, Multilayer PCBs, Single-sided PCB, Double-Sided Circuit Boards, Hollow Boards, Rogers PCB, rf PCB, Metal Core PCB, Special Process Boards, Ceramic PCB, Aluminum PCB, SMT & PTH Assembly, PCB Prototype Service.
Provide 24-hour PCB Prototyping service,Small Batches of circuit boards will be delivered in 5-7 days, Mass Production of PCB boards will be delivered in 2-3 weeks;
Industries we service: Medical Devices, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…
Our Production Capacity:
FPC and Rigid-Flex PCBs production capacity can reach more than 150000sqm per month,
PCB production capacity can reach 80000sqm per month,
PCB Assembling capacity at 150,000,000 components per month.
Our teams of engineers and researchers are dedicated to fulfilling your requirements with precision and professionalism.
