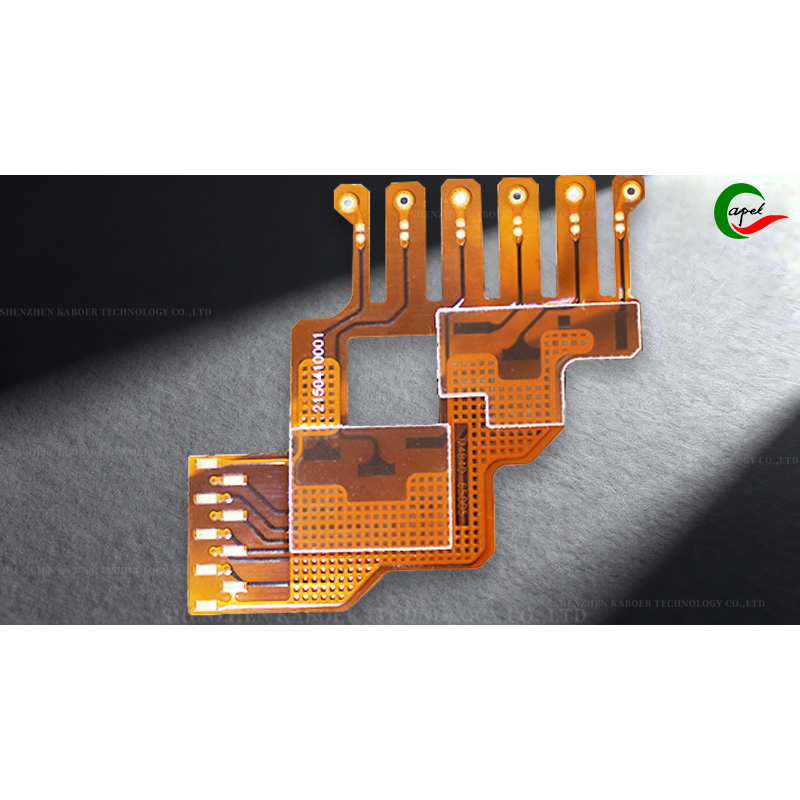

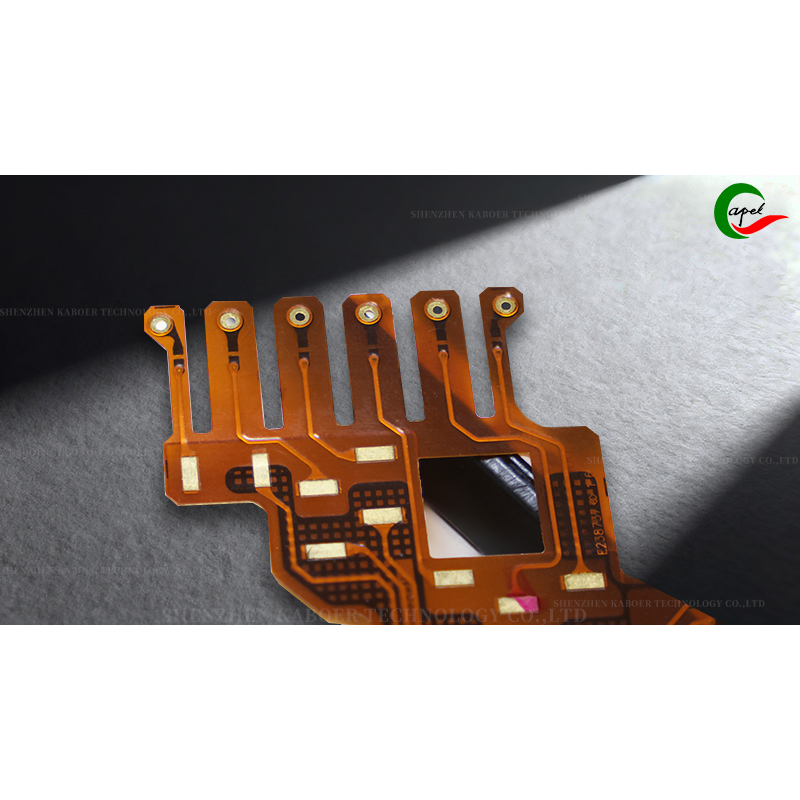

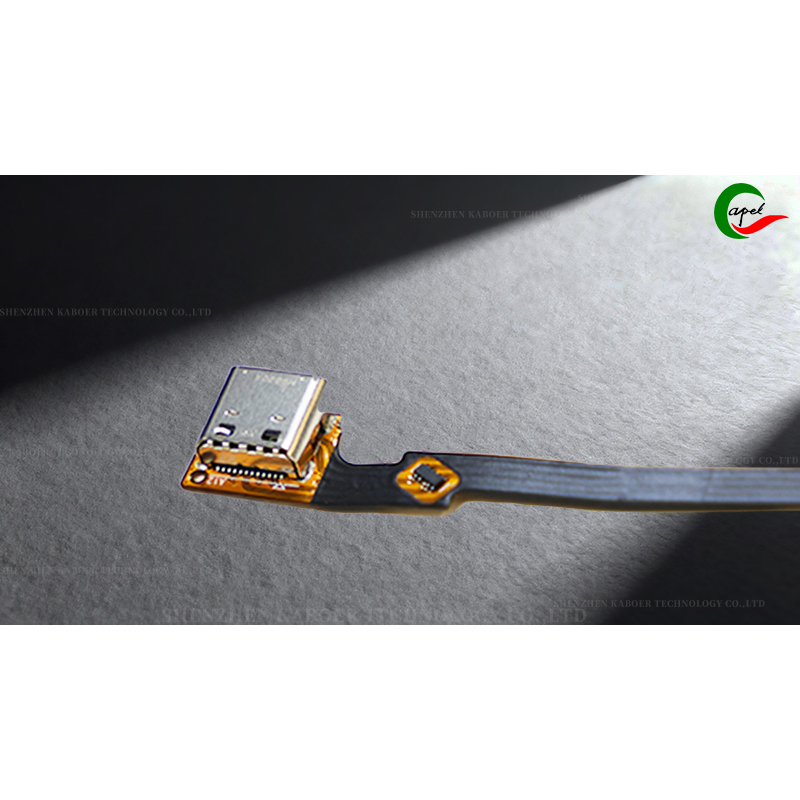

Medical Device Double-Sided Flexible PCB

Brief Introduction:

Type: Double-sided board

Surface Finish: Immersion gold 1 mil

Number of Layers: 2 layers

Board Thickness: 0.28mm

Line Width/Spacing: 0.6mm, 0.5mm

Caboer Services:

Custom 1-30 layer FPC flexible PCBs, 2-32 layer rigid-flex PCBs, 1-60 layer rigid PCBs, reliable rapid turnaround PCB prototyping, fast SMT PCB assembly

Industries We Serve:

Medical Devices, IoT, TUT, Drones, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, Electric Vehicles, and more...

If you have related needs, please click the button below to send us an email.

Caboer’s Double-Sided Flexible PCB for Medical Devices is a core circuit component tailored for various precision medical equipment (such as vital sign monitors, diagnostic analyzers, portable therapeutic devices, and medical sensor modules). It achieves a perfect balance of medical-grade reliability and structural stability to ensure accurate diagnosis, treatment, and safe operation in medical scenarios. Adopting a 2-layer double-sided board design with a precisely controlled thickness of 0.28mm, it combines flexible adaptability with solid structural strength, enabling seamless fit to complex component layouts, narrow installation spaces, and curved structures inside medical devices. It occupies no redundant volume while withstanding slight bending and mechanical stresses during equipment assembly, movement, and daily use, preventing circuit loosening or damage, and aligning with the integrated and portable design trends of medical devices.

In terms of technical parameters and performance guarantees, the product adopts a precision wiring scheme with 0.6mm trace width and 0.5mm spacing. This not only enables high-density circuit integration to simultaneously carry physiological signals (e.g., heart rate, blood pressure data), control commands, and power transmission of medical devices but also ensures excellent insulation performance through reasonable line spacing, effectively avoiding signal crosstalk and short-circuit risks, and guaranteeing the accuracy of data transmission—which is crucial for the precision of medical diagnosis. Equipped with 1 microinch (approximately 0.0254μm) immersion gold surface finish, the uniform and dense gold layer offers excellent oxidation resistance, wear resistance, and contact stability, effectively reducing contact resistance and avoiding signal attenuation or poor contact caused by disinfection wiping and humidity changes in the medical environment. The product uses medical-grade eco-friendly substrates free of harmful substances, complying with medical device biocompatibility standards such as ISO 10993, and is suitable for medical scenarios involving indirect contact with the human body. Additionally, the substrate and cover layer provide superior resistance to medical disinfection, withstanding repeated wiping with common medical disinfectants (e.g., alcohol, glutaraldehyde, hydrogen peroxide) without aging or cracking, extending the service life of the PCB and medical equipment, and ensuring reliable long-term high-frequency operation in medical settings.

As a professional PCB solution provider, Caboer offers comprehensive customization capabilities for medical-grade PCBs: personalized development of 1-30 layer FPC flexible PCBs, 2-32 layer rigid-flex PCBs, and 1-60 layer rigid PCBs. Complemented by reliable rapid-turnaround PCB prototyping and fast SMT PCB assembly services, we help medical device clients accelerate product R&D and mass production. Our services span diverse industries, including Medical Devices, IoT, TUT, Drones, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, Electric Vehicles, and more. With rigorous medical-grade quality control, flexible customization solutions, and efficient delivery capabilities, we have become a trusted partner in the medical electronics sector.

If you have customization needs for medical device PCBs or other field-related PCBs, please click the button below to send us an email. Caboer will provide you with a tailored solution.

Capel Flexible PCB & Rigid-Flex PCB Process Capability

Category	Process Capability	Category	Process Capability
Production Type	Single layer FPC / Double layers FPC Multi-layer FPC / Aluminum PCBs Rigid-Flex PCB	Layers Number	1-30 layers FPC 2-32 layers Rigid-FlexPCB 1-60 layers Rigid PCB HDI Boards
Max Manufacture Size	Single layer FPC 4000mm Double layers FPC 1200mm Multi-layers FPC 750mm Rigid-Flex PCB 750mm	Insulating Layer Thickness	27.5um /37.5/ 50um /65/ 75um / 100um / 125um / 150um
Board Thickness	FPC 0.06mm - 0.4mm Rigid-Flex PCB 0.25 - 6.0mm	Tolerance of PTH Size	±0.075mm
Surface Finish	Immersion Gold/Immersion Silver/Gold Plating/Tin Plating/OSP	Stiffener	FR4 / PI / PET / SUS / PSA/Alu
Semicircle Orifice Size	Min 0.4mm	Min Line Space/ width	0.045mm/0.045mm
Thickness Tolerance	±0.03mm	Impedance	50Ω-120Ω
Copper Foil Thickness	9um/12um / 18um / 35um / 70um/100um	Impedance Controlled Tolerance	±10%
Tolerance of NPTH Size	±0.05mm	The Min Flush Width	0.80mm
Min Via Hole	0.1mm	Implement Standard	GB / IPC-650 / IPC-6012 / IPC-6013II / IPC-6013III

Capel manufactures customized high-precision Rigid Flexible Circuit Board / Flexible PCB / HDI PCB with 15 years of experience with our professionalism

2 Layer Flexible PCB Boards Stackup

4 Layer Rigid-Flex PCB Stackup

8 layer HDI PCBs

Testing And Inspection Equipment

Microscope Testing

AOI Inspection

2D Testing

Impedance Testing

RoHS Testing

Flying Probe

Horizontal Tester

Bending Teste

Capel provide customers customized PCB Service with 15 years of experience

Owning 3 factories for Flexible PCB&Rigid-Flex PCB, Rigid PCB, DIP/SMT Assembly;
300+Engineers Provide technical support for Pre-sales and after-sales online;
1-30 layers FPC, 2-32 layers Rigid-FlexPCB, 1-60 layers Rigid PCB
HDI Boards, Flexible PCB (FPC), Rigid-Flex PCBs, Multilayer PCBs, Single-sided PCB, Double-Sided Circuit Boards, Hollow Boards, Rogers PCB, rf PCB, Metal Core PCB, Special Process Boards, Ceramic PCB, Aluminum PCB, SMT & PTH Assembly, PCB Prototype Service.
Provide 24-hour PCB Prototyping service,Small Batches of circuit boards will be delivered in 5-7 days, Mass Production of PCB boards will be delivered in 2-3 weeks;
Industries we service: Medical Devices, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…
Our Production Capacity:
FPC and Rigid-Flex PCBs production capacity can reach more than 150000sqm per month,
PCB production capacity can reach 80000sqm per month,
PCB Assembling capacity at 150,000,000 components per month.
Our teams of engineers and researchers are dedicated to fulfilling your requirements with precision and professionalism.
