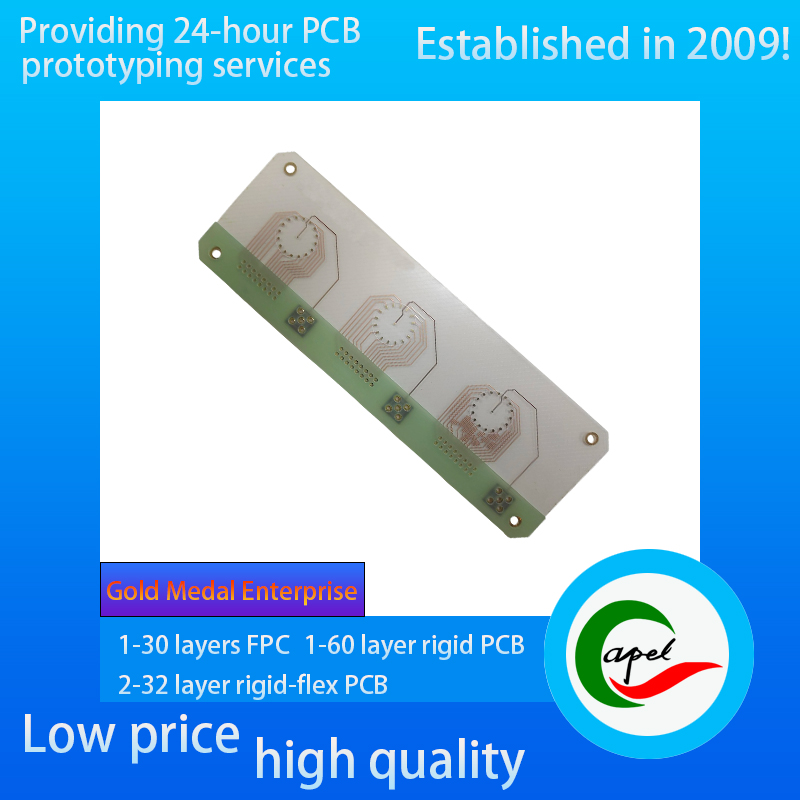

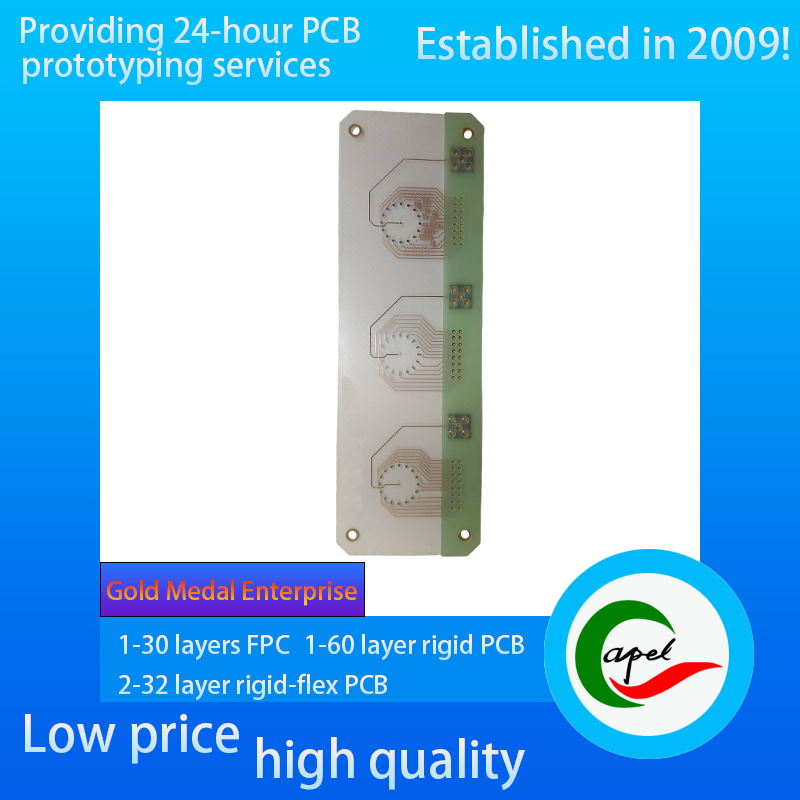

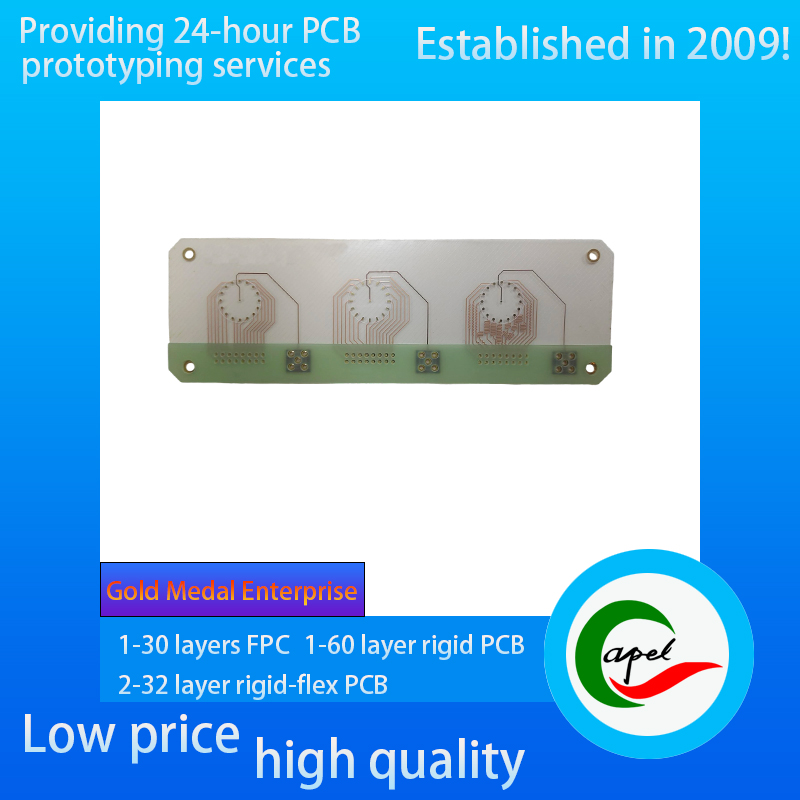

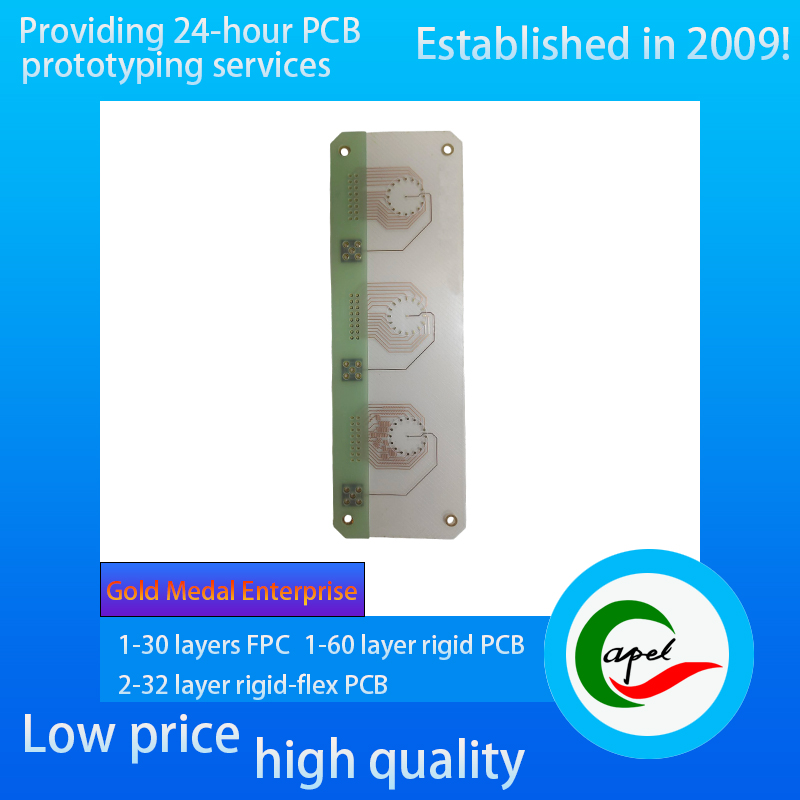

Children's Toy Double-Sided Flexible PCB

Brief Introduction:

Type: Double-sided board

Material: Double-sided PET with adhesive laminated 35/25, double-sided transparent cover film 50μm

Number of Layers: 2 layers

Board Thickness: 0.23mm

Surface Finish: Chemically Gold Plated 2μm

Capel Services:

Custom FPC Flexible PCBs (1-30 layers), Rigid-Flex PCBs (2-32 layers), Rigid PCBs (1-60 layers), Reliable Rapid Turn PCB Prototyping, Fast SMT PCB Assembly

Industries We Serve:

Medical devices, IoT, TUT, drones, aviation, automotive, telecommunications, consumer electronics, military, aerospace, industrial control, artificial intelligence, electric vehicles, and more...

If you have related needs, please click the button below to send us an email.

Capel’s double-sided flexible PCB for children’s toys is a core circuit component tailored for various electric toys (such as smart building blocks, sound-and-light dolls, and remote-controlled cars). It prioritizes children’s safety while balancing durability and design adaptability. Adopting a 2-layer double-sided board design with a precisely controlled thickness of 0.23mm, it combines thin flexibility with moderate structural strength, allowing it to fit flexibly into complex internal shapes of toys (such as curved casings and movable parts). It adapts to the miniaturized and interesting design needs of toys, while avoiding collision risks caused by hard and brittle materials for children.

In terms of core materials and safety protection, it uses double-sided PET adhesive-clad rolled 35/25 substrate. The PET substrate is non-toxic and environmentally friendly, complying with children’s toy safety standards (such as GB 6675). The 35μm rolled copper foil has stable conductivity, which can accurately transmit low-power signals of toys such as sound-and-light control and motion drive, ensuring stable toy functions. The surface is covered with 50μm double-sided transparent coverlay, which not only has good insulation and wear resistance but also fits the light display design of toys (such as glowing eyes and light strip decorations) with its transparent feature. Meanwhile, it can resist pulling, slight drops, and sweat erosion during children’s play, extending the toy’s service life. The 2 microinches (approximately 0.0508μm) immersion gold surface treatment creates a uniform and dense gold layer, improving the contact stability between pads and toy components (such as LEDs and micro-motors), and reducing the risk of functional failures caused by poor contact. Even in scenarios where children play frequently, it can ensure the safe and reliable operation of toys.

Capel Flexible PCB & Rigid-Flex PCB Process Capability

Category	Process Capability	Category	Process Capability
Production Type	Single layer FPC / Double layers FPC Multi-layer FPC / Aluminum PCBs Rigid-Flex PCB	Layers Number	1-30 layers FPC 2-32 layers Rigid-FlexPCB 1-60 layers Rigid PCB HDI Boards
Max Manufacture Size	Single layer FPC 4000mm Double layers FPC 1200mm Multi-layers FPC 750mm Rigid-Flex PCB 750mm	Insulating Layer Thickness	27.5um /37.5/ 50um /65/ 75um / 100um / 125um / 150um
Board Thickness	FPC 0.06mm - 0.4mm Rigid-Flex PCB 0.25 - 6.0mm	Tolerance of PTH Size	±0.075mm
Surface Finish	Immersion Gold/Immersion Silver/Gold Plating/Tin Plating/OSP	Stiffener	FR4 / PI / PET / SUS / PSA/Alu
Semicircle Orifice Size	Min 0.4mm	Min Line Space/ width	0.045mm/0.045mm
Thickness Tolerance	±0.03mm	Impedance	50Ω-120Ω
Copper Foil Thickness	9um/12um / 18um / 35um / 70um/100um	Impedance Controlled Tolerance	±10%
Tolerance of NPTH Size	±0.05mm	The Min Flush Width	0.80mm
Min Via Hole	0.1mm	Implement Standard	GB / IPC-650 / IPC-6012 / IPC-6013II / IPC-6013III

Capel manufactures customized high-precision Rigid Flexible Circuit Board / Flexible PCB / HDI PCB with 15 years of experience with our professionalism

2 Layer Flexible PCB Boards Stackup

4 Layer Rigid-Flex PCB Stackup

8 layer HDI PCBs

Testing And Inspection Equipment

Microscope Testing

AOI Inspection

2D Testing

Impedance Testing

RoHS Testing

Flying Probe

Horizontal Tester

Bending Teste

Capel provide customers customized PCB Service with 15 years of experience

Owning 3 factories for Flexible PCB&Rigid-Flex PCB, Rigid PCB, DIP/SMT Assembly;
300+Engineers Provide technical support for Pre-sales and after-sales online;
1-30 layers FPC, 2-32 layers Rigid-FlexPCB, 1-60 layers Rigid PCB
HDI Boards, Flexible PCB (FPC), Rigid-Flex PCBs, Multilayer PCBs, Single-sided PCB, Double-Sided Circuit Boards, Hollow Boards, Rogers PCB, rf PCB, Metal Core PCB, Special Process Boards, Ceramic PCB, Aluminum PCB, SMT & PTH Assembly, PCB Prototype Service.
Provide 24-hour PCB Prototyping service,Small Batches of circuit boards will be delivered in 5-7 days, Mass Production of PCB boards will be delivered in 2-3 weeks;
Industries we service: Medical Devices, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…
Our Production Capacity:
FPC and Rigid-Flex PCBs production capacity can reach more than 150000sqm per month,
PCB production capacity can reach 80000sqm per month,
PCB Assembling capacity at 150,000,000 components per month.
Our teams of engineers and researchers are dedicated to fulfilling your requirements with precision and professionalism.
