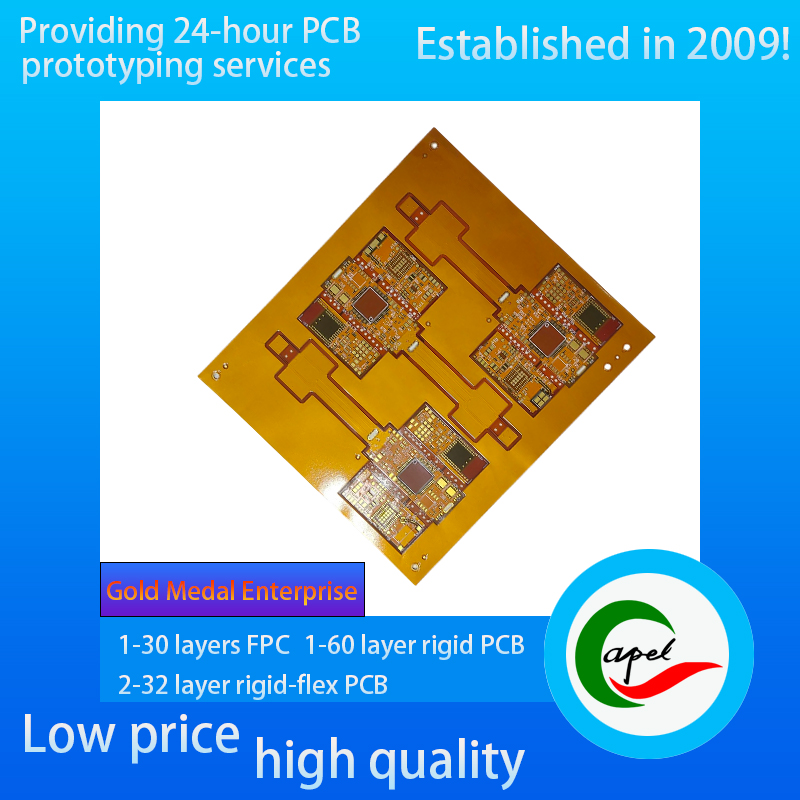

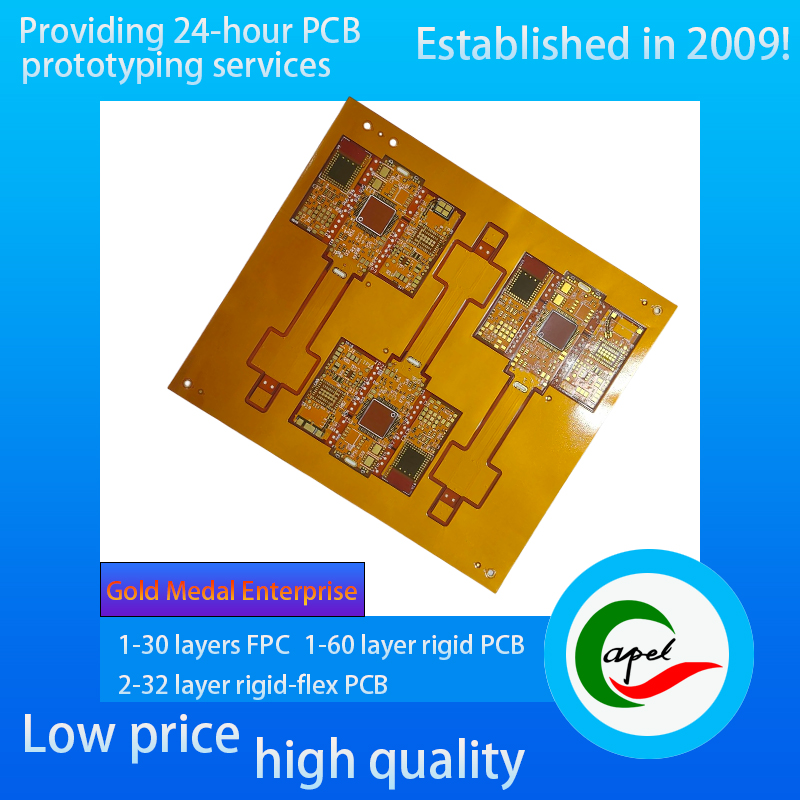

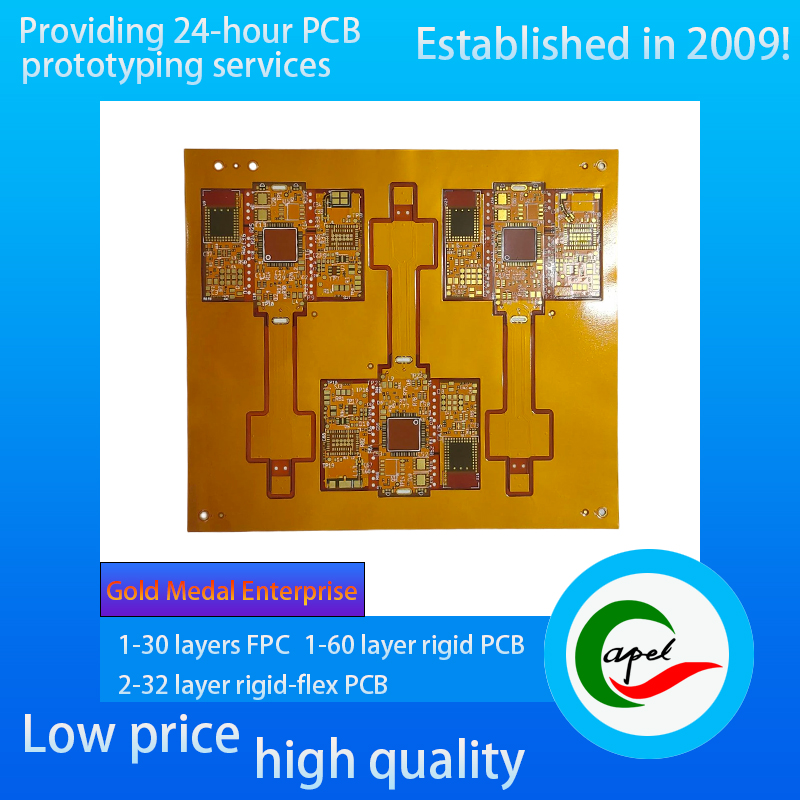

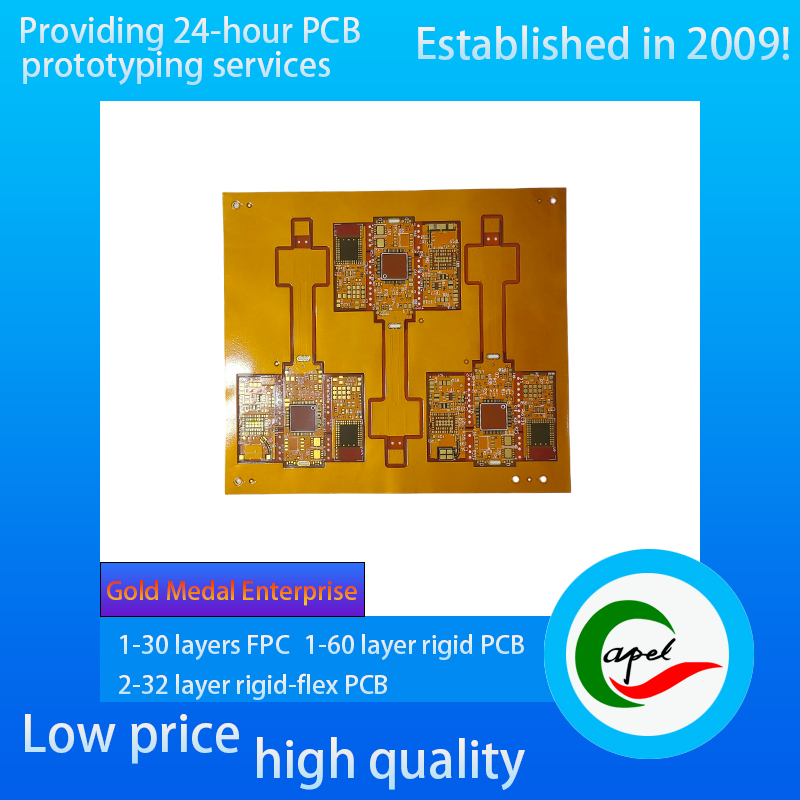

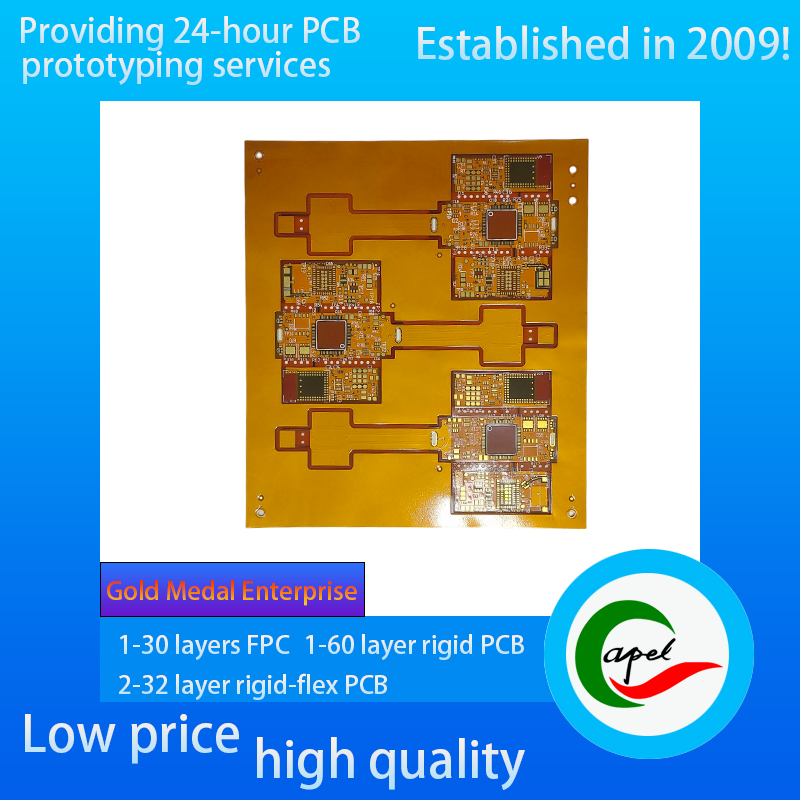

Smart Robot Double-Sided Flexible PCB

Brief Introduction:

Type: Double-sided board

Material: Double-sided adhesive laminated 70/25, double-sided yellow cover film 50μm

Number of Layers: 2 layers

Board Thickness: 0.3mm

Surface Finish: Chemically Gold Plated 3μm

Capel Services:

Custom FPC Flexible PCBs (1-30 layers), Rigid-Flex PCBs (2-32 layers), Rigid PCBs (1-60 layers), Reliable Rapid Turn PCB Prototyping, Fast SMT PCB Assembly

Industries We Serve:

Medical devices, IoT, TUT, drones, aviation, automotive, telecommunications, consumer electronics, military, aerospace, industrial control, artificial intelligence, electric vehicles, and more...

If you have related needs, please click the button below to send us an email.

Capel’s double-sided flexible PCB for intelligent robots is a core circuit component tailored for signal and power transmission scenarios in equipment such as industrial robots and service robots, featuring high-specification materials and a stable structure to tackle complex robot working conditions. Adopting a 2-layer double-sided board design with a precisely controlled thickness of 0.3mm, it combines flexible adaptability and structural strength, allowing it to fit flexibly into the complex layout of moving parts of robots—such as joints, robotic arms, and sensor modules. It withstands mechanical stress from frequent rotation and telescoping, while adapting to the compact internal space of the equipment without affecting the robot’s movement flexibility.

In terms of core materials and performance guarantee, it uses double-sided adhesive-clad rolled 70/25 substrate. The 70μm thickened rolled copper foil has a regular crystal structure, which not only offers excellent conductivity but also has super strong current-carrying capacity. It can stably transmit both the robot’s control signals (such as action commands and sensor data) and power current simultaneously, meeting the high-power requirements of the robot’s drive motors and actuators, and avoiding current overload or signal interruption. The surface is covered with 50μm double-sided yellow coverlay—thicker than conventional specifications—providing strong insulation, wear resistance, and anti-aging performance. It can resist dust, oil contamination, and long-term mechanical friction during robot operation, extending the PCB’s service life. The 3 microinches (approximately 0.0762μm) immersion gold surface treatment creates a uniform and thick gold layer, significantly improving the contact stability between pads, robot connectors, and precision components, and reducing contact resistance. Even in scenarios where the robot moves at high frequency or operates continuously for a long time, it can ensure reliable and consistent circuit performance, providing solid support for intelligent robots to execute actions accurately and transmit data stably.

Capel Flexible PCB & Rigid-Flex PCB Process Capability

Category	Process Capability	Category	Process Capability
Production Type	Single layer FPC / Double layers FPC Multi-layer FPC / Aluminum PCBs Rigid-Flex PCB	Layers Number	1-30 layers FPC 2-32 layers Rigid-FlexPCB 1-60 layers Rigid PCB HDI Boards
Max Manufacture Size	Single layer FPC 4000mm Double layers FPC 1200mm Multi-layers FPC 750mm Rigid-Flex PCB 750mm	Insulating Layer Thickness	27.5um /37.5/ 50um /65/ 75um / 100um / 125um / 150um
Board Thickness	FPC 0.06mm - 0.4mm Rigid-Flex PCB 0.25 - 6.0mm	Tolerance of PTH Size	±0.075mm
Surface Finish	Immersion Gold/Immersion Silver/Gold Plating/Tin Plating/OSP	Stiffener	FR4 / PI / PET / SUS / PSA/Alu
Semicircle Orifice Size	Min 0.4mm	Min Line Space/ width	0.045mm/0.045mm
Thickness Tolerance	±0.03mm	Impedance	50Ω-120Ω
Copper Foil Thickness	9um/12um / 18um / 35um / 70um/100um	Impedance Controlled Tolerance	±10%
Tolerance of NPTH Size	±0.05mm	The Min Flush Width	0.80mm
Min Via Hole	0.1mm	Implement Standard	GB / IPC-650 / IPC-6012 / IPC-6013II / IPC-6013III

Capel manufactures customized high-precision Rigid Flexible Circuit Board / Flexible PCB / HDI PCB with 15 years of experience with our professionalism

2 Layer Flexible PCB Boards Stackup

4 Layer Rigid-Flex PCB Stackup

8 layer HDI PCBs

Testing And Inspection Equipment

Microscope Testing

AOI Inspection

2D Testing

Impedance Testing

RoHS Testing

Flying Probe

Horizontal Tester

Bending Teste

Capel provide customers customized PCB Service with 15 years of experience

Owning 3 factories for Flexible PCB&Rigid-Flex PCB, Rigid PCB, DIP/SMT Assembly;
300+Engineers Provide technical support for Pre-sales and after-sales online;
1-30 layers FPC, 2-32 layers Rigid-FlexPCB, 1-60 layers Rigid PCB
HDI Boards, Flexible PCB (FPC), Rigid-Flex PCBs, Multilayer PCBs, Single-sided PCB, Double-Sided Circuit Boards, Hollow Boards, Rogers PCB, rf PCB, Metal Core PCB, Special Process Boards, Ceramic PCB, Aluminum PCB, SMT & PTH Assembly, PCB Prototype Service.
Provide 24-hour PCB Prototyping service,Small Batches of circuit boards will be delivered in 5-7 days, Mass Production of PCB boards will be delivered in 2-3 weeks;
Industries we service: Medical Devices, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…
Our Production Capacity:
FPC and Rigid-Flex PCBs production capacity can reach more than 150000sqm per month,
PCB production capacity can reach 80000sqm per month,
PCB Assembling capacity at 150,000,000 components per month.
Our teams of engineers and researchers are dedicated to fulfilling your requirements with precision and professionalism.
