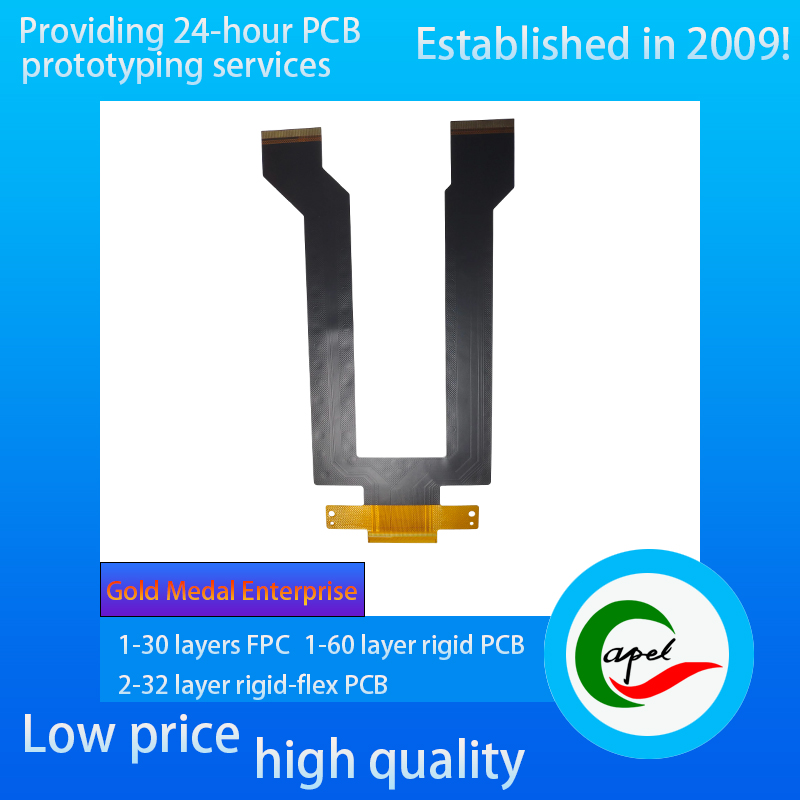

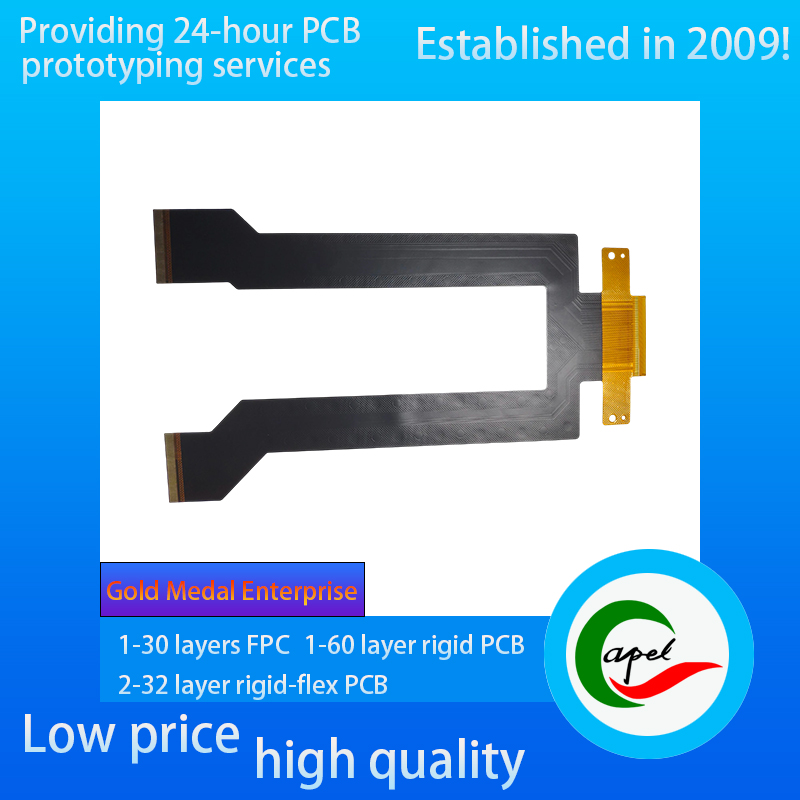

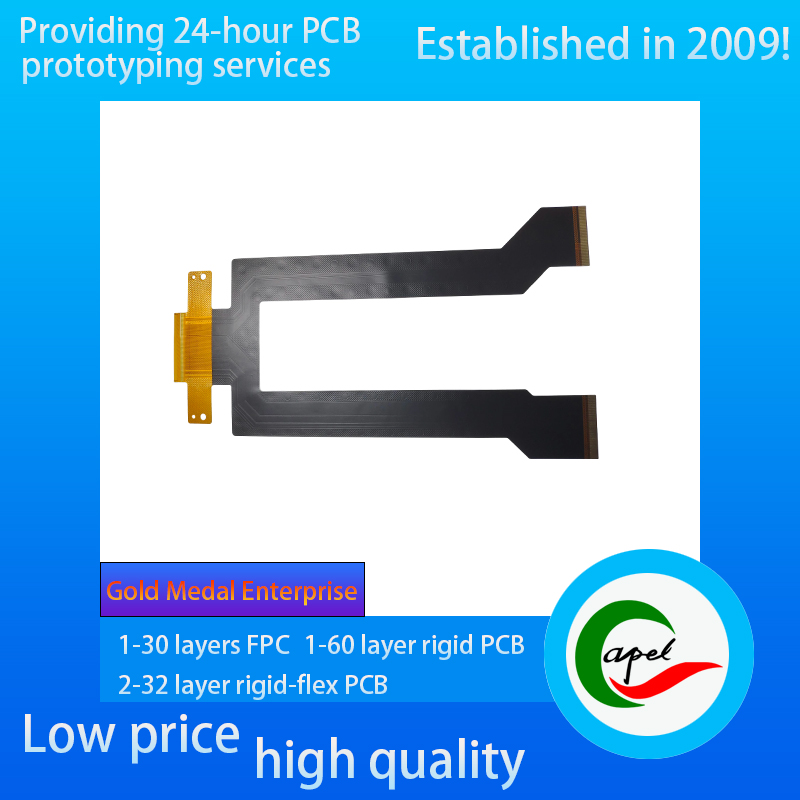

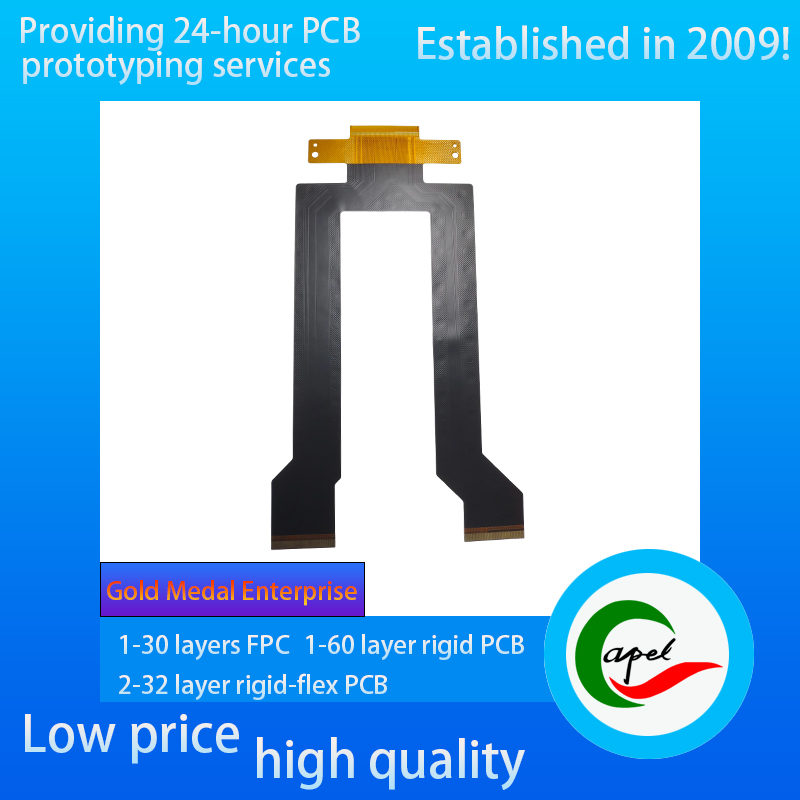

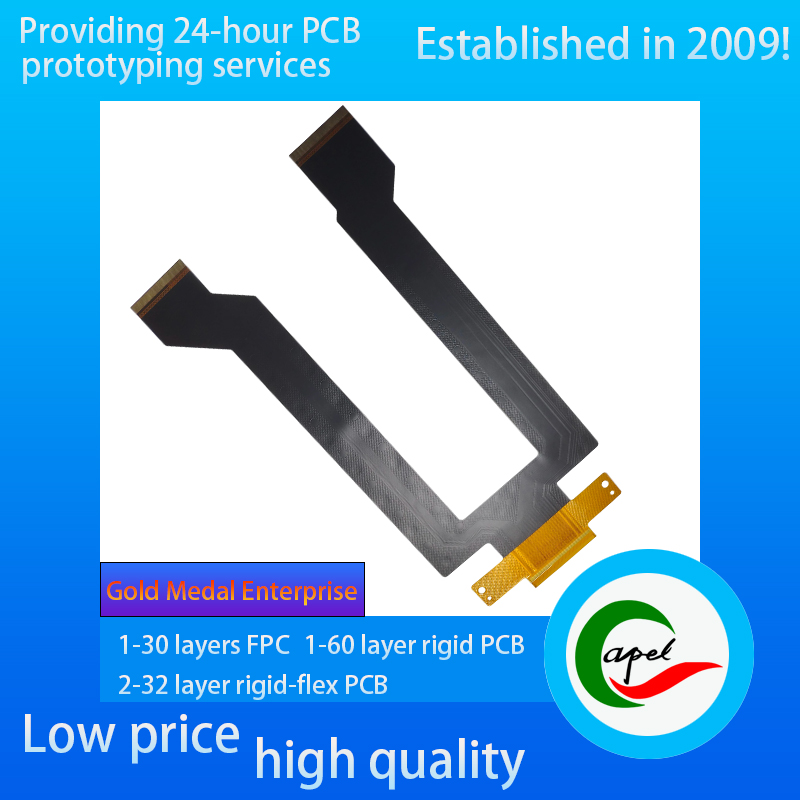

Industrial Control Equipment Double-Sided FPC

Brief Introduction:

Type: Double-sided board

Material: Double-sided adhesive-free calendering 12/25, double-sided yellow cover film 27.5μm, double-sided shielding film 12μm

Number of Layers: 2 layers

Board Thickness: 0.15mm

Surface Finish: Chemically Gold Plated 2μm

Capel Services:

Custom FPC Flexible PCBs (1-30 layers), Rigid-Flex PCBs (2-32 layers), Rigid PCBs (1-60 layers), Reliable Rapid Turn PCB Prototyping, Fast SMT PCB Assembly

Industries We Serve:

Medical devices, IoT, TUT, drones, aviation, automotive, telecommunications, consumer electronics, military, aerospace, industrial control, artificial intelligence, electric vehicles, and more...

If you have related needs, please click the button below to send us an email.

Capel’s double-sided FPC for industrial control equipment is a high-reliability circuit component tailored for industrial control scenarios, featuring a precision material combination and process design to tackle the challenges of complex industrial environments. Adopting a 2-layer double-sided board structure with a precisely controlled thickness of 0.15mm, its thin and flexible properties fit seamlessly into the compact internal space of industrial control equipment and meet complex wiring needs, easily conforming to mechanical structure curves and satisfying the miniaturization and integration requirements of devices.

In terms of core materials and protection performance, it uses double-sided adhesive-free rolled 12/25 substrate. The rolled copper foil has a regular crystal structure, offering excellent conductivity and high bending fatigue resistance, which can stably transmit multi-channel control signals and data commands of industrial control systems, withstanding frequent vibration and mechanical stress during equipment operation. The surface is covered with 27.5μm double-sided yellow coverlay, providing both insulation protection and wear resistance to resist oil, dust and corrosion in industrial scenarios. Additionally, it is equipped with 12μm double-sided shielding film, which effectively isolates electromagnetic interference generated by motors, frequency converters and other equipment, preventing signal noise from affecting control accuracy. The 2 microinches (approximately 0.0508μm) immersion gold surface treatment creates a uniform and dense gold layer, significantly improving the contact stability between pads and connectors, reducing contact resistance, while enhancing oxidation resistance and wear resistance. Even in high-temperature and high-humidity industrial working conditions, it can ensure long-term reliable operation of the circuit and extend the equipment maintenance cycle.

Capel Flexible PCB & Rigid-Flex PCB Process Capability

Category	Process Capability	Category	Process Capability
Production Type	Single layer FPC / Double layers FPC Multi-layer FPC / Aluminum PCBs Rigid-Flex PCB	Layers Number	1-30 layers FPC 2-32 layers Rigid-FlexPCB 1-60 layers Rigid PCB HDI Boards
Max Manufacture Size	Single layer FPC 4000mm Double layers FPC 1200mm Multi-layers FPC 750mm Rigid-Flex PCB 750mm	Insulating Layer Thickness	27.5um /37.5/ 50um /65/ 75um / 100um / 125um / 150um
Board Thickness	FPC 0.06mm - 0.4mm Rigid-Flex PCB 0.25 - 6.0mm	Tolerance of PTH Size	±0.075mm
Surface Finish	Immersion Gold/Immersion Silver/Gold Plating/Tin Plating/OSP	Stiffener	FR4 / PI / PET / SUS / PSA/Alu
Semicircle Orifice Size	Min 0.4mm	Min Line Space/ width	0.045mm/0.045mm
Thickness Tolerance	±0.03mm	Impedance	50Ω-120Ω
Copper Foil Thickness	9um/12um / 18um / 35um / 70um/100um	Impedance Controlled Tolerance	±10%
Tolerance of NPTH Size	±0.05mm	The Min Flush Width	0.80mm
Min Via Hole	0.1mm	Implement Standard	GB / IPC-650 / IPC-6012 / IPC-6013II / IPC-6013III

Capel manufactures customized high-precision Rigid Flexible Circuit Board / Flexible PCB / HDI PCB with 15 years of experience with our professionalism

2 Layer Flexible PCB Boards Stackup

4 Layer Rigid-Flex PCB Stackup

8 layer HDI PCBs

Testing And Inspection Equipment

Microscope Testing

AOI Inspection

2D Testing

Impedance Testing

RoHS Testing

Flying Probe

Horizontal Tester

Bending Teste

Capel provide customers customized PCB Service with 15 years of experience

Owning 3 factories for Flexible PCB&Rigid-Flex PCB, Rigid PCB, DIP/SMT Assembly;
300+Engineers Provide technical support for Pre-sales and after-sales online;
1-30 layers FPC, 2-32 layers Rigid-FlexPCB, 1-60 layers Rigid PCB
HDI Boards, Flexible PCB (FPC), Rigid-Flex PCBs, Multilayer PCBs, Single-sided PCB, Double-Sided Circuit Boards, Hollow Boards, Rogers PCB, rf PCB, Metal Core PCB, Special Process Boards, Ceramic PCB, Aluminum PCB, SMT & PTH Assembly, PCB Prototype Service.
Provide 24-hour PCB Prototyping service,Small Batches of circuit boards will be delivered in 5-7 days, Mass Production of PCB boards will be delivered in 2-3 weeks;
Industries we service: Medical Devices, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…
Our Production Capacity:
FPC and Rigid-Flex PCBs production capacity can reach more than 150000sqm per month,
PCB production capacity can reach 80000sqm per month,
PCB Assembling capacity at 150,000,000 components per month.
Our teams of engineers and researchers are dedicated to fulfilling your requirements with precision and professionalism.
