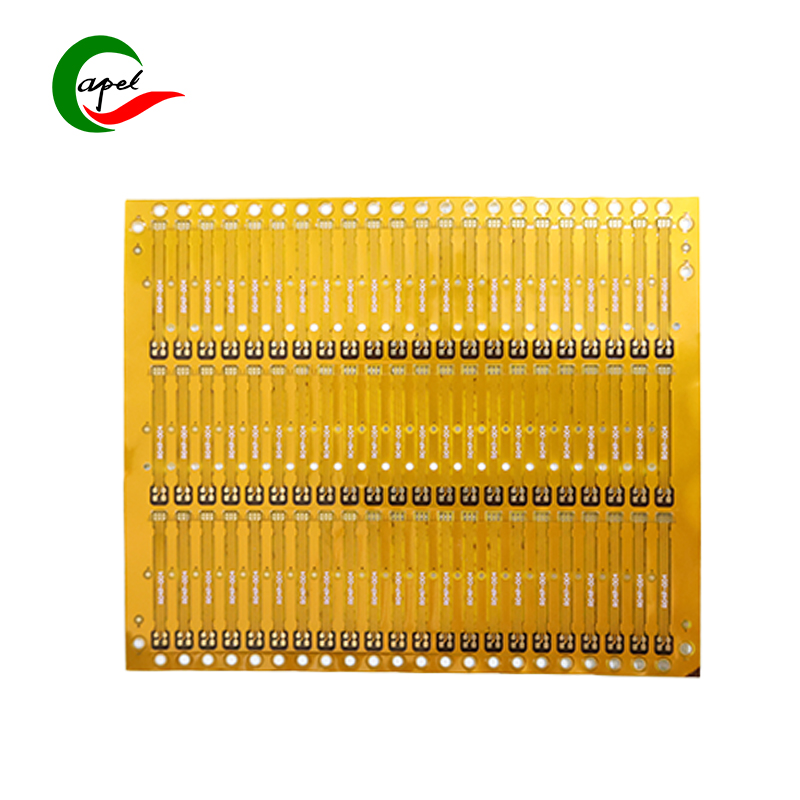

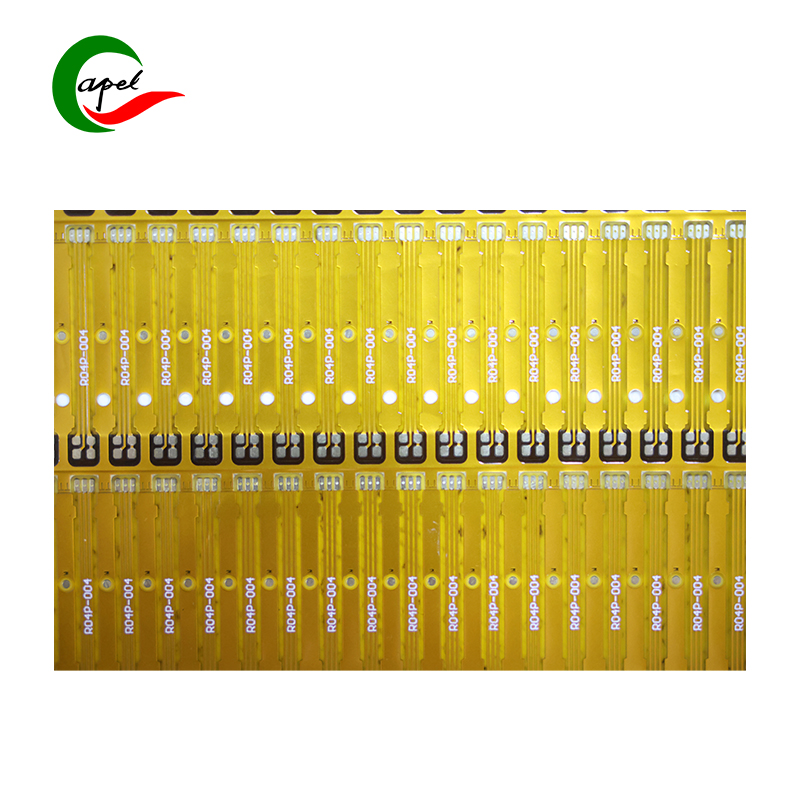

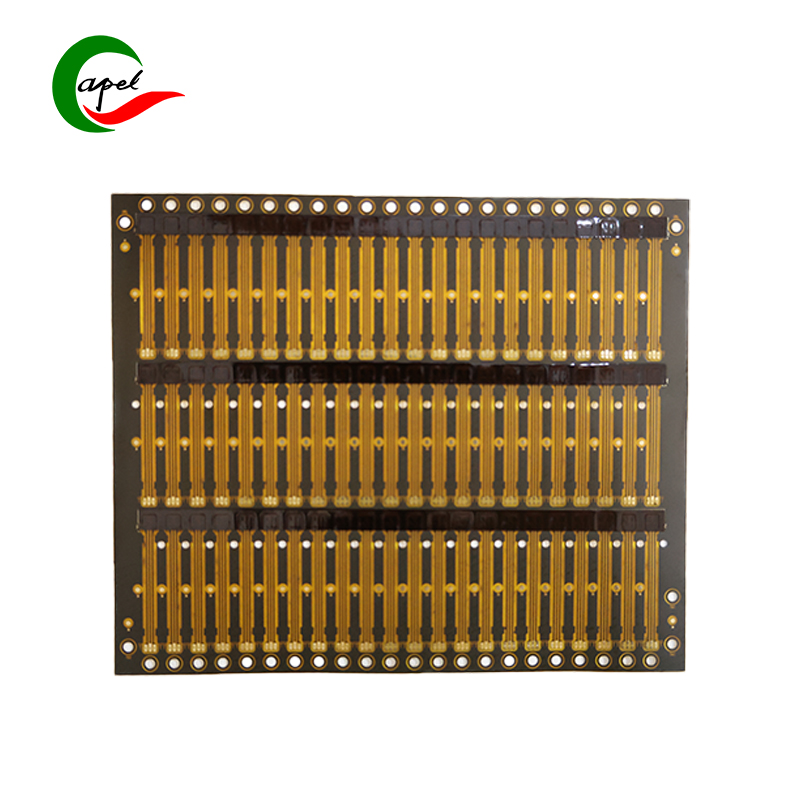

Caboer’s Double-Sided Flexible PCB for LEDs is tailor-made for core components such as LED flexible light strips, automotive LED lighting modules, smart device backlighting units, outdoor display panels, and decorative lighting assemblies. It precisely meets the core demands of LED scenarios—ultra-thin flexible adaptation, high-density LED integration, stable current transmission, and weather resistance. With the robust configuration of "1mil immersion gold finish + refined wiring", it stands as a preferred performance solution for the LED lighting and display industry, empowering brands to create high-quality LED products with uniform brightness, flexible installation, and long-term stability!
Featuring a double-sided flexible core structure, it perfectly balances the installation adaptability and operational reliability of LED products: at only 0.13mm thick, it is extremely slim with exceptional bending toughness, easily conforming to complex installation scenarios such as curved surfaces, corners, and narrow spaces. It adapts to diverse needs including automotive interior curved lighting, furniture irregular decoration, and outdoor display panel bending layouts—completely solving the pain point of traditional rigid PCBs being unable to fit flexible installations. Backed by refined manufacturing standards, the 0.25/0.1mm fine line width/spacing and 0.2mm micro drill size enable high-density LED array layout and precise solder joint connections, integrating more light-emitting units in limited space and providing sufficient circuit support for high brightness and uniform light efficiency of LED products.
Key advantages directly address LED scenario pain points, demonstrating lighting-grade robustness: ① Equipped with 1mil immersion gold finish, it offers excellent conductivity, oxidation resistance, and wear resistance. Low contact resistance ensures stable transmission of LED driving current, avoiding LED flicker and uneven brightness caused by poor contact. It also extends product service life, adapting to long-term indoor and outdoor use; ② Double-sided wiring design significantly improves circuit layout density and current transmission efficiency. It can flexibly design parallel/series circuits to adapt to different power LED combinations, balancing brightness and energy-saving needs. Meanwhile, the immersion gold surface enhances soldering reliability, suitable for mass SMT assembly of LED modules and reducing assembly defect rates; ③ The flexible substrate features excellent fatigue resistance and wide temperature tolerance (-40℃ to 85℃), withstanding long-term bending and temperature changes in outdoor environments. It has good water and moisture resistance, adapting to harsh use scenarios such as automotive and outdoor applications, and reducing after-sales failure risks.
Backed by Caboer’s profound technical accumulation in flexible PCBs and strict quality control system, this LED-specific double-sided flexible PCB can be customized for circuit layout, interface types, and dimensions based on product requirements (e.g., light strip length, LED spacing, power specifications). Paired with rapid prototyping and efficient SMT assembly services, it helps customers shorten R&D cycles and accelerate time-to-market. Whether for ultra-flexible decorative lighting, reliable automotive LEDs, or high-brightness outdoor display modules, it serves as the "power transmission hub" of LED products with core advantages of "flexible adaptation and stable durability", helping brands enhance product competitiveness and seize shares in the lighting and display market!
