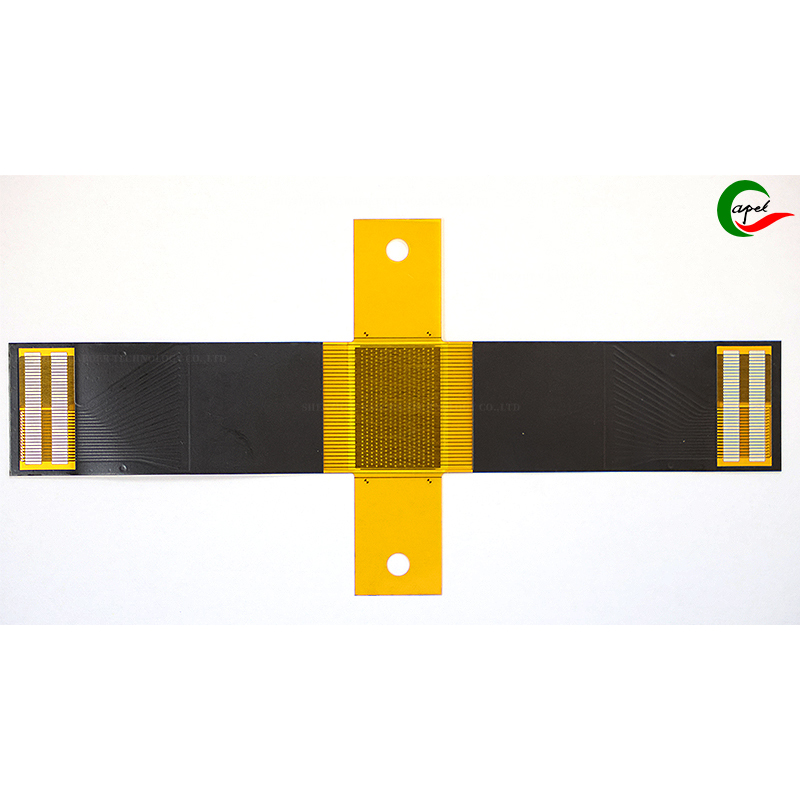

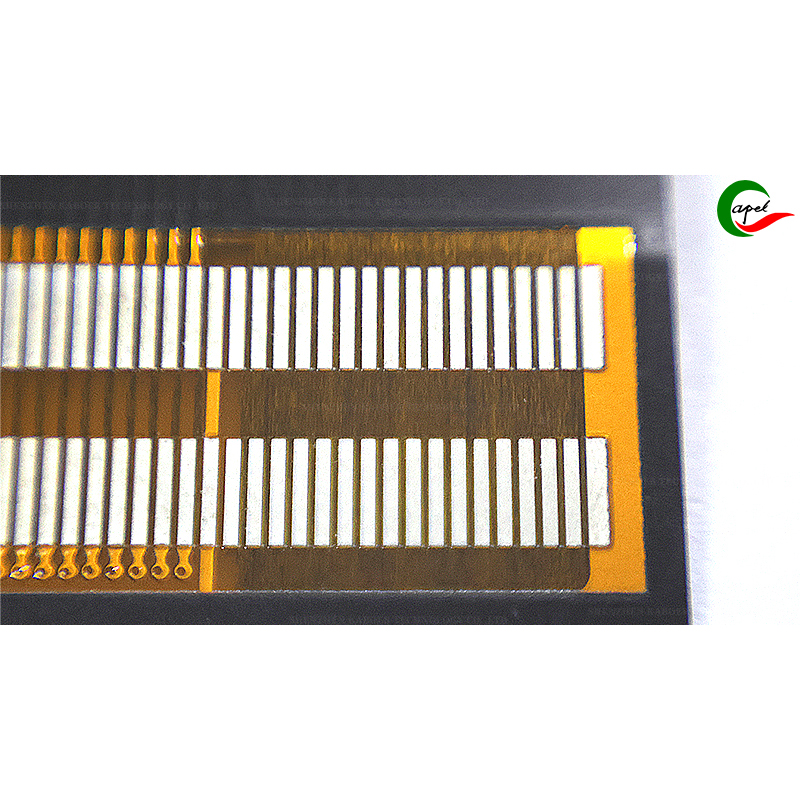

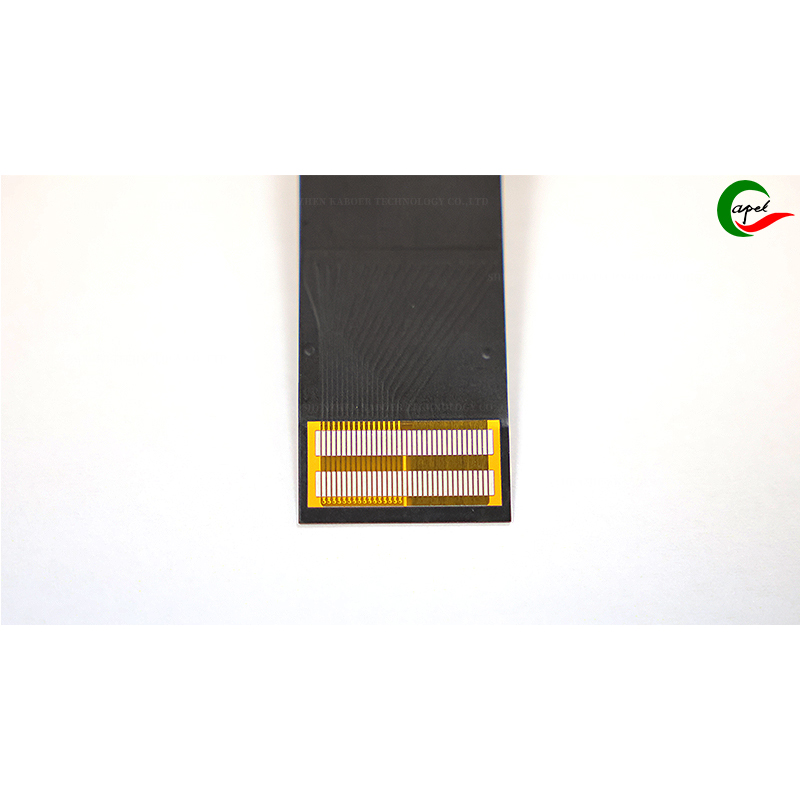

Phased Array Probe Double-Sided Flexible PCB

Brief Introduction:

Type: Double-sided board

Surface Finish: Immersion gold

Number of Layers: 2 layers

Board Thickness: 0.12mm

Line Width/Spacing: 0.15mm, 0.3mm

Caboer Services:

Custom FPC flexible PCBs (1-30 layers), rigid-flex PCBs (2-32 layers), rigid PCBs (1-60 layers), reliable rapid turnaround PCB prototyping, fast SMT PCB assembly

Industries We Serve:

Medical Devices, IoT, TUT, Drones, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, Electric Vehicles, and more...

If you have related needs, please click the button below to send us an email.

Caboer’s Double-Sided Flexible PCB for Phased Array Probes is a core circuit component tailored for phased array detection equipment in medical ultrasound diagnosis, industrial non-destructive testing (NDT), and other fields. Centered on "accurate signal transmission + flexible array adaptation", it ensures the beam focusing and imaging precision of phased array probes. Adopting a 2-layer double-sided board design with a precisely controlled thickness of 0.12mm, it balances excellent flexibility and structural stability, enabling flexible fit to the multi-element array layout, curved detection surface, and compact internal space of phased array probes. It does not affect the lightweight design of the probe while withstanding slight bending and vibration during probe assembly and testing, preventing circuit stress damage, and adapting to the structural needs of different scenarios such as medical ultrasound probes (e.g., cardiac, abdominal ultrasound) and industrial pipeline/weld inspection probes.

In terms of technical parameters and performance guarantees, the product offers two key advantages: ① Optimized Wiring Design: Supporting a scientific layout with 0.15mm trace width and 0.3mm spacing, the 0.15mm fine trace width ensures precise transmission and phase synchronization of multi-channel ultrasonic signals, meeting the core requirement of phased array probes for "multi-element collaboration and electronic beam scanning"; the 0.3mm sufficient spacing effectively reduces signal crosstalk between elements, avoiding imaging blurriness caused by phase deviation and ensuring the accuracy of detection data; ② Immersion Gold Surface Finish: The full-board immersion gold process creates a uniform and dense gold layer, providing superior conductivity, oxidation resistance, and wear resistance. It reduces the transmission loss of high-frequency ultrasonic signals, improves contact stability with element sensors and signal processing chips, and resists erosion from medical disinfection (e.g., alcohol wiping), dust, and humidity in industrial testing environments, extending the probe’s service life. The product uses flexible substrates with excellent high-frequency characteristics and stable dielectric constant, further ensuring signal phase consistency and providing a solid circuit foundation for high-resolution imaging and accurate defect localization of phased array probes.

As a professional PCB solution provider, Caboer offers comprehensive customization capabilities: personalized development of 1-30 layer FPC flexible PCBs, 2-32 layer rigid-flex PCBs, and 1-60 layer rigid PCBs. Complemented by reliable rapid-turnaround PCB prototyping and fast SMT PCB assembly services, we help phased array equipment clients accelerate product R&D and mass production processes. Our services span diverse industries, including Medical Devices, IoT, TUT, Drones, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, Electric Vehicles, and more. With rigorous quality control, flexible customization solutions, and efficient delivery capabilities, we have become a trusted partner for customers in medical ultrasound, industrial testing, and other fields.

If you have customization needs for phased array probe PCBs or other detection equipment PCBs, please click the button below to send us an email. Caboer will provide you with a tailored solution.

Caboer Flexible PCB & Rigid-Flex PCB Process Capability

Category	Process Capability	Category	Process Capability
Production Type	Single layer FPC / Double layers FPC Multi-layer FPC / Aluminum PCBs Rigid-Flex PCB	Layers Number	1-30 layers FPC 2-32 layers Rigid-FlexPCB 1-60 layers Rigid PCB HDI Boards
Max Manufacture Size	Single layer FPC 4000mm Double layers FPC 1200mm Multi-layers FPC 750mm Rigid-Flex PCB 750mm	Insulating Layer Thickness	27.5um /37.5/ 50um /65/ 75um / 100um / 125um / 150um
Board Thickness	FPC 0.06mm - 0.4mm Rigid-Flex PCB 0.25 - 6.0mm	Tolerance of PTH Size	±0.075mm
Surface Finish	Immersion Gold/Immersion Silver/Gold Plating/Tin Plating/OSP	Stiffener	FR4 / PI / PET / SUS / PSA/Alu
Semicircle Orifice Size	Min 0.4mm	Min Line Space/ width	0.045mm/0.045mm
Thickness Tolerance	±0.03mm	Impedance	50Ω-120Ω
Copper Foil Thickness	9um/12um / 18um / 35um / 70um/100um	Impedance Controlled Tolerance	±10%
Tolerance of NPTH Size	±0.05mm	The Min Flush Width	0.80mm
Min Via Hole	0.1mm	Implement Standard	GB / IPC-650 / IPC-6012 / IPC-6013II / IPC-6013III

Caboer manufactures customized high-precision Rigid Flexible Circuit Board / Flexible PCB / HDI PCB with 15 years of experience with our professionalism

2 Layer Flexible PCB Boards Stackup

4 Layer Rigid-Flex PCB Stackup

8 layer HDI PCBs

Testing And Inspection Equipment

Microscope Testing

AOI Inspection

2D Testing

Impedance Testing

RoHS Testing

Flying Probe

Horizontal Tester

Bending Teste

Caboer provide customers customized PCB Service with 15 years of experience

Owning 3 factories for Flexible PCB&Rigid-Flex PCB, Rigid PCB, DIP/SMT Assembly;
300+Engineers Provide technical support for Pre-sales and after-sales online;
1-30 layers FPC, 2-32 layers Rigid-FlexPCB, 1-60 layers Rigid PCB
HDI Boards, Flexible PCB (FPC), Rigid-Flex PCBs, Multilayer PCBs, Single-sided PCB, Double-Sided Circuit Boards, Hollow Boards, Rogers PCB, rf PCB, Metal Core PCB, Special Process Boards, Ceramic PCB, Aluminum PCB, SMT & PTH Assembly, PCB Prototype Service.
Provide 24-hour PCB Prototyping service,Small Batches of circuit boards will be delivered in 5-7 days, Mass Production of PCB boards will be delivered in 2-3 weeks;
Industries we service: Medical Devices, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…
Our Production Capacity:
FPC and Rigid-Flex PCBs production capacity can reach more than 150000sqm per month,
PCB production capacity can reach 80000sqm per month,
PCB Assembling capacity at 150,000,000 components per month.
Our teams of engineers and researchers are dedicated to fulfilling your requirements with precision and professionalism.
