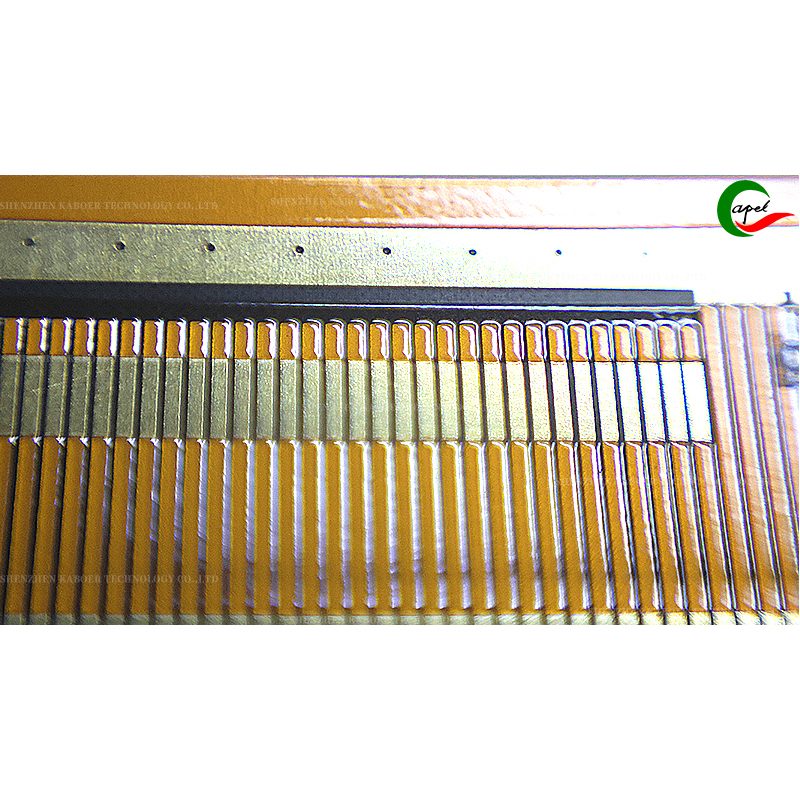

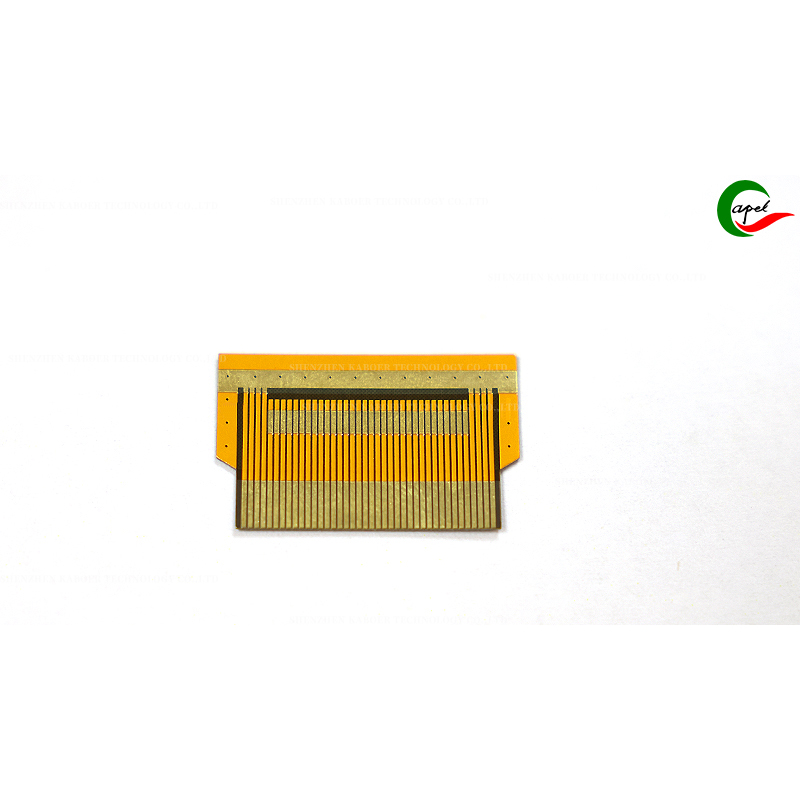

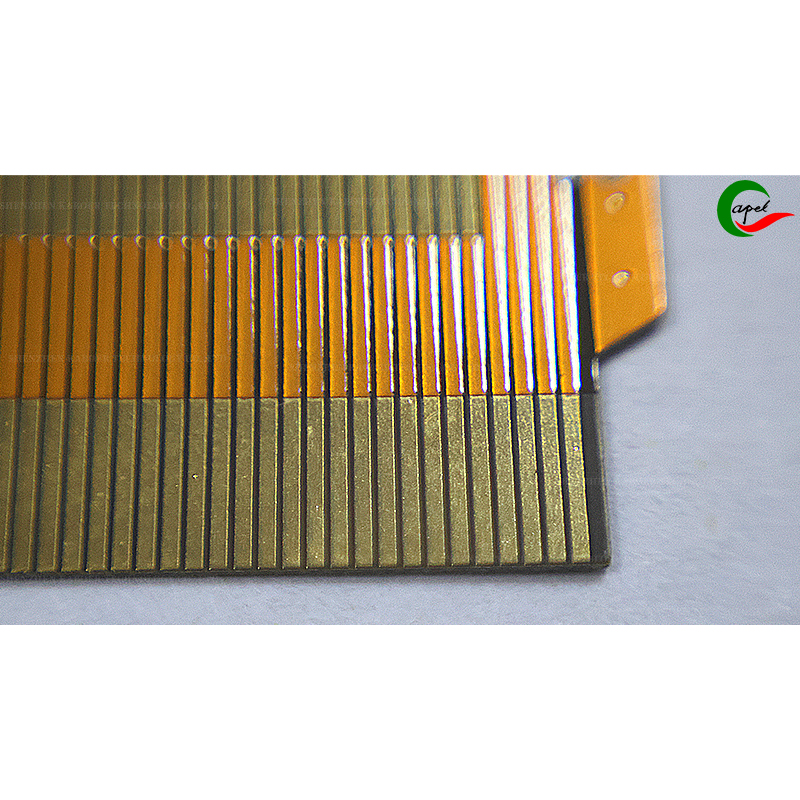

Universal Plug Board Double-Sided Flexible PCB

Brief Introduction:

Type: Double-sided board

Surface Finish: Immersion gold

Number of Layers: 2 layers

Board Thickness: 0.13mm

Line Width/Spacing: 0.35mm, 0.15mm

Caboer Services:

Custom manufacturing of 1-30 layer FPC flexible PCBs, 2-32 layer rigid-flex PCBs, and 1-60 layer rigid PCBs. Reliable rapid turnaround PCB prototyping and fast SMT PCB assembly.

Industries We Serve:

Medical Devices, IoT, TUT, Drones, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, Electric Vehicles, and more...

If you have related needs, please click the button below to send us an email.

Caboer’s Universal Plug Board Double-Sided Flexible PCB is a versatile circuit component tailored for signal conversion, power distribution, and module interconnection in various electronic devices. Centered on "stable transmission + flexible adaptation", it meets the universal demand for compact connection and reliable conduction across multi-field equipment. Adopting a 2-layer double-sided board design with a precisely controlled thickness of 0.13mm, it balances excellent flexibility and structural stability, enabling flexible fit to the compact layouts, narrow installation spaces, or slight curved structures of consumer electronics, IoT terminals, industrial control modules, and other devices. It occupies no redundant volume, aligning with the miniaturization and integration design trends of equipment, while withstanding slight bending during assembly and vibration in daily use, preventing circuit loosening or breakage and ensuring continuous stability of connection links.

In terms of technical parameters and performance guarantees, the product offers two key advantages: ① Scientific Wiring Design: Supporting an optimized layout with 0.35mm trace width and 0.15mm spacing, the 0.35mm trace width ensures stable transmission of low-to-medium power supply and various signals, adapting to the current and signal requirements of general electronic equipment; the 0.15mm reasonable spacing guarantees insulation reliability between lines, effectively reducing signal crosstalk and short-circuit risks—especially suitable for conversion scenarios involving parallel transmission of multiple signals; ② Immersion Gold Surface Protection: The full-board immersion gold process creates a uniform and dense gold layer, featuring superior oxidation resistance, wear resistance, and low contact resistance. It significantly enhances contact stability with connectors, adapters, and module pins, avoiding poor contact caused by oxidation or plugging wear during long-term use, and extending product service life. It is suitable for diverse scenarios such as high-frequency plugging (e.g., portable device interfaces) or long-term stable operation (e.g., industrial control modules). The product uses high-quality flexible substrates with good temperature resistance (-40℃ to 85℃) and anti-aging properties, fully complying with general reliability standards for electronic equipment in multiple fields, and can seamlessly adapt to the usage needs of consumer electronics, IoT, industrial control, and other scenarios.

As a professional PCB solution provider, Caboer offers comprehensive customization capabilities: custom manufacturing of 1-30 layer FPC flexible PCBs, 2-32 layer rigid-flex PCBs, and 1-60 layer rigid PCBs. Complemented by reliable rapid-turnaround PCB prototyping and fast SMT PCB assembly services, we help customers across various industries accelerate product R&D and mass production processes. Our services span diverse industries, including Medical Devices, IoT, TUT, Drones, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, Electric Vehicles, and more. With stable product quality, flexible customization solutions, and efficient delivery capabilities, we have become a trusted partner for universal electronic components across multiple sectors.

If you have customization needs for universal plug board PCBs or other field-related PCBs, please click the button below to send us an email. Caboer will provide you with a tailored solution.

Caboer Flexible PCB & Rigid-Flex PCB Process Capability

Category	Process Capability	Category	Process Capability
Production Type	Single layer FPC / Double layers FPC Multi-layer FPC / Aluminum PCBs Rigid-Flex PCB	Layers Number	1-30 layers FPC 2-32 layers Rigid-FlexPCB 1-60 layers Rigid PCB HDI Boards
Max Manufacture Size	Single layer FPC 4000mm Double layers FPC 1200mm Multi-layers FPC 750mm Rigid-Flex PCB 750mm	Insulating Layer Thickness	27.5um /37.5/ 50um /65/ 75um / 100um / 125um / 150um
Board Thickness	FPC 0.06mm - 0.4mm Rigid-Flex PCB 0.25 - 6.0mm	Tolerance of PTH Size	±0.075mm
Surface Finish	Immersion Gold/Immersion Silver/Gold Plating/Tin Plating/OSP	Stiffener	FR4 / PI / PET / SUS / PSA/Alu
Semicircle Orifice Size	Min 0.4mm	Min Line Space/ width	0.045mm/0.045mm
Thickness Tolerance	±0.03mm	Impedance	50Ω-120Ω
Copper Foil Thickness	9um/12um / 18um / 35um / 70um/100um	Impedance Controlled Tolerance	±10%
Tolerance of NPTH Size	±0.05mm	The Min Flush Width	0.80mm
Min Via Hole	0.1mm	Implement Standard	GB / IPC-650 / IPC-6012 / IPC-6013II / IPC-6013III

Caboer manufactures customized high-precision Rigid Flexible Circuit Board / Flexible PCB / HDI PCB with 15 years of experience with our professionalism

2 Layer Flexible PCB Boards Stackup

4 Layer Rigid-Flex PCB Stackup

8 layer HDI PCBs

Testing And Inspection Equipment

Microscope Testing

AOI Inspection

2D Testing

Impedance Testing

RoHS Testing

Flying Probe

Horizontal Tester

Bending Teste

Caboer provide customers customized PCB Service with 15 years of experience

Owning 3 factories for Flexible PCB&Rigid-Flex PCB, Rigid PCB, DIP/SMT Assembly;
300+Engineers Provide technical support for Pre-sales and after-sales online;
1-30 layers FPC, 2-32 layers Rigid-FlexPCB, 1-60 layers Rigid PCB
HDI Boards, Flexible PCB (FPC), Rigid-Flex PCBs, Multilayer PCBs, Single-sided PCB, Double-Sided Circuit Boards, Hollow Boards, Rogers PCB, rf PCB, Metal Core PCB, Special Process Boards, Ceramic PCB, Aluminum PCB, SMT & PTH Assembly, PCB Prototype Service.
Provide 24-hour PCB Prototyping service,Small Batches of circuit boards will be delivered in 5-7 days, Mass Production of PCB boards will be delivered in 2-3 weeks;
Industries we service: Medical Devices, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…
Our Production Capacity:
FPC and Rigid-Flex PCBs production capacity can reach more than 150000sqm per month,
PCB production capacity can reach 80000sqm per month,
PCB Assembling capacity at 150,000,000 components per month.
Our teams of engineers and researchers are dedicated to fulfilling your requirements with precision and professionalism.
