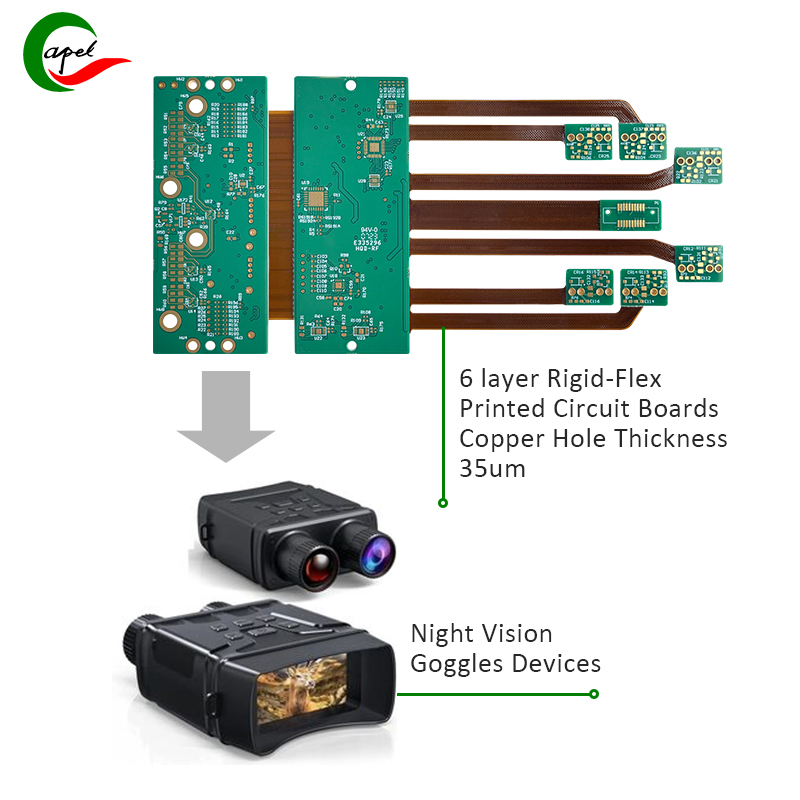

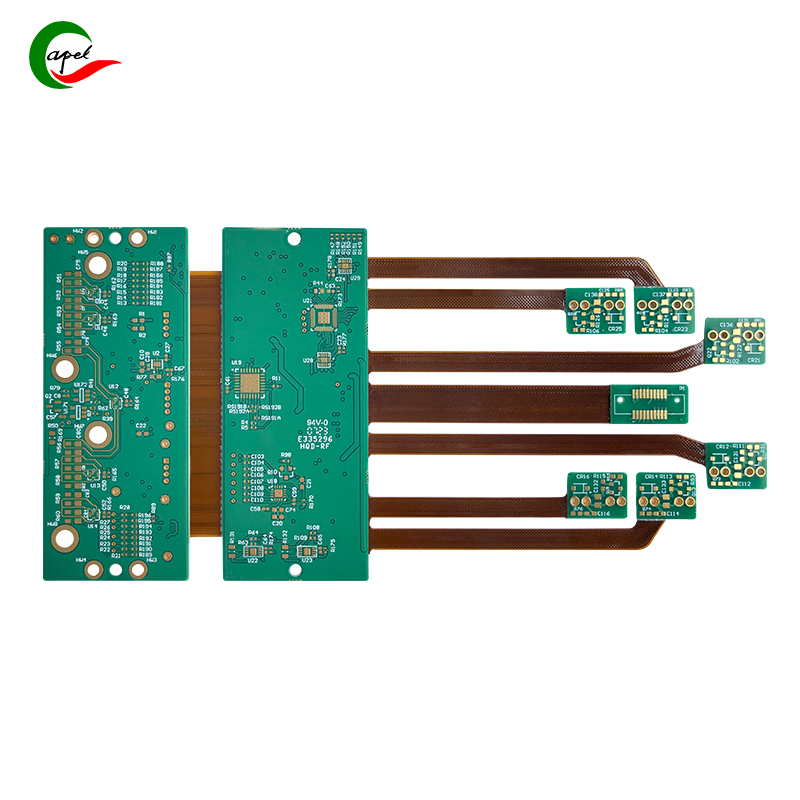

6 layer Rigid-Flex Printed Circuit Boards Pcb Manufacturing for Night Vision Goggles

Short Description:

Product Type:6 layer Rigid-Flex Printed Circuit Boards
Applications:Night Vision Goggles Devices
Line width and line spacing：0.15mm/0.15mm
Board thickness：1.2mm+-10%
Layers Stackup:2+2+2
Minimum Aperture:0.2mm
Copper Hole Thickness:35um
Surface Treatment:ENIG 2-3uin
Impedance:/
Warpage:≦0.5%
Tolerance Accuracy:±0.1MM

Capel’s Service:

Support Custom 1-30 Layer FPC Flexible PCB,2-32 Layer Rigid-Flex Circuit Boards,1-60 Layer Rigid PCB,HDI PCB,Reliable Quick Turn PCB Prototyping,Fast Turn SMT PCB Assembly

Industry We Service:

Medical Device, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…

How Capel's 6 Layer Rigid-Flex Printed Circuit Boards Pcb Manufacturing Provides Reliability Solutions for Night Vision Goggles manufacturers
-Capel with 15 years of professional technical experience-

Introducing our state-of-the-art 6-layer rigid-flex printed circuit board designed specifically for night vision goggle equipment. Combining the latest technology with precision engineering, our circuit boards are the perfect solution for high-performance, reliable and durable night vision equipment.

Our boards are 1.2mm thick to withstand rigorous use and ensure optimal functionality. The 2+2+2 layer stacking enables efficient power distribution and signal transmission, resulting in enhanced performance and superior image quality.

With a minimum hole diameter of 0.2 mm, our boards provide superior accuracy and precision in complex component assembly. 0.15mm/0.15mm line width and line spacing ensure seamless connection and minimize signal loss.

Our circuit boards are designed to withstand harsh environments and extreme temperatures, making them ideal for night vision applications. Its impedance-free design ensures uninterrupted signal flow for clear, sharp and uninterrupted images.

To further enhance its durability, we use an ENIG 2-3uin surface treatment, which provides optimal protection against corrosion and extends the life of the board. The 35um copper hole thickness ensures excellent electrical conductivity and efficient heat dissipation.

Our circuit boards have a warpage tolerance of less than 0.5% and a tolerance accuracy of ±0.1mm, ensuring excellent stability and dimensional accuracy even under the most demanding conditions. This ensures consistent performance and long-term reliability.

Our 6-layer rigid-flex printed circuit boards for night vision goggles are designed and manufactured to the highest industry standards. They undergo rigorous testing and quality control processes to ensure optimal performance and reliability.

Our 6-layer rigid-flex printed circuit board is the perfect choice for night vision goggle devices. With their advanced features, durability and precision engineering, they deliver unparalleled performance and reliability, guaranteeing superior image quality and optimal functionality in night vision applications.

Capel Flexible PCB & Rigid-Flex PCB Process Capability

Category	Process Capability	Category	Process Capability
Production Type	Single layer FPC / Double layers FPC Multi-layer FPC / Aluminum PCBs Rigid-Flex PCB	Layers Number	1-30 layers FPC 2-32 layers Rigid-FlexPCB 1-60 layers Rigid PCB HDI Boards
Max Manufacture Size	Single layer FPC 4000mm Double layers FPC 1200mm Multi-layers FPC 750mm Rigid-Flex PCB 750mm	Insulating Layer Thickness	27.5um /37.5/ 50um /65/ 75um / 100um / 125um / 150um
Board Thickness	FPC 0.06mm - 0.4mm Rigid-Flex PCB 0.25 - 6.0mm	Tolerance of PTH Size	±0.075mm
Surface Finish	Immersion Gold/Immersion Silver/Gold Plating/Tin Plating/OSP	Stiffener	FR4 / PI / PET / SUS / PSA/Alu
Semicircle Orifice Size	Min 0.4mm	Min Line Space/ width	0.045mm/0.045mm
Thickness Tolerance	±0.03mm	Impedance	50Ω-120Ω
Copper Foil Thickness	9um/12um / 18um / 35um / 70um/100um	Impedance Controlled Tolerance	±10%
Tolerance of NPTH Size	±0.05mm	The Min Flush Width	0.80mm
Min Via Hole	0.1mm	Implement Standard	GB / IPC-650 / IPC-6012 / IPC-6013II / IPC-6013III

Capel manufactures customized high-precision Rigid Flexible Circuit Board / Flexible PCB / HDI PCB with 15 years of experience with our professionalism

2 Layer Flexible PCB Boards Stackup

4 Layer Rigid-Flex PCB Stackup

8 layer HDI PCBs

Testing And Inspection Equipment

Microscope Testing

AOI Inspection

2D Testing

Impedance Testing

RoHS Testing

Flying Probe

Horizontal Tester

Bending Teste

Capel provide customers customized PCB Service with 15 years of experience

Owning 3 factories for Flexible PCB&Rigid-Flex PCB, Rigid PCB, DIP/SMT Assembly;
300+Engineers Provide technical support for Pre-sales and after-sales online;
1-30 layers FPC, 2-32 layers Rigid-FlexPCB, 1-60 layers Rigid PCB
HDI Boards, Flexible PCB (FPC), Rigid-Flex PCBs, Multilayer PCBs, Single-sided PCB, Double-Sided Circuit Boards, Hollow Boards, Rogers PCB, rf PCB, Metal Core PCB, Special Process Boards, Ceramic PCB, Aluminum PCB, SMT & PTH Assembly, PCB Prototype Service.
Provide 24-hour PCB Prototyping service,Small Batches of circuit boards will be delivered in 5-7 days, Mass Production of PCB boards will be delivered in 2-3 weeks;
Industries we service: Medical Devices, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…
Our Production Capacity:
FPC and Rigid-Flex PCBs production capacity can reach more than 150000sqm per month,
PCB production capacity can reach 80000sqm per month,
PCB Assembling capacity at 150,000,000 components per month.
Our teams of engineers and researchers are dedicated to fulfilling your requirements with precision and professionalism.
