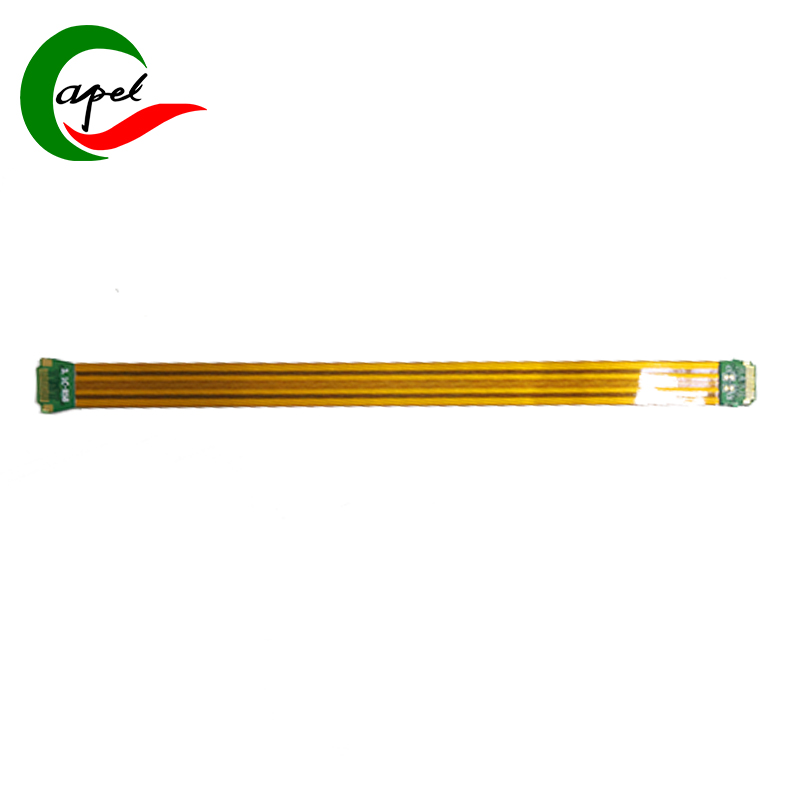

Caboer’s 5-Layer Rigid-Flex Board for LCD TVs is tailor-made for core LCD TV components such as screen driver modules, signal transmission units, interface expansion boards, and backlight control modules. It precisely meets the core demands of LCD TVs—slim design, stable transmission of high-quality signals, high integration adaptation, and narrow space compatibility. With 5-layer high-density wiring and a rigid-flex synergy structure, it stands as a preferred performance solution for high-end LCD TV R&D, empowering brands to create audio-visual flagship products with clear images, stable operation, and sleek profiles!

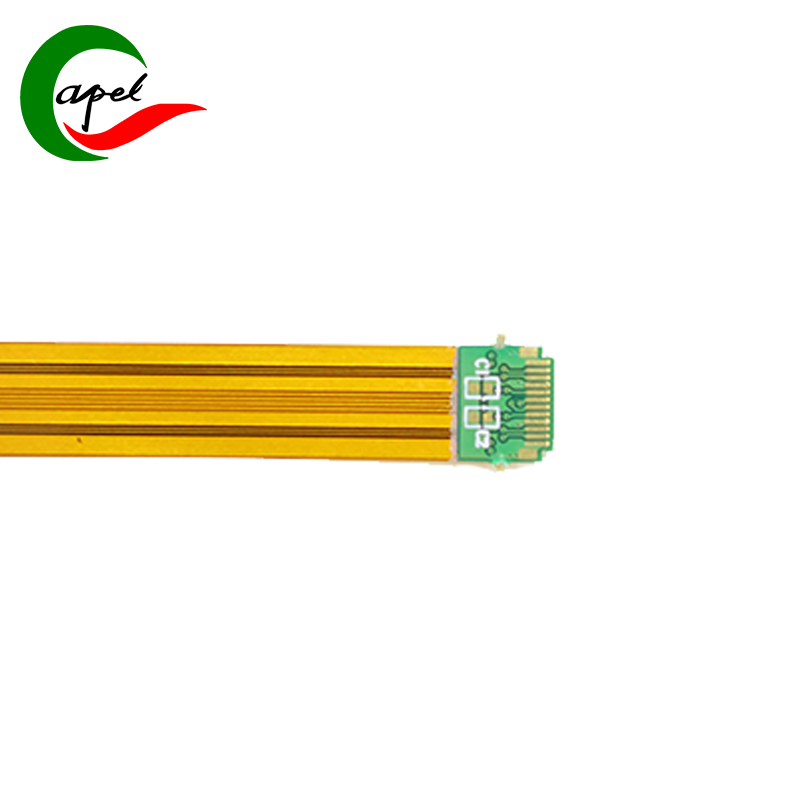

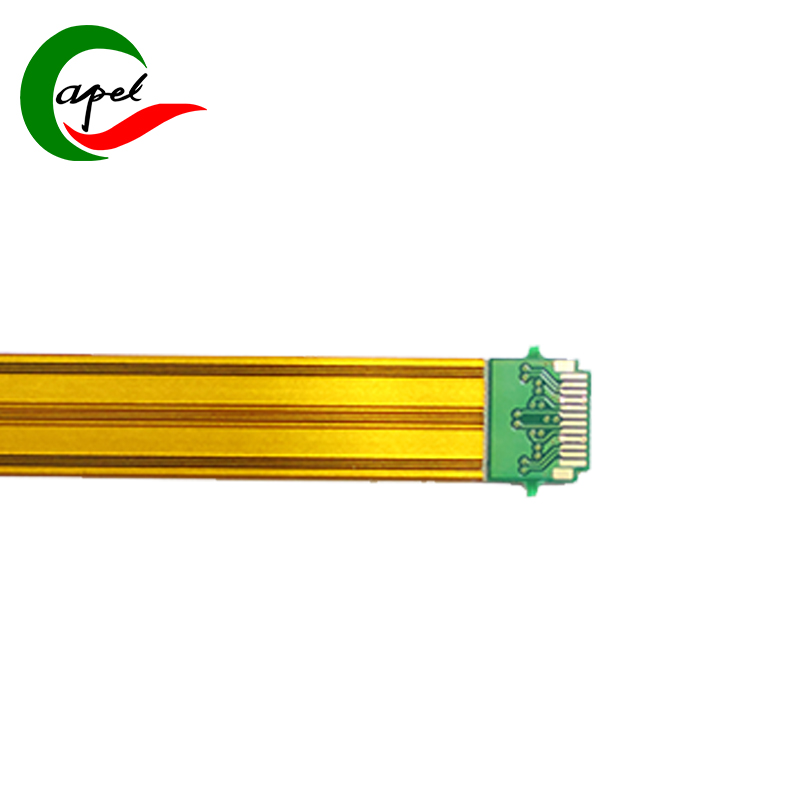

Adopting a 5-layer rigid-flex synergy structure, it perfectly balances the performance needs and space constraints of LCD TVs: the 0.268mm optimized flexible layer offers excellent bending resilience and fatigue resistance, flexibly fitting narrow wiring channels inside TV bezels and connection points between screens and motherboards. It easily avoids wiring interference, compatible with installation requirements of different LCD TV forms (ultra-thin, curved models); the 0.9mm lightweight yet stable rigid layer meets the long-term stable operation standards of LCD TVs, reliably supporting core components such as driver chips, high-speed signal interfaces, and backlight control ICs. This achieves efficient integration of "flexible adaptation to compact layouts + rigid fixation of precision parts". With precise dimensions of 124.64*8.3mm, the ultra-slender design perfectly aligns with the "narrower, thinner bezel" trend of LCD TVs, saving valuable space and providing ample room for screen expansion and heat dissipation optimization.
Key advantages directly address LCD TV scenario pain points, demonstrating robust performance: ① Full-board immersion gold finish delivers superior low signal loss, oxidation resistance, and wear resistance, with low contact resistance ensuring high-speed, distortion-free transmission of 4K/8K UHD image signals and audio signals. It reduces signal attenuation and delay, resulting in sharper images and more immersive sound; ② Solder mask with white characters + through-hole design features clear markings, facilitating automated module assembly, rapid debugging, and post-maintenance. It adapts to the mass production needs of LCD TVs, significantly improving production efficiency and operational convenience; ③ 5-layer scientific wiring layout rationally separates signal, power, and ground layers, building a strong anti-interference system. It effectively suppresses electromagnetic interference (EMI) and signal crosstalk, ensuring seamless collaboration across the full process of "signal reception - processing - output" even in the complex internal circuit environment of LCD TVs. This guarantees the stability of image and audio quality, meeting the performance requirements of high-end TVs.
Backed by Caboer’s profound technical accumulation in consumer electronics PCBs and strict quality control system, this 5-layer rigid-flex board can be customized for wiring density, interface types, backlight control adaptation, and other requirements based on LCD TV resolution, size, and functional needs. Paired with rapid prototyping and efficient SMT assembly services, it helps customers shorten R&D cycles and accelerate time-to-market. Whether for the narrow bezel design of ultra-thin full-screen TVs, the complex wiring needs of curved TVs, or the UHD signal transmission demands of high-end models, it serves as the "core signal hub" of LCD TVs with stable performance—helping brands enhance product competitiveness and seize mid-to-high-end market share!
