Order 16 layer Rigid-Flex PCB Boards Turnkey PCB Assembly for Military Aerospace Online-Pcb Manufacturer, Rigid Flex Pcb, Flexible Pcb

Order 16 layer Rigid-Flex PCB Boards Turnkey PCB Assembly for Military Aerospace Online

Short Description:

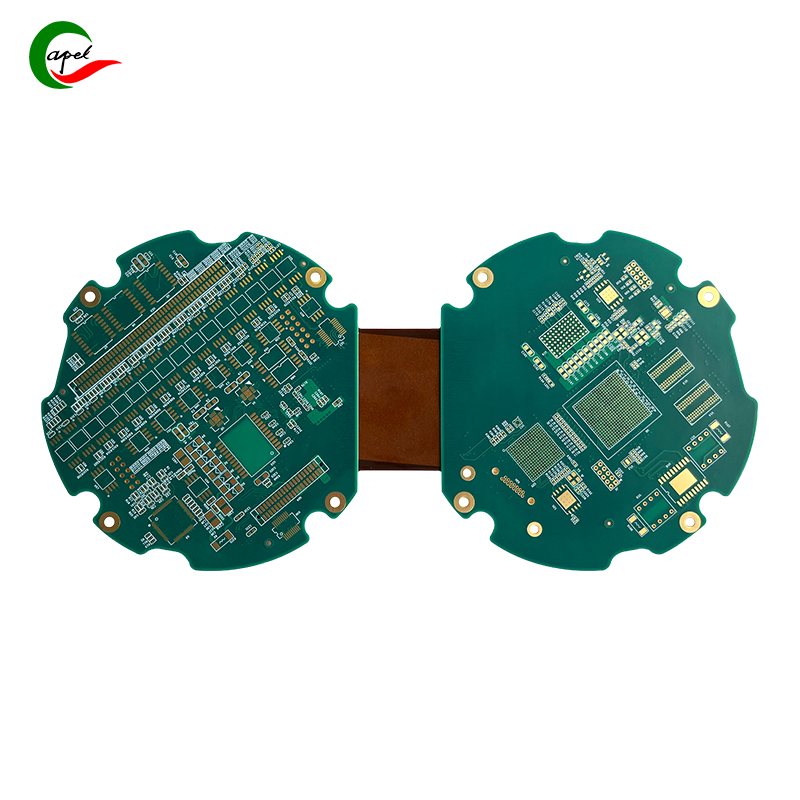

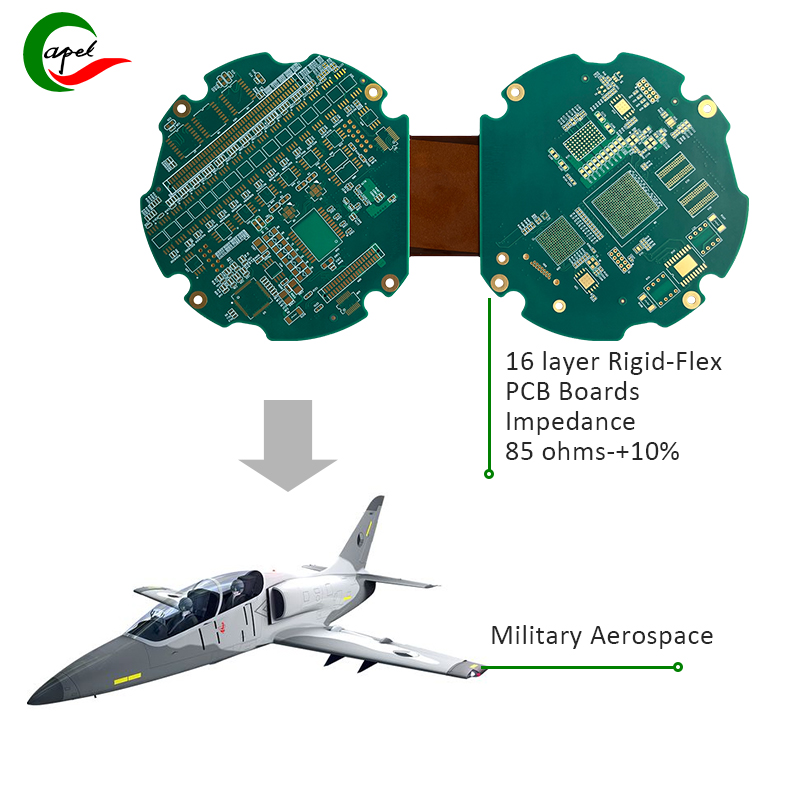

Product Type:16 layer Rigid-Flex PCB Boards
Applications:Military Aerospace
Line width and line spacing：0.15mm/0.15mm
Board thickness：2.0MM+-10%
Layers Stackup:5+6+5
Minimum Aperture:0.2mm
Copper Hole Thickness:35UM
Surface Treatment:ENIG 2-3uin

Impedance:/
Warpage:≦0.5%

Tolerance Accuracy:±0.1MM

Capel’s Service:

Support Custom 1-30 Layer FPC Flexible PCB,2-32 Layer Rigid-Flex Circuit Boards,1-60 Layer Rigid PCB,HDI PCB,Reliable Quick Turn PCB Prototyping,Fast Turn SMT PCB Assembly

Industry We Service:

Medical Device, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…

How Capel's 16 Layer Rigid-Flex PCB Boards Turnkey PCB Assembly Provides Reliability Solutions for Military Aerospace manufacturers
-Capel with 15 years of professional technical experience-

Introducing our latest product, a 16-layer rigid-flex PCB board designed for military aerospace applications. With its advanced features and high-quality construction, this product has revolutionized the industry.

The 16-layer rigid-flex PCB board is manufactured using state-of-the-art technology to ensure durability and reliability even in the most demanding environments. The boards feature 0.15mm/0.15mm line width and spacing for precise and accurate connections. The 2.0MM+-10% plate thickness ensures stability and sturdiness, making it ideal for military-grade applications.

The 5+6+5 stackup enables efficient signal transmission and impedance control, ensuring optimal performance. A minimum aperture size of 0.2mm enables efficient signal routing and increases design flexibility. 35UM copper via thickness provides strong conductivity and ensures consistent performance.

In order to increase the service life of the product, the 16-layer soft-hard board adopts ENIG 2-3uin surface treatment. This treatment protects the circuit board from corrosion and oxidation, extending its service life. In addition, the board has a warpage rate as low as ≤0.5%, making it highly resistant to bending or deformation.

With a tolerance accuracy of ±0.1MM, these boards provide the precision and accuracy required to meet the stringent requirements of military aerospace applications. They are designed to withstand extreme conditions and perform flawlessly even in high-stress environments.

To meet customer needs, our 16-layer rigid-flex boards are available for online ordering. With our convenient and user-friendly online platform, customers can easily place their orders and benefit from our efficient turnaround times. Our turnkey PCB assembly services ensure a hassle-free experience, providing complete solutions to our customers.

With their advanced features, high-quality build and easy ordering process, our 16-layer rigid-flex PCB boards are the perfect solution for customers looking for reliable and durable products. Place your order today and experience the difference our 16-layer rigid-flex PCB boards can make for your application.

Capel Flexible PCB & Rigid-Flex PCB Process Capability

Category	Process Capability	Category	Process Capability
Production Type	Single layer FPC / Double layers FPC Multi-layer FPC / Aluminum PCBs Rigid-Flex PCB	Layers Number	1-30 layers FPC 2-32 layers Rigid-FlexPCB 1-60 layers Rigid PCB HDI Boards
Max Manufacture Size	Single layer FPC 4000mm Double layers FPC 1200mm Multi-layers FPC 750mm Rigid-Flex PCB 750mm	Insulating Layer Thickness	27.5um /37.5/ 50um /65/ 75um / 100um / 125um / 150um
Board Thickness	FPC 0.06mm - 0.4mm Rigid-Flex PCB 0.25 - 6.0mm	Tolerance of PTH Size	±0.075mm
Surface Finish	Immersion Gold/Immersion Silver/Gold Plating/Tin Plating/OSP	Stiffener	FR4 / PI / PET / SUS / PSA/Alu
Semicircle Orifice Size	Min 0.4mm	Min Line Space/ width	0.045mm/0.045mm
Thickness Tolerance	±0.03mm	Impedance	50Ω-120Ω
Copper Foil Thickness	9um/12um / 18um / 35um / 70um/100um	Impedance Controlled Tolerance	±10%
Tolerance of NPTH Size	±0.05mm	The Min Flush Width	0.80mm
Min Via Hole	0.1mm	Implement Standard	GB / IPC-650 / IPC-6012 / IPC-6013II / IPC-6013III

Capel manufactures customized high-precision Rigid Flexible Circuit Board / Flexible PCB / HDI PCB with 15 years of experience with our professionalism

2 Layer Flexible PCB Boards Stackup

4 Layer Rigid-Flex PCB Stackup

8 layer HDI PCBs

Testing And Inspection Equipment

Microscope Testing

AOI Inspection

2D Testing

Impedance Testing

RoHS Testing

Flying Probe

Horizontal Tester

Bending Teste

Capel provide customers customized PCB Service with 15 years of experience

Owning 3 factories for Flexible PCB&Rigid-Flex PCB, Rigid PCB, DIP/SMT Assembly;
300+Engineers Provide technical support for Pre-sales and after-sales online;
1-30 layers FPC, 2-32 layers Rigid-FlexPCB, 1-60 layers Rigid PCB
HDI Boards, Flexible PCB (FPC), Rigid-Flex PCBs, Multilayer PCBs, Single-sided PCB, Double-Sided Circuit Boards, Hollow Boards, Rogers PCB, rf PCB, Metal Core PCB, Special Process Boards, Ceramic PCB, Aluminum PCB, SMT & PTH Assembly, PCB Prototype Service.
Provide 24-hour PCB Prototyping service,Small Batches of circuit boards will be delivered in 5-7 days, Mass Production of PCB boards will be delivered in 2-3 weeks;
Industries we service: Medical Devices, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…
Our Production Capacity:
FPC and Rigid-Flex PCBs production capacity can reach more than 150000sqm per month,
PCB production capacity can reach 80000sqm per month,
PCB Assembling capacity at 150,000,000 components per month.
Our teams of engineers and researchers are dedicated to fulfilling your requirements with precision and professionalism.
