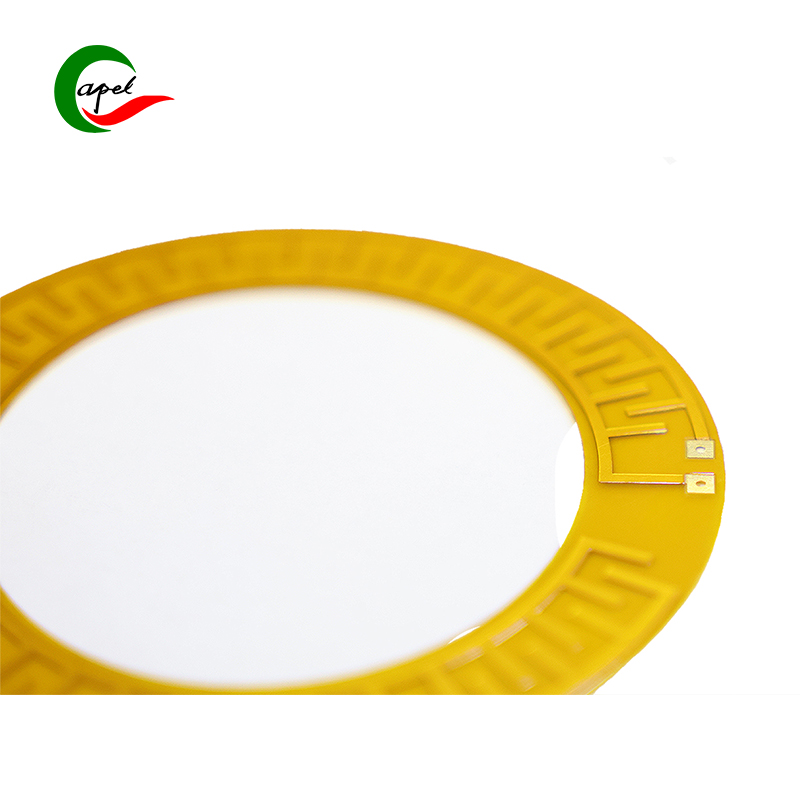

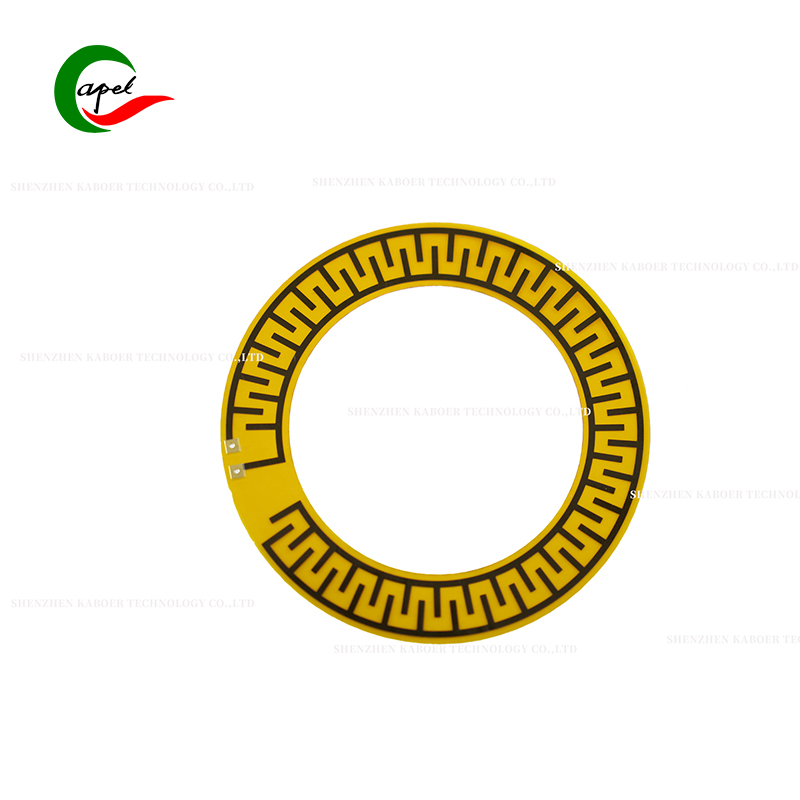

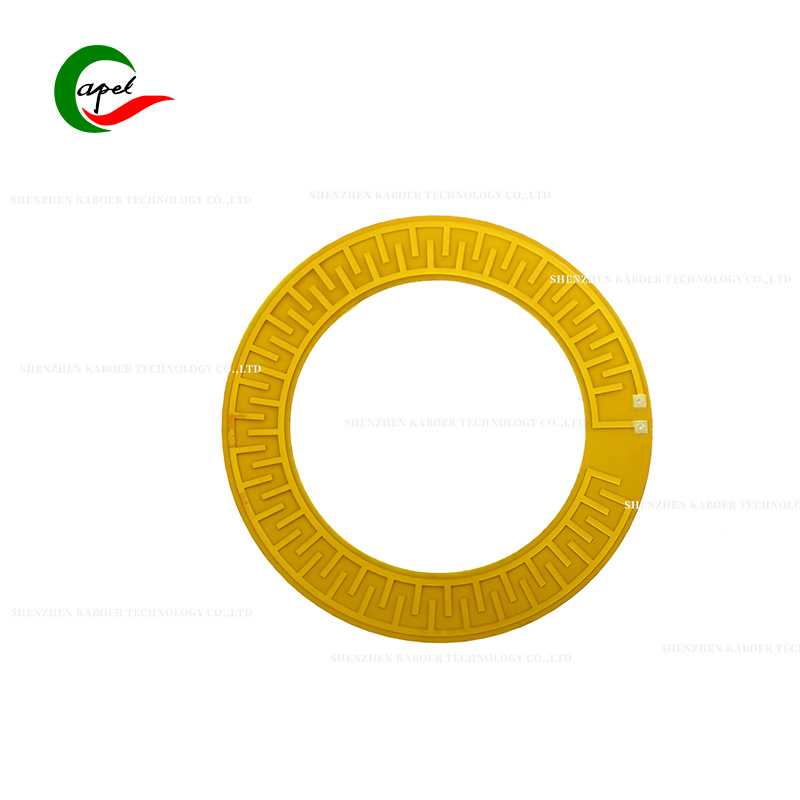

Single-Sided Flexible PCB for Communication Equipment

Brief Introduction:

Type: Single-sided board

Surface Finish: Immersion gold

Number of Layers: 1 layer

Board Thickness: 0.06mm

Line Width/Spacing: 0.15mm, 0.15mm

Caboer Services:

Custom FPC flexible PCBs (1-30 layers), rigid-flex PCBs (2-32 layers), rigid PCBs (1-60 layers), reliable rapid turnaround PCB prototyping, fast SMT PCB assembly

Industries We Serve:

Medical Devices, IoT, TUT, Drones, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, Electric Vehicles, and more...

If you have related needs, please click the button below to send us an email.

Caboer’s Single-Sided Flexible PCB for Communication Equipment is a core circuit component tailored for communication products such as routers, IoT communication modules, portable communication terminals, and base station auxiliary devices. Centered on "ultra-thin flexibility + signal fidelity", it precisely meets the design demands of communication equipment—miniaturization, high density, and low loss. Adopting a 1-layer single-sided board structure with a thickness of only 0.06mm, its extreme thinness and excellent flexibility allow it to fit flexibly into narrow spaces, curved structures, or compact component layouts inside communication devices. It adds no extra volume or weight, adapting to the lightweight design needs of portable communication devices and micro IoT modules, while withstanding slight bending and vibration during equipment assembly and daily use, preventing circuit damage and ensuring the stability of communication links.

In terms of technical parameters and performance guarantees, the product offers two key advantages: ① Balanced Precision Wiring: Supporting a balanced layout with 0.15mm trace width and 0.15mm spacing, it balances circuit integration efficiency and signal transmission stability. It can stably carry high-frequency signals (such as Wi-Fi 6, Bluetooth, and 5G auxiliary signals), control commands, and low-power power transmission of communication equipment. The reasonable line spacing effectively reduces signal crosstalk, avoids signal attenuation during high-frequency transmission, and ensures smooth and accurate data transmission; ② Immersion Gold Surface Optimization: The full-board immersion gold process creates a uniform and dense gold layer, providing superior oxidation resistance, low contact resistance, and wear resistance. It enhances contact stability with communication chips and connectors, resists humidity changes and slight dust erosion in the working environment of communication equipment, and extends product service life—especially suitable for communication scenarios with high-frequency plugging/unplugging or long-term continuous operation. The product uses flexible substrates with excellent high-frequency characteristics, featuring good temperature resistance (-40℃ to 85℃) and anti-aging properties, which can adapt to different working environments of indoor and outdoor communication equipment, providing a stable circuit foundation for signal transmission.

As a professional PCB solution provider, Caboer offers comprehensive customization capabilities: personalized development of 1-30 layer FPC flexible PCBs, 2-32 layer rigid-flex PCBs, and 1-60 layer rigid PCBs. Complemented by reliable rapid-turnaround PCB prototyping and fast SMT PCB assembly services, we help communication equipment clients accelerate product R&D and mass production processes. Our services span diverse industries, including Medical Devices, IoT, TUT, Drones, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, Electric Vehicles, and more. With stable product quality, flexible customization solutions, and efficient delivery capabilities, we have become a trusted partner for customers across various sectors.

If you have customization needs for communication equipment PCBs or other field-related PCBs, please click the button below to send us an email. Caboer will provide you with a tailored solution.
