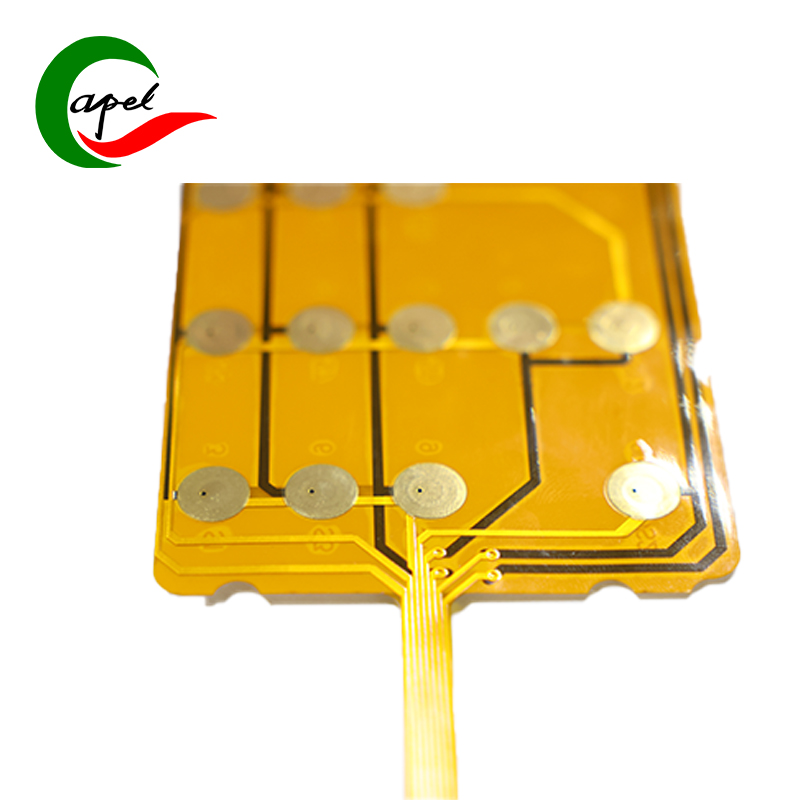

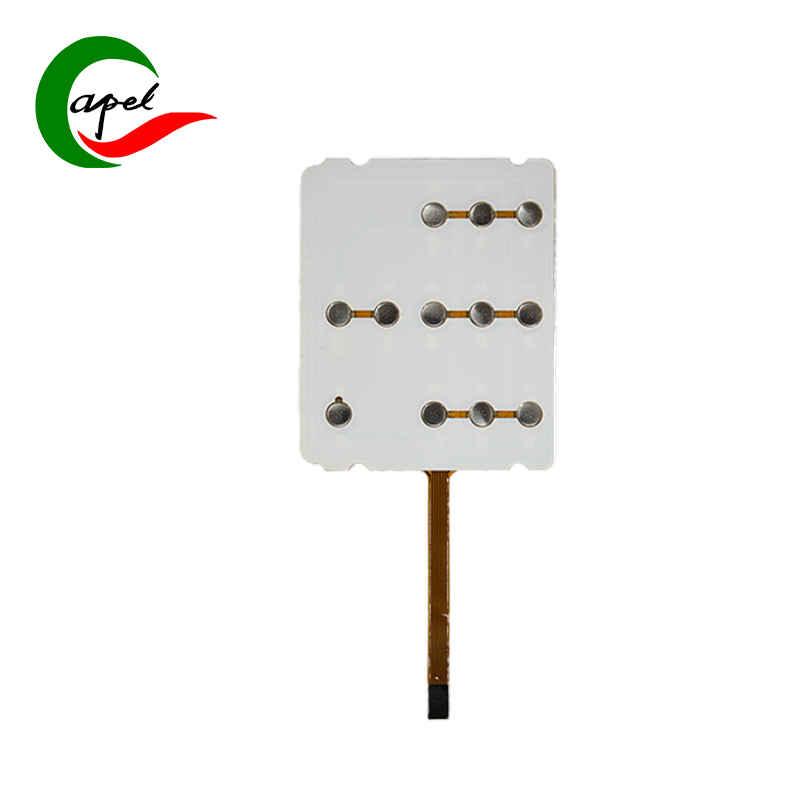

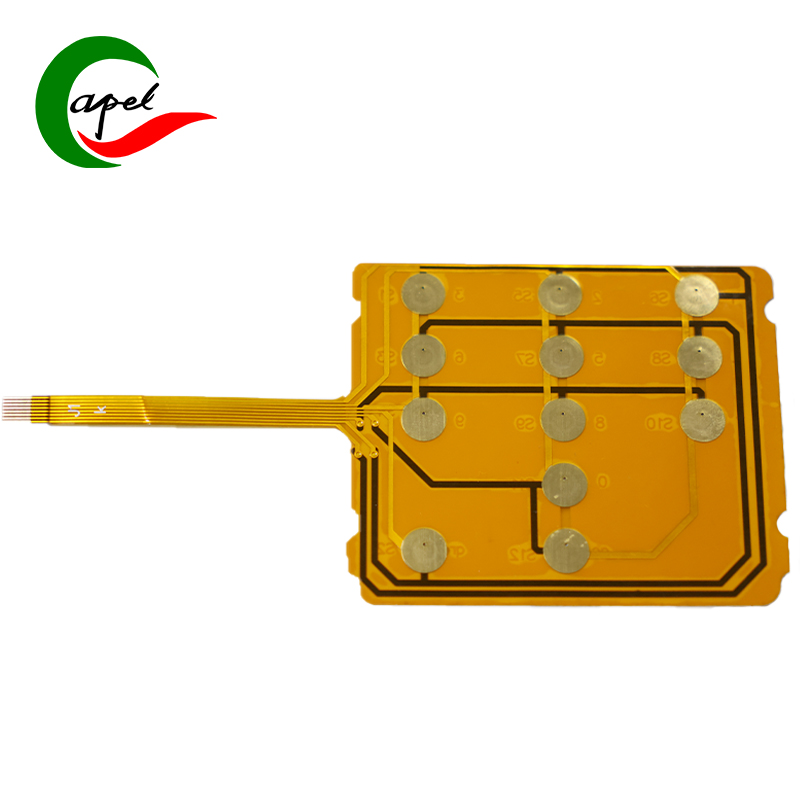

Caboer’s Single-Sided Keypad Flexible PCB is a core circuit component tailored for key modules of various electronic devices (such as medical equipment operation panels, automotive central control keys, industrial control keyboards, consumer electronics physical keyboards, and IoT terminal keys). Centered on "press-resistant + precise response", it meets the requirements of high-frequency keypad operation and stable operation. Adopting a 1-layer single-sided board design with a precisely controlled thickness of 0.2mm, it balances moderate flexibility and mechanical stability, enabling flexible fit to key layouts, curved panels, or compact installation spaces of different devices. It does not affect the pressing feel and rebound effect of the keys while withstanding mechanical stress from long-term high-frequency presses, preventing circuit breakage or poor contact, and adapting to the strict reliability requirements for keys in medical equipment, automotive, industrial control, and other fields.
In terms of technical parameters and performance guarantees, the product offers two key advantages: ① Balanced Precision Wiring: Supporting a balanced layout with 0.15mm trace width and 0.15mm spacing, it can integrate signal lines of multiple keys in a limited space, enabling independent transmission of multi-channel key commands. The reasonable line spacing effectively reduces signal crosstalk, ensuring precise response of key operations, avoiding false triggers or signal delays, and adapting to the design needs of multi-key matrix layouts; ② Immersion Gold Surface Optimization: The full-board immersion gold process creates a uniform and dense gold layer, featuring superior wear resistance, oxidation resistance, and low contact resistance. It significantly enhances the contact stability of key contacts, resists erosion from long-term pressing friction, environmental humidity, and dust, extending the service life of the keyboard—especially suitable for scenarios requiring long-term stable operation such as medical equipment and industrial control. The product uses high-quality flexible substrates with good temperature resistance (-40℃ to 85℃) and anti-aging properties, fully complying with reliability standards for electronic equipment in multiple fields, and can seamlessly adapt to keypad applications in different environments.
As a professional PCB solution provider, Caboer offers comprehensive customization capabilities: personalized development of 1-30 layer FPC flexible PCBs, 2-32 layer rigid-flex PCBs, and 1-60 layer rigid PCBs. Complemented by reliable rapid-turnaround PCB prototyping and fast SMT PCB assembly services, we help customers across various industries accelerate the R&D and mass production of key modules and complete machine products. Our services span diverse industries, including Medical Devices, IoT, TUT, Drones, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, Electric Vehicles, and more. With stable product quality, flexible customization solutions, and efficient delivery capabilities, we have become a trusted partner for keypad PCB components.
If you have customization needs for keypad modules or other key-related device PCBs, please click the button below to send us an email. Caboer will provide you with a tailored solution.
Caboer Flexible PCB & Rigid-Flex PCB Process Capability
| Category | Process Capability | Category | Process Capability |
| Production Type | Single layer FPC / Double layers FPC
Multi-layer FPC / Aluminum PCBs
Rigid-Flex PCB | Layers Number | 1-30 layers FPC
2-32 layers Rigid-FlexPCB
1-60 layers Rigid PCB
HDI Boards |
| Max Manufacture Size | Single layer FPC 4000mm
Double layers FPC 1200mm
Multi-layers FPC 750mm
Rigid-Flex PCB 750mm | Insulating Layer
Thickness | 27.5um /37.5/ 50um /65/ 75um / 100um /
125um / 150um |
| Board Thickness | FPC 0.06mm - 0.4mm
Rigid-Flex PCB 0.25 - 6.0mm | Tolerance of PTH
Size | ±0.075mm |
| Surface Finish | Immersion Gold/Immersion
Silver/Gold Plating/Tin Plating/OSP | Stiffener | FR4 / PI / PET / SUS / PSA/Alu |
| Semicircle Orifice Size | Min 0.4mm | Min Line Space/ width | 0.045mm/0.045mm |
| Thickness Tolerance | ±0.03mm | Impedance | 50Ω-120Ω |
| Copper Foil Thickness | 9um/12um / 18um / 35um / 70um/100um | Impedance
Controlled
Tolerance | ±10% |
Tolerance of NPTH
Size | ±0.05mm | The Min Flush Width | 0.80mm |
| Min Via Hole | 0.1mm | Implement
Standard | GB / IPC-650 / IPC-6012 / IPC-6013II /
IPC-6013III |
Caboer manufactures customized high-precision Rigid Flexible Circuit Board / Flexible PCB / HDI PCB with 15 years of experience with our professionalism
2 Layer Flexible PCB Boards Stackup
4 Layer Rigid-Flex PCB Stackup
Testing And Inspection Equipment
Caboer provide customers customized PCB Service with 15 years of experience
Owning 3 factories for Flexible PCB&Rigid-Flex PCB, Rigid PCB, DIP/SMT Assembly;
300+Engineers Provide technical support for Pre-sales and after-sales online;
1-30 layers FPC, 2-32 layers Rigid-FlexPCB, 1-60 layers Rigid PCB
HDI Boards, Flexible PCB (FPC), Rigid-Flex PCBs, Multilayer PCBs, Single-sided PCB, Double-Sided Circuit Boards, Hollow Boards, Rogers PCB, rf PCB, Metal Core PCB, Special Process Boards, Ceramic PCB, Aluminum PCB, SMT & PTH Assembly, PCB Prototype Service.
Provide 24-hour PCB Prototyping service,Small Batches of circuit boards will be delivered in 5-7 days, Mass Production of PCB boards will be delivered in 2-3 weeks;
Industries we service: Medical Devices, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…
Our Production Capacity:
FPC and Rigid-Flex PCBs production capacity can reach more than 150000sqm per month,
PCB production capacity can reach 80000sqm per month,
PCB Assembling capacity at 150,000,000 components per month.
Our teams of engineers and researchers are dedicated to fulfilling your requirements with precision and professionalism.
