3 layer rigid flex pcb | automotive control circuit board Design

Short Description:

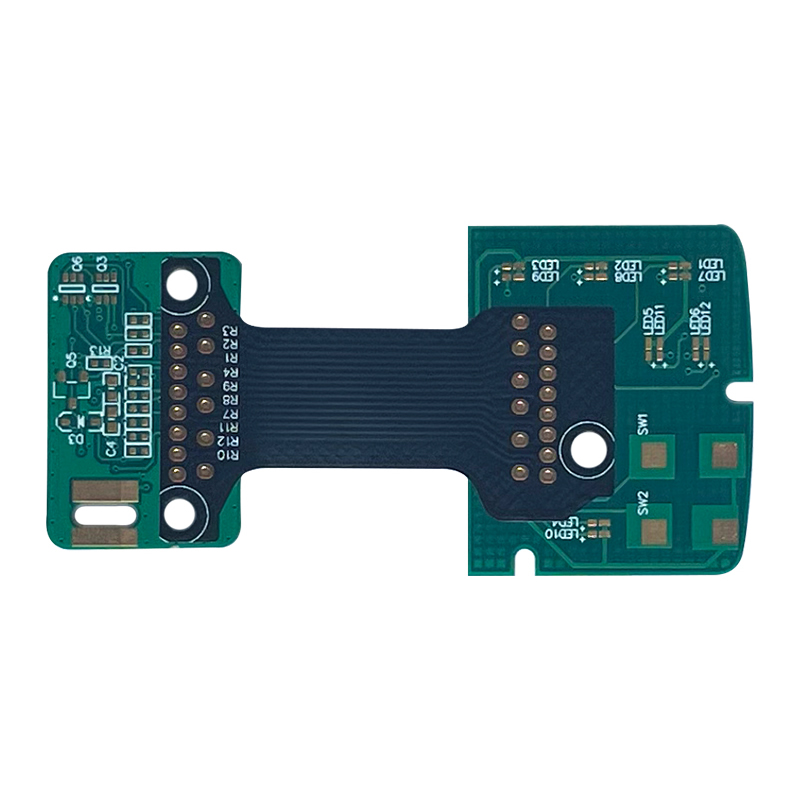

Product Type: 3 layer Flex-Rigid PCB
Applications: Car
Material: PI,Copper,adhesive，FR4
Line width and line spacing：0.15mm/0.25mm
Board thickness：1.0mm +/- 0.03mm
Minimum hole:0.2mm
Surface Treatment:ENIG 2-3uin

Impedance:/

Tolerance tolerance:±0.1MM

Capel’s Service:

Support Custom 1-30 Layer FPC Flexible PCB,2-32 Layer Rigid-Flex Circuit Boards,1-60 Layer Rigid PCB,HDI PCB,Reliable Quick Turn PCB Prototyping,Fast Turn SMT PCB Assembly

Industry We Service:

Medical Device, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…

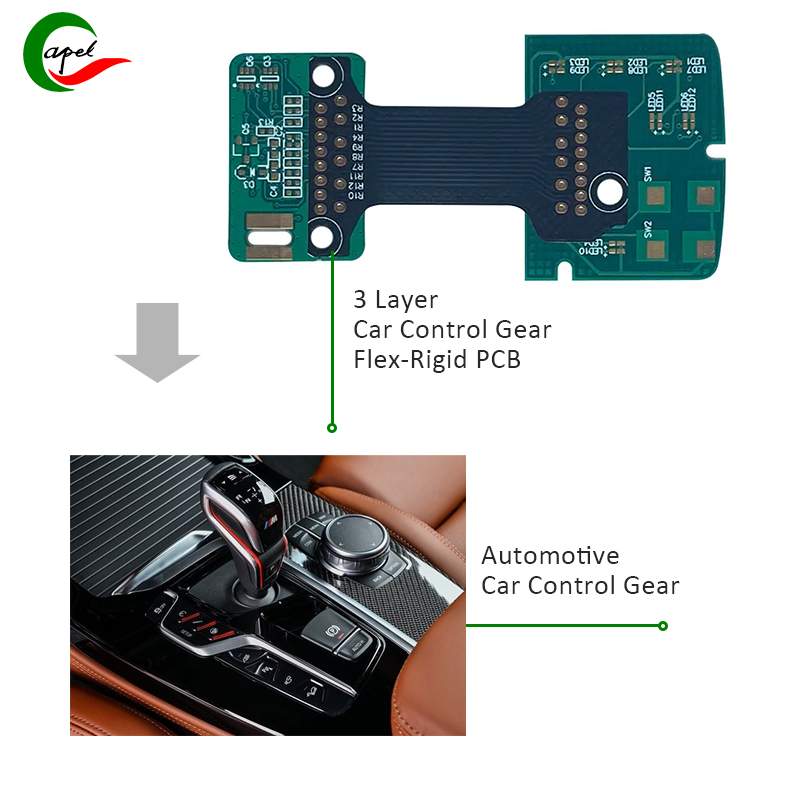

Use 3-layer Rigid-Flexible PCB to Solve the Complexity of Automotive Control Circuit Board Design
-Capel with 15 years of professional technical experience-

Introducing our latest innovation in PCB technology - 3-layer hard-software PCB. This cutting-edge product is designed for automotive applications where controlling the complexity of circuit board designs can pose significant challenges. By using a combination of flexible and rigid materials such as PI, copper, adhesives and FR4, our 3-layer rigid and flexible PCBs provide the perfect solution to simplify the design and manufacturing process of automotive control circuit boards.

One of the main advantages of using our 3-layer rigid-flex PCBs in automotive applications is the ability to achieve a high level of integration in a compact and space-saving form factor. The flexibility of the PCB allows it to bend and fold to fit into tight and unconventional spaces within the vehicle, while the rigidity of the PCB provides stability and support to components and connections. This makes it ideal for use in modern vehicles, where space is at a premium and the need to efficiently utilize every available inch is crucial.

In addition to flexibility and rigidity, our 3-layer rigid and flexible PCBs provide superior performance and reliability. The line width and line spacing of this PCB are 0.15mm/0.25mm, the board thickness is 1.0mm+/-0.03mm, and the minimum aperture is 0.2mm.

It can handle high-speed and high-frequency signals commonly found in automotive control systems. In addition, the surface treatment of ENIG 2-3uin ensures excellent electrical conductivity and corrosion resistance, making it suitable for use in the harsh and demanding environments of automotive applications.

When it comes to manufacturing precision, our 3-layer rigid-flex PCBs are second to none. With a tolerance of ±0.1mm, you can be confident that every PCB produced meets the exacting standards required for automotive control circuit boards. This level of precision is critical to ensuring the seamless operation of in-vehicle electronic systems and ultimately contributes to the vehicle’s overall safety and performance.

All in all, our 3-layer rigid-flex PCB is the perfect choice for anyone looking to streamline the automotive control circuit board design and manufacturing process. Its combination of flexibility, rigidity, performance and precision makes it the ideal solution to the challenges of the automotive industry. When you use our 3-layer rigid-flex PCBs, you can be confident that you are using a high-quality, reliable and innovative product that will meet and exceed your expectations. Try it today and see the difference for yourself.

Capel Flexible PCB & Rigid-Flex PCB Process Capability

Category	Process Capability	Category	Process Capability
Production Type	Single layer FPC / Double layers FPC Multi-layer FPC / Aluminum PCBs Rigid-Flex PCB	Layers Number	1-30 layers FPC 2-32 layers Rigid-FlexPCB 1-60 layers Rigid PCB HDI Boards
Max Manufacture Size	Single layer FPC 4000mm Double layers FPC 1200mm Multi-layers FPC 750mm Rigid-Flex PCB 750mm	Insulating Layer Thickness	27.5um /37.5/ 50um /65/ 75um / 100um / 125um / 150um
Board Thickness	FPC 0.06mm - 0.4mm Rigid-Flex PCB 0.25 - 6.0mm	Tolerance of PTH Size	±0.075mm
Surface Finish	Immersion Gold/Immersion Silver/Gold Plating/Tin Plating/OSP	Stiffener	FR4 / PI / PET / SUS / PSA/Alu
Semicircle Orifice Size	Min 0.4mm	Min Line Space/ width	0.045mm/0.045mm
Thickness Tolerance	±0.03mm	Impedance	50Ω-120Ω
Copper Foil Thickness	9um/12um / 18um / 35um / 70um/100um	Impedance Controlled Tolerance	±10%
Tolerance of NPTH Size	±0.05mm	The Min Flush Width	0.80mm
Min Via Hole	0.1mm	Implement Standard	GB / IPC-650 / IPC-6012 / IPC-6013II / IPC-6013III

Capel manufactures customized high-precision Rigid Flexible Circuit Board / Flexible PCB / HDI PCB with 15 years of experience with our professionalism

2 Layer Flexible PCB Boards Stackup

4 Layer Rigid-Flex PCB Stackup

8 layer HDI PCBs

Testing And Inspection Equipment

Microscope Testing

AOI Inspection

2D Testing

Impedance Testing

RoHS Testing

Flying Probe

Horizontal Tester

Bending Teste

Capel provide customers customized PCB Service with 15 years of experience

Owning 3 factories for Flexible PCB&Rigid-Flex PCB, Rigid PCB, DIP/SMT Assembly;
300+Engineers Provide technical support for Pre-sales and after-sales online;
1-30 layers FPC, 2-32 layers Rigid-FlexPCB, 1-60 layers Rigid PCB
HDI Boards, Flexible PCB (FPC), Rigid-Flex PCBs, Multilayer PCBs, Single-sided PCB, Double-Sided Circuit Boards, Hollow Boards, Rogers PCB, rf PCB, Metal Core PCB, Special Process Boards, Ceramic PCB, Aluminum PCB, SMT & PTH Assembly, PCB Prototype Service.
Provide 24-hour PCB Prototyping service,Small Batches of circuit boards will be delivered in 5-7 days, Mass Production of PCB boards will be delivered in 2-3 weeks;
Industries we service: Medical Devices, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…
Our Production Capacity:
FPC and Rigid-Flex PCBs production capacity can reach more than 150000sqm per month,
PCB production capacity can reach 80000sqm per month,
PCB Assembling capacity at 150,000,000 components per month.
Our teams of engineers and researchers are dedicated to fulfilling your requirements with precision and professionalism.
