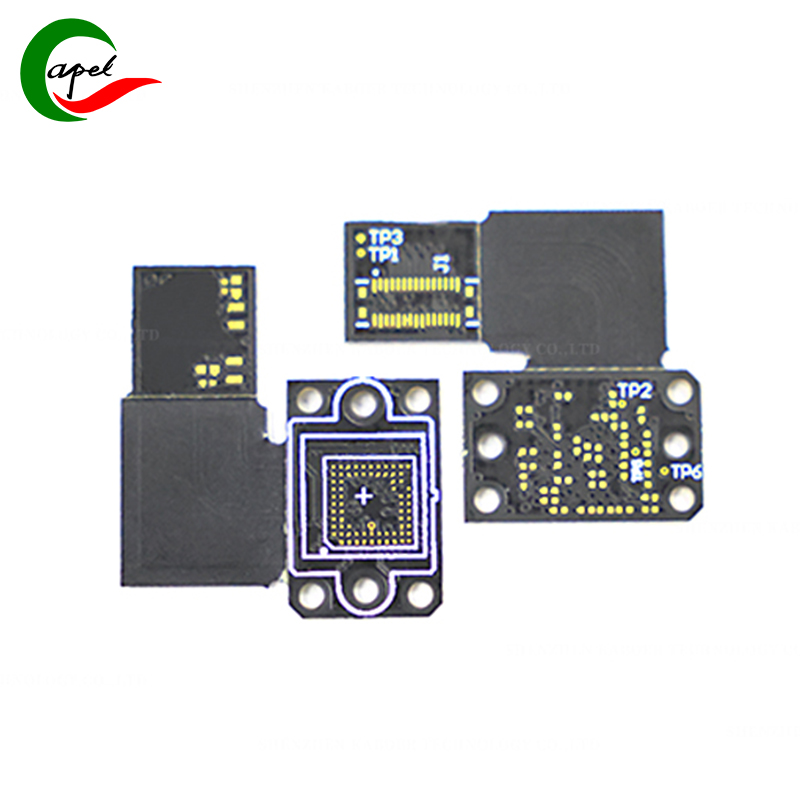

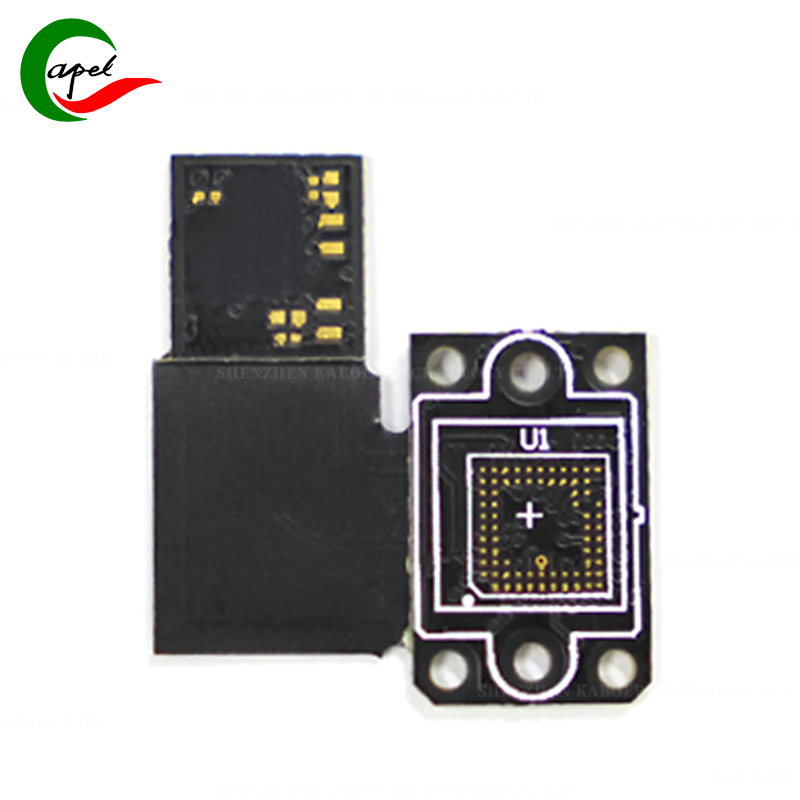

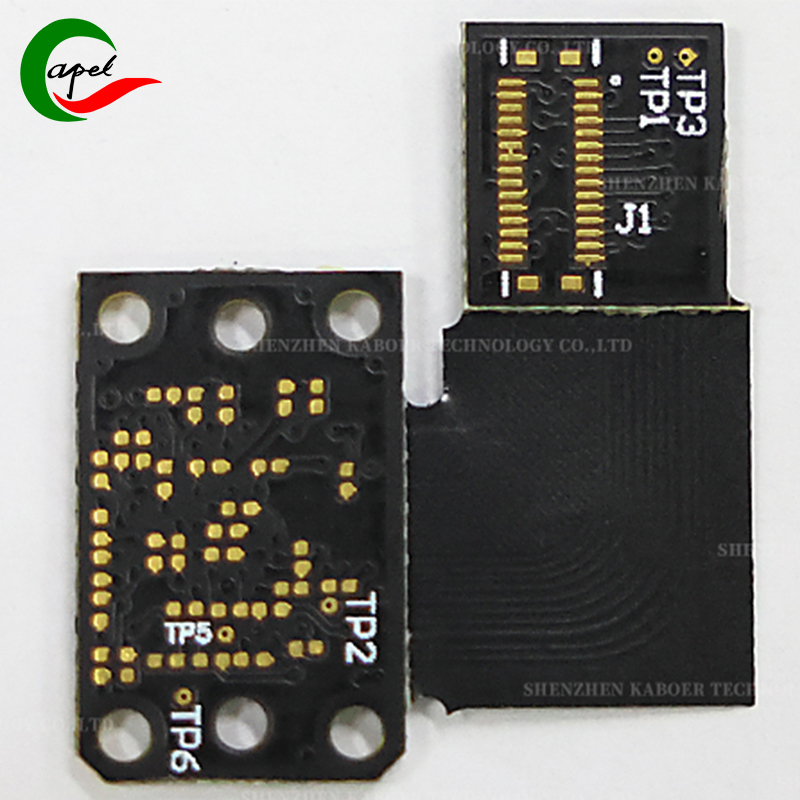

Digital Camera 4-Layer Rigid-Flex PCB

Brief Introduction:

Type: Multilayer Rigid-Flex Board

Surface Finish: Immersion Gold

Number of Layers: 4 Layers

Board Thickness: Flexible Layer: 0.12mm, Rigid Layer: 0.4mm

Solder Mask: White characters, through-hole board

Dimensions: 24*20.62mm

Caboer Services:

Custom manufacturing of 1-30 layer FPC flexible PCBs, 2-32 layer rigid-flex PCBs, and 1-60 layer rigid PCBs. Reliable rapid turnaround PCB prototyping and fast SMT PCB assembly.

Industries Served:

Medical devices, IoT, TUT, drones, aviation, automotive, telecommunications, consumer electronics, military, aerospace, industrial control, artificial intelligence, electric vehicles, and more...

If you have related needs, please click the button below to send us an email.

Caboer’s 4-Layer Rigid-Flex PCB for Digital Cameras is tailored for compact digital cameras, portable imaging modules, and mini photography devices. It precisely meets cameras’ core demands for extreme miniaturization, high integration, and stable image signals, serving as the core circuit carrier for small-sized imaging equipment.

Adopting a 4-layer rigid-flex structure: the 0.12mm flexible layer offers excellent bending toughness, fitting flexibly into the ultra-narrow spaces and complex wiring paths inside cameras without occupying redundant volume. The 0.4mm ultra-thin rigid layer is stable, reliably supporting core components such as image sensors and microprocessors, enabling efficient integration of "flexible adaptation to compact layouts + rigid fixation of precision parts". With precise dimensions of 24*20.62mm, the extremely compact design fully aligns with the lightweight and miniaturized development trend of compact digital cameras.

Key advantages: ① Full-board immersion gold, featuring oxidation resistance and low contact resistance, ensuring high-speed and accurate transmission of high-definition image signals to avoid picture distortion; ② Solder mask with white characters + through-hole design, clear markings for easy assembly and debugging of micro-modules, enhancing soldering reliability and post-maintenance efficiency; ③ 4-layer wiring with scientific partitioning, effectively suppressing electromagnetic interference, adapting to multi-module collaboration of image acquisition, data processing, and signal output, meeting high integration requirements.

Caboer provides customization for 1-30 layer FPC, 2-32 layer rigid-flex PCBs, paired with rapid prototyping and SMT assembly services. Covering consumer electronics, portable devices and other fields, we deliver highly adaptive solutions for compact digital camera R&D.
