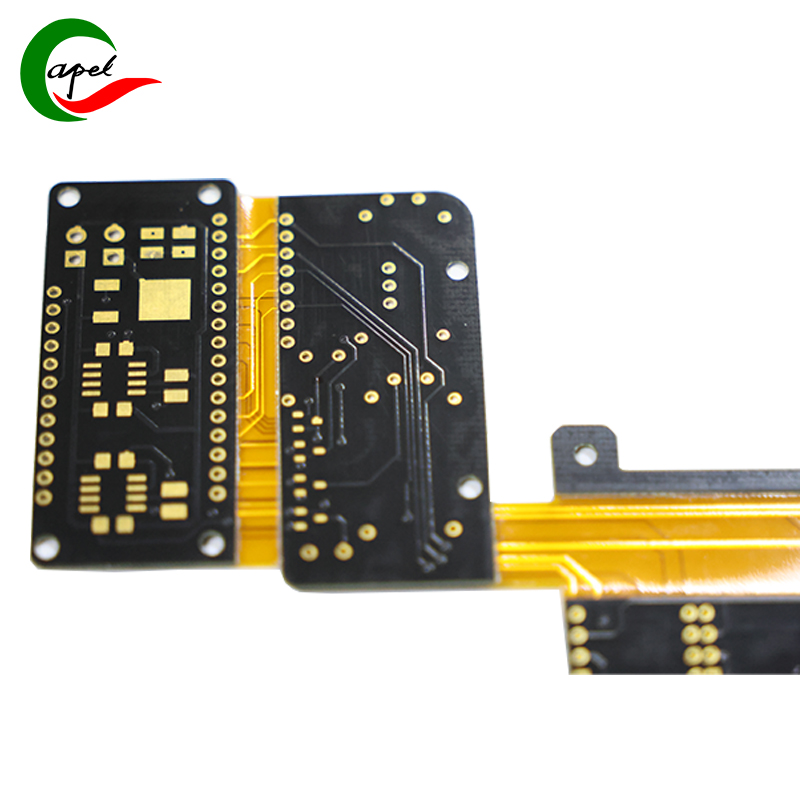

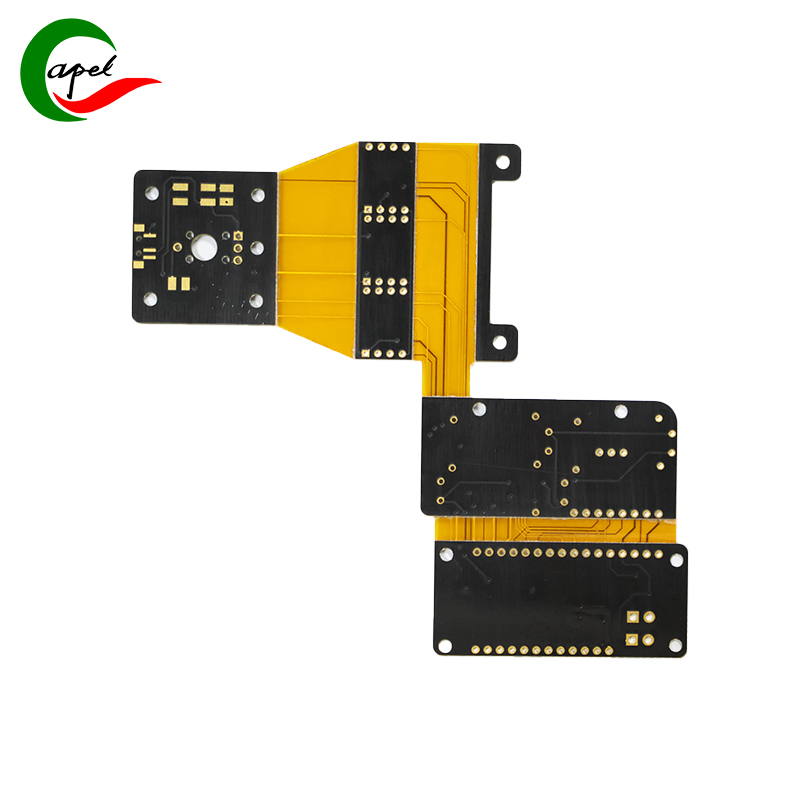

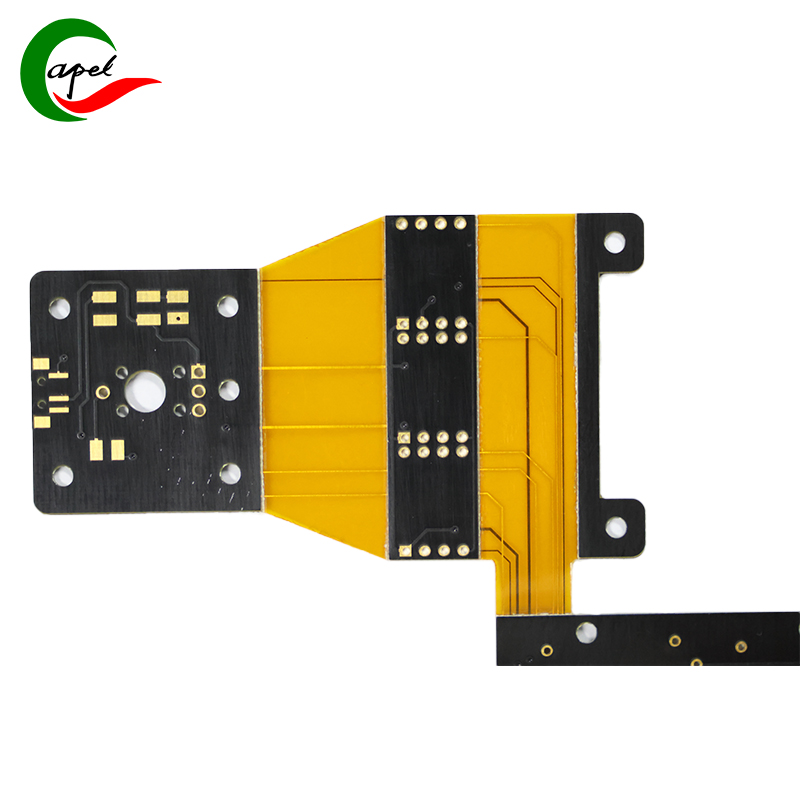

Industrial Equipment 4-Layer Rigid-Flex PCB

Brief Introduction:

Type: Multilayer Rigid-Flex Board

Surface Finish: Immersion Gold

Number of Layers: 4 Layers

Board Thickness: Flexible Layer: 0.185mm, Rigid Layer: 0.8mm

Solder Mask: White characters, through-hole board

Dimensions: 106.82*116.96mm

Caboer Services:

Custom 1-30 layer FPC flexible PCBs, 2-32 layer rigid-flex PCBs, 1-60 layer rigid PCBs, reliable rapid turnaround PCB prototyping, fast SMT PCB assembly

Industries Served:

Medical devices, IoT, TUT, drones, aviation, automotive, telecommunications, consumer electronics, military, aerospace, industrial control, artificial intelligence, electric vehicles, and more...

If you have related needs, please click the button below to send us an email.

Caboer’s 4-Layer Rigid-Flex PCB for Industrial Equipment is tailored for machine tool control systems, automated production line modules, industrial sensor terminals, and other devices. It precisely meets the core demands of industrial scenarios: resistance to harsh working conditions, high integration, and stable transmission, serving as a core circuit solution for industrial electronic equipment.

Adopting a 4-layer rigid-flex structure: the 0.185mm flexible layer offers excellent bending toughness and vibration resistance, flexibly fitting complex wiring paths, narrow spaces, and connections between moving parts inside industrial equipment to avoid interference. The 0.8mm rigid layer is stable yet lightweight, reliably supporting core components such as industrial chips, connectors, and power modules, enabling efficient integration of "flexible adaptation to complex structures + rigid fixation of core parts". With precise dimensions of 106.82*116.96mm, it fits the modular layout of industrial equipment without occupying redundant space.

Key advantages: ① Full-board immersion gold, featuring oxidation resistance, resistance to oil and dust erosion, and low contact resistance to ensure stable transmission of industrial control signals and data; ② Solder mask with white characters + through-hole design, clear markings for easy assembly, debugging, and post-maintenance, enhancing soldering reliability and operational efficiency; ③ 4-layer wiring with scientific partitioning, effectively suppressing electromagnetic interference, adapting to multi-module collaboration of industrial equipment (signal collection, data processing, execution control), and meeting high integration requirements.

Caboer provides customization for 1-30 layer FPC, 2-32 layer rigid-flex PCBs, paired with rapid prototyping and SMT assembly services. Covering industrial control, intelligent manufacturing, IoT and other fields, we deliver high-reliability solutions for industrial equipment R&D.

Caboer Flexible PCB & Rigid-Flex PCB Process Capability

Category	Process Capability	Category	Process Capability
Production Type	Single layer FPC / Double layers FPC Multi-layer FPC / Aluminum PCBs Rigid-Flex PCB	Layers Number	1-30 layers FPC 2-32 layers Rigid-FlexPCB 1-60 layers Rigid PCB HDI Boards
Max Manufacture Size	Single layer FPC 4000mm Double layers FPC 1200mm Multi-layers FPC 750mm Rigid-Flex PCB 750mm	Insulating Layer Thickness	27.5um /37.5/ 50um /65/ 75um / 100um / 125um / 150um
Board Thickness	FPC 0.06mm - 0.4mm Rigid-Flex PCB 0.25 - 6.0mm	Tolerance of PTH Size	±0.075mm
Surface Finish	Immersion Gold/Immersion Silver/Gold Plating/Tin Plating/OSP	Stiffener	FR4 / PI / PET / SUS / PSA/Alu
Semicircle Orifice Size	Min 0.4mm	Min Line Space/ width	0.045mm/0.045mm
Thickness Tolerance	±0.03mm	Impedance	50Ω-120Ω
Copper Foil Thickness	9um/12um / 18um / 35um / 70um/100um	Impedance Controlled Tolerance	±10%
Tolerance of NPTH Size	±0.05mm	The Min Flush Width	0.80mm
Min Via Hole	0.1mm	Implement Standard	GB / IPC-650 / IPC-6012 / IPC-6013II / IPC-6013III

Caboer manufactures customized high-precision Rigid Flexible Circuit Board / Flexible PCB / HDI PCB with 15 years of experience with our professionalism

2 Layer Flexible PCB Boards Stackup

4 Layer Rigid-Flex PCB Stackup

8 layer HDI PCBs

Testing And Inspection Equipment

Microscope Testing

AOI Inspection

2D Testing

Impedance Testing

RoHS Testing

Flying Probe

Horizontal Tester

Bending Teste

Caboer provide customers customized PCB Service with 15 years of experience

Owning 3 factories for Flexible PCB&Rigid-Flex PCB, Rigid PCB, DIP/SMT Assembly;
300+Engineers Provide technical support for Pre-sales and after-sales online;
1-30 layers FPC, 2-32 layers Rigid-FlexPCB, 1-60 layers Rigid PCB
HDI Boards, Flexible PCB (FPC), Rigid-Flex PCBs, Multilayer PCBs, Single-sided PCB, Double-Sided Circuit Boards, Hollow Boards, Rogers PCB, rf PCB, Metal Core PCB, Special Process Boards, Ceramic PCB, Aluminum PCB, SMT & PTH Assembly, PCB Prototype Service.
Provide 24-hour PCB Prototyping service,Small Batches of circuit boards will be delivered in 5-7 days, Mass Production of PCB boards will be delivered in 2-3 weeks;
Industries we service: Medical Devices, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…
Our Production Capacity:
FPC and Rigid-Flex PCBs production capacity can reach more than 150000sqm per month,
PCB production capacity can reach 80000sqm per month,
PCB Assembling capacity at 150,000,000 components per month.
Our teams of engineers and researchers are dedicated to fulfilling your requirements with precision and professionalism.
