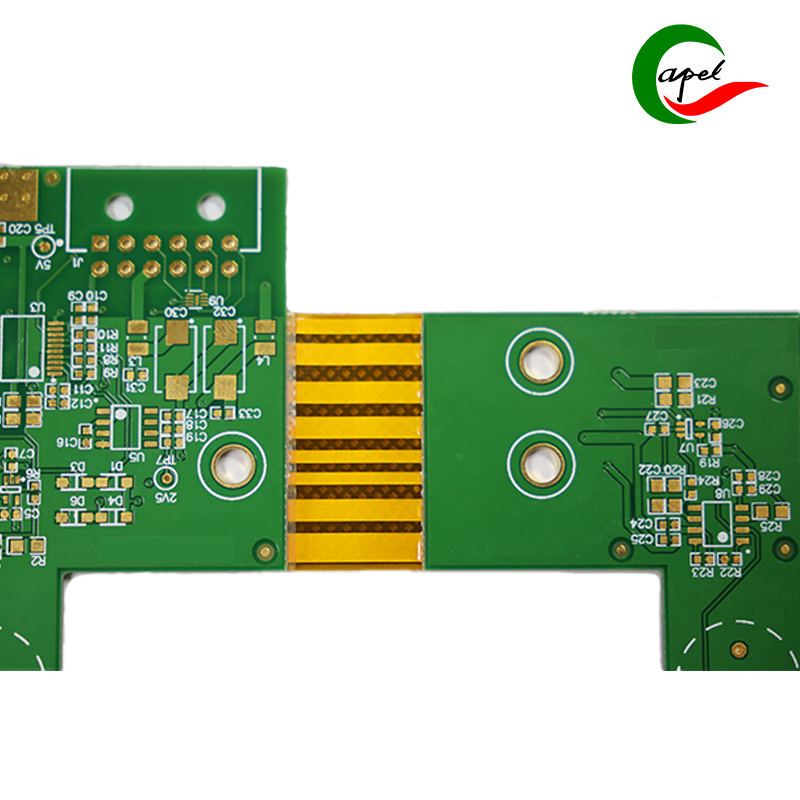

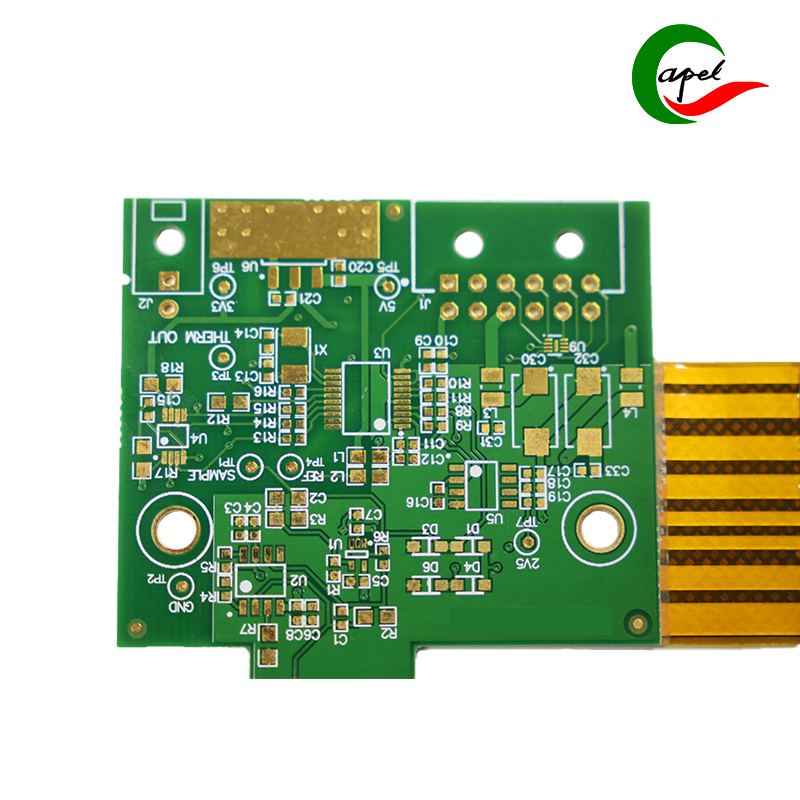

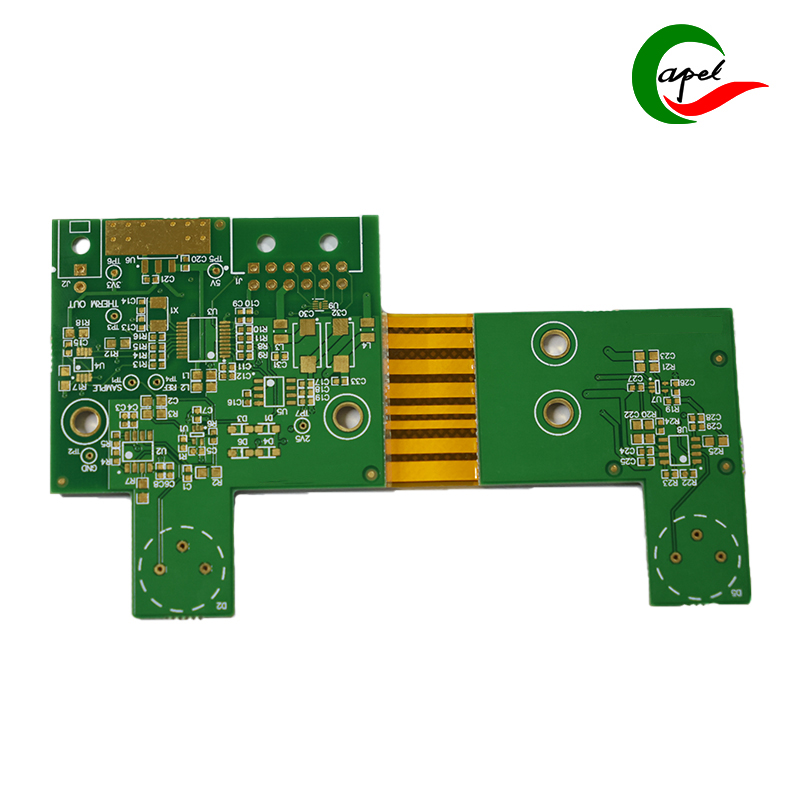

Industrial Equipment 4-Layer Rigid-Flex PCB

Brief Introduction:

Type: Multilayer Rigid-Flex Board

Surface Finish: Immersion Gold

Number of Layers: 4 Layers

Board Thickness: Flex: 0.16mm, Rigid: 1.6mm

Solder Mask: White characters, through-hole board

Kaboer Services:

Custom 1-30 layer FPC flexible PCBs, 2-32 layer rigid-flex PCBs, 1-60 layer rigid PCBs, reliable rapid turnaround PCB prototyping, fast SMT PCB assembly

Industries We Serve:

Medical devices, IoT, TUT, drones, aviation, automotive, telecommunications, consumer electronics, military, aerospace, industrial control, artificial intelligence, electric vehicles, and more...

If you have related needs, please click the button below to send us an email.

Kaboer’s 4-Layer Rigid-Flex PCB for Industrial Equipment is a high-adaptability circuit component tailored for industrial-grade devices such as machine tool controls, automated production lines, industrial sensor modules, and industrial control terminals. Combining the dual advantages of "rigid section for stable positioning + flexible section for flexible wiring", it perfectly copes with harsh industrial conditions including vibration, dust, and wide temperature ranges. Adopting a 4-layer multilayer rigid-flex structure, the flexible section is only 0.16mm thick, offering excellent bending performance and space adaptability to flexibly navigate complex wiring paths, narrow spaces, and connections between moving parts inside industrial equipment, avoiding wiring interference. The rigid section is 1.6mm thick with robust structure, reliably supporting high-power components, connectors, and heat dissipation modules to ensure installation accuracy and mechanical stability. It achieves an integrated solution of "rigid sections for fixed assembly and flexible sections for dynamic adaptation", aligning with the integrated and modular design trends of industrial equipment.

In terms of technical parameters and performance guarantees, the product offers three key advantages: ① Immersion Gold Surface Protection: The full-board immersion gold process creates a uniform and dense gold layer, providing superior oxidation resistance, wear resistance, and corrosion resistance. It can withstand oil contamination, dust, humidity changes, and chemical medium erosion in industrial environments, reducing contact resistance and ensuring stable transmission of high-frequency control signals and power current, avoiding equipment failures caused by environmental erosion; ② Practical Process Design: Equipped with solder mask with white characters, the clear and distinguishable markings facilitate assembly, commissioning, maintenance, and inspection of industrial equipment, improving production and maintenance efficiency. The through-hole board design enhances the reliability of component soldering and heat dissipation performance, adapting to the high-power and long-term continuous operation requirements of industrial equipment; ③ 4-Layer High-Density Integration: The 4-layer wiring structure enables scientific partitioning of power supply, signals, and grounding, effectively reducing electromagnetic interference and signal crosstalk. It supports multi-module collaboration of industrial equipment (such as sensor data collection, actuator control, and communication transmission), meeting the strict requirements of industrial control systems for high-density circuit integration and signal integrity. The product uses industrial-grade temperature-resistant substrates, operating within a wide temperature range of -40℃ to 125℃, with good vibration resistance, anti-aging properties, and oil resistance, fully complying with reliability standards for industrial electronic equipment (such as IEC 61000 series EMC standards).

As a professional PCB solution provider, Kaboer offers comprehensive customization capabilities for industrial-grade PCBs: personalized development of 1-30 layer FPC flexible PCBs, 2-32 layer rigid-flex PCBs, and 1-60 layer rigid PCBs. Complemented by reliable rapid-turnaround PCB prototyping and fast SMT PCB assembly services, we help industrial equipment clients accelerate product R&D and mass production processes. Our services span diverse industries, including medical devices, IoT, TUT, drones, aviation, automotive, telecommunications, consumer electronics, military, aerospace, industrial control, artificial intelligence, electric vehicles, and more. With rigorous industrial-grade quality control, flexible customization solutions, and efficient delivery capabilities, we have become a trusted partner in the industrial control sector.

If you have customization needs for rigid-flex PCBs for industrial equipment or other fields, please click the button below to send us an email. Kaboer will provide you with a tailored solution.

Kaboer Flexible PCB & Rigid-Flex PCB Process Capability

Category	Process Capability	Category	Process Capability
Production Type	Single layer FPC / Double layers FPC Multi-layer FPC / Aluminum PCBs Rigid-Flex PCB	Layers Number	1-30 layers FPC 2-32 layers Rigid-FlexPCB 1-60 layers Rigid PCB HDI Boards
Max Manufacture Size	Single layer FPC 4000mm Double layers FPC 1200mm Multi-layers FPC 750mm Rigid-Flex PCB 750mm	Insulating Layer Thickness	27.5um /37.5/ 50um /65/ 75um / 100um / 125um / 150um
Board Thickness	FPC 0.06mm - 0.4mm Rigid-Flex PCB 0.25 - 6.0mm	Tolerance of PTH Size	±0.075mm
Surface Finish	Immersion Gold/Immersion Silver/Gold Plating/Tin Plating/OSP	Stiffener	FR4 / PI / PET / SUS / PSA/Alu
Semicircle Orifice Size	Min 0.4mm	Min Line Space/ width	0.045mm/0.045mm
Thickness Tolerance	±0.03mm	Impedance	50Ω-120Ω
Copper Foil Thickness	9um/12um / 18um / 35um / 70um/100um	Impedance Controlled Tolerance	±10%
Tolerance of NPTH Size	±0.05mm	The Min Flush Width	0.80mm
Min Via Hole	0.1mm	Implement Standard	GB / IPC-650 / IPC-6012 / IPC-6013II / IPC-6013III

Kaboer manufactures customized high-precision Rigid Flexible Circuit Board / Flexible PCB / HDI PCB with 15 years of experience with our professionalism

2 Layer Flexible PCB Boards Stackup

4 Layer Rigid-Flex PCB Stackup

8 layer HDI PCBs

Testing And Inspection Equipment

Microscope Testing

AOI Inspection

2D Testing

Impedance Testing

RoHS Testing

Flying Probe

Horizontal Tester

Bending Teste

Kaboer provide customers customized PCB Service with 15 years of experience

Owning 3 factories for Flexible PCB&Rigid-Flex PCB, Rigid PCB, DIP/SMT Assembly;
300+Engineers Provide technical support for Pre-sales and after-sales online;
1-30 layers FPC, 2-32 layers Rigid-FlexPCB, 1-60 layers Rigid PCB
HDI Boards, Flexible PCB (FPC), Rigid-Flex PCBs, Multilayer PCBs, Single-sided PCB, Double-Sided Circuit Boards, Hollow Boards, Rogers PCB, rf PCB, Metal Core PCB, Special Process Boards, Ceramic PCB, Aluminum PCB, SMT & PTH Assembly, PCB Prototype Service.
Provide 24-hour PCB Prototyping service,Small Batches of circuit boards will be delivered in 5-7 days, Mass Production of PCB boards will be delivered in 2-3 weeks;
Industries we service: Medical Devices, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…
Our Production Capacity:
FPC and Rigid-Flex PCBs production capacity can reach more than 150000sqm per month,
PCB production capacity can reach 80000sqm per month,
PCB Assembling capacity at 150,000,000 components per month.
Our teams of engineers and researchers are dedicated to fulfilling your requirements with precision and professionalism.
