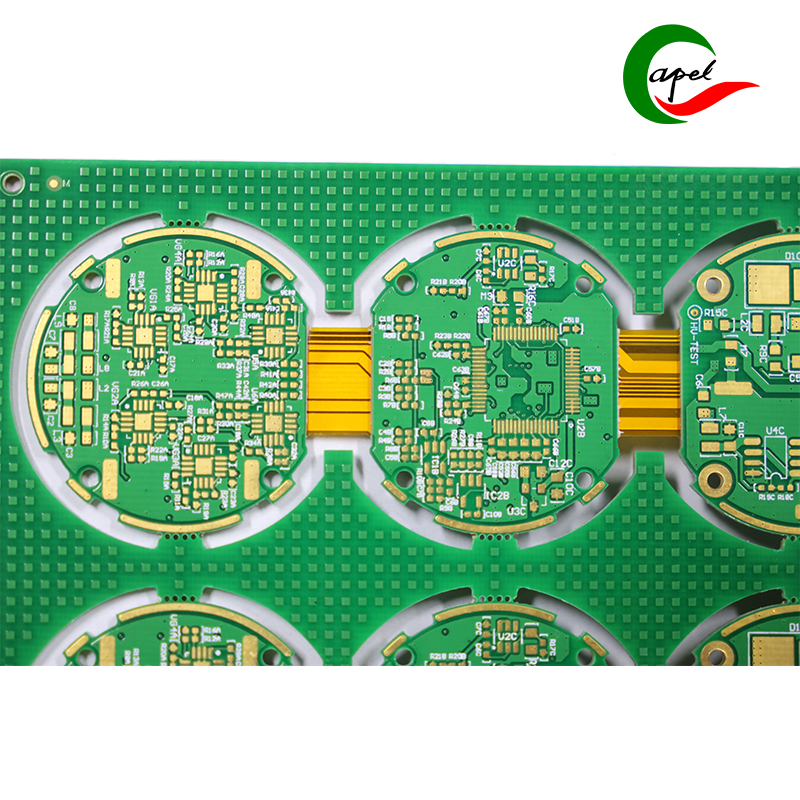

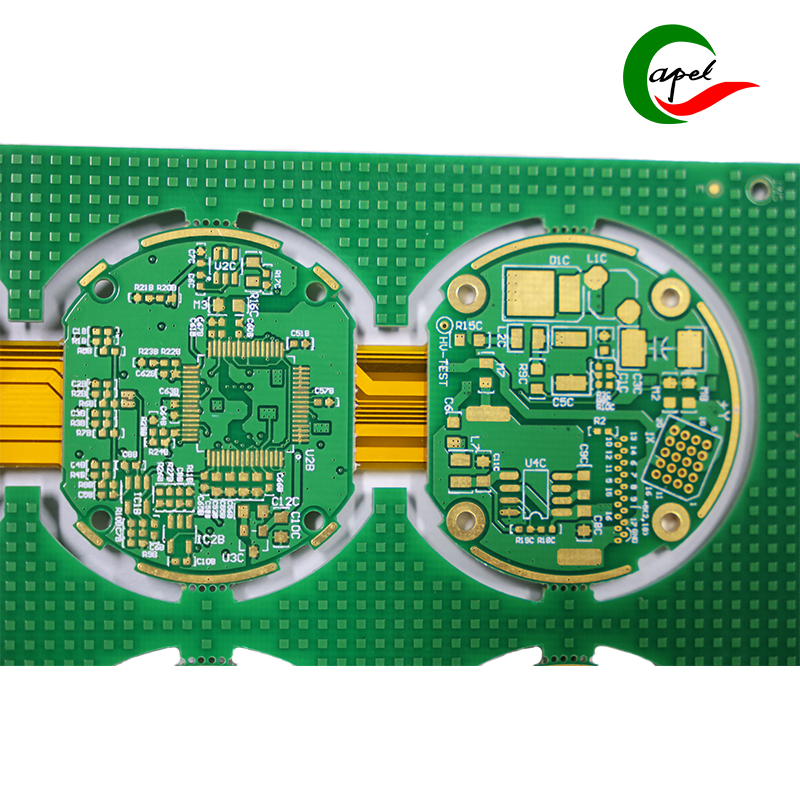

Medical Device 4-Layer Rigid-Flex PCB

Brief Introduction:

Type: Multilayer Rigid-Flex Board

Surface Finish: Immersion Gold

Number of Layers: 4 Layers

Board Thickness: Flex: 0.15mm, Rigid: 0.8mm

Solder Mask: White characters, through-hole board

Caboer Services:

Custom 1-30 layer FPC flexible PCBs, 2-32 layer rigid-flex PCBs, 1-60 layer rigid PCBs, reliable rapid turnaround PCB prototyping, fast SMT PCB assembly

Industries We Serve:

Medical devices, IoT, TUT, drones, aviation, automotive, telecommunications, consumer electronics, military, aerospace, industrial control, artificial intelligence, electric vehicles, and more...

If you have related needs, please click the button below to send us an email.

Caboer’s 4-Layer Rigid-Flex PCB for Medical Devices is a core circuit component tailored for high-end medical products such as portable diagnostic instruments, minimally invasive therapeutic devices, vital sign monitors, and precision medical sensor modules. Featuring an integrated design of "flexible adaptation + rigid stability", it perfectly meets the core demands of medical equipment—miniaturization, high integration, and high reliability. Adopting a 4-layer multilayer rigid-flex structure, the flexible section is only 0.15mm thick, offering extreme thinness and excellent bending performance. It can flexibly navigate narrow spaces, curved structures, and connections between moving parts inside medical devices, adapting to the slender cavities of minimally invasive instruments and compact layouts of portable equipment while avoiding wiring interference. The rigid section is 0.8mm thick, balancing structural stability and lightweight requirements, reliably supporting precision chips, connectors, sensors, and other components to ensure installation accuracy and mechanical strength. It achieves an efficient integrated solution of "flexible sections for dynamic adaptation and rigid sections for fixed assembly".

In terms of technical parameters and performance guarantees, the product offers four key advantages: ① Medical-Grade Surface Protection: The full-board immersion gold process creates a uniform and dense gold layer, providing superior oxidation resistance, disinfection corrosion resistance, and low contact resistance. It can withstand repeated wiping with common medical disinfectants (e.g., alcohol, glutaraldehyde, hydrogen peroxide), avoiding signal distortion caused by oxidation or corrosion, ensuring the accuracy of physiological data transmission, and meeting the reliability requirements of medical equipment for long-term high-frequency use; ② Practical Process Design: Equipped with solder mask with white characters, the clear and distinguishable markings facilitate assembly, commissioning, sterile processing, and later maintenance of medical equipment, improving production and clinical efficiency. The through-hole board design enhances the mechanical strength and heat dissipation performance of component soldering, adapting to the stable fixation needs of precision components in medical equipment and reducing the risk of detachment caused by vibration or movement; ③ 4-Layer High-Density Integration: The 4-layer wiring structure enables scientific partitioning of power supply, signals, and grounding, effectively reducing electromagnetic interference and signal crosstalk. It supports multi-module collaboration of medical equipment (such as physiological signal collection, data processing, and wireless transmission), meeting the strict requirements of precision diagnostic and therapeutic equipment for signal integrity; ④ Medical-Grade Compliance and Durability: Using medical-grade eco-friendly substrates free of harmful substances, it complies with ISO 10993 biocompatibility standards, suitable for medical scenarios involving indirect contact with the human body. The substrate features good temperature resistance (-40℃ to 85℃) and anti-aging properties, adapting to multi-scenario use such as hospital wards, operating rooms, and emergency sites, fully complying with the strict reliability standards of medical electronic equipment.

As a professional PCB solution provider, Caboer offers comprehensive customization capabilities for medical-grade PCBs: personalized development of 1-30 layer FPC flexible PCBs, 2-32 layer rigid-flex PCBs, and 1-60 layer rigid PCBs. Complemented by reliable rapid-turnaround PCB prototyping and fast SMT PCB assembly services, we help medical device clients accelerate product R&D and mass production processes. Our services span diverse industries, including medical devices, IoT, TUT, drones, aviation, automotive, telecommunications, consumer electronics, military, aerospace, industrial control, artificial intelligence, electric vehicles, and more. With rigorous medical-grade quality control, flexible customization solutions, and efficient delivery capabilities, we have become a trusted partner in the medical electronics sector.

If you have customization needs for rigid-flex PCBs for precision medical devices, please click the button below to send us an email. Caboer will provide you with a tailored solution.

Caboer Flexible PCB & Rigid-Flex PCB Process Capability

Category	Process Capability	Category	Process Capability
Production Type	Single layer FPC / Double layers FPC Multi-layer FPC / Aluminum PCBs Rigid-Flex PCB	Layers Number	1-30 layers FPC 2-32 layers Rigid-FlexPCB 1-60 layers Rigid PCB HDI Boards
Max Manufacture Size	Single layer FPC 4000mm Double layers FPC 1200mm Multi-layers FPC 750mm Rigid-Flex PCB 750mm	Insulating Layer Thickness	27.5um /37.5/ 50um /65/ 75um / 100um / 125um / 150um
Board Thickness	FPC 0.06mm - 0.4mm Rigid-Flex PCB 0.25 - 6.0mm	Tolerance of PTH Size	±0.075mm
Surface Finish	Immersion Gold/Immersion Silver/Gold Plating/Tin Plating/OSP	Stiffener	FR4 / PI / PET / SUS / PSA/Alu
Semicircle Orifice Size	Min 0.4mm	Min Line Space/ width	0.045mm/0.045mm
Thickness Tolerance	±0.03mm	Impedance	50Ω-120Ω
Copper Foil Thickness	9um/12um / 18um / 35um / 70um/100um	Impedance Controlled Tolerance	±10%
Tolerance of NPTH Size	±0.05mm	The Min Flush Width	0.80mm
Min Via Hole	0.1mm	Implement Standard	GB / IPC-650 / IPC-6012 / IPC-6013II / IPC-6013III

Caboer manufactures customized high-precision Rigid Flexible Circuit Board / Flexible PCB / HDI PCB with 15 years of experience with our professionalism

2 Layer Flexible PCB Boards Stackup

4 Layer Rigid-Flex PCB Stackup

8 layer HDI PCBs

Testing And Inspection Equipment

Microscope Testing

AOI Inspection

2D Testing

Impedance Testing

RoHS Testing

Flying Probe

Horizontal Tester

Bending Teste

Caboer provide customers customized PCB Service with 15 years of experience

Owning 3 factories for Flexible PCB&Rigid-Flex PCB, Rigid PCB, DIP/SMT Assembly;
300+Engineers Provide technical support for Pre-sales and after-sales online;
1-30 layers FPC, 2-32 layers Rigid-FlexPCB, 1-60 layers Rigid PCB
HDI Boards, Flexible PCB (FPC), Rigid-Flex PCBs, Multilayer PCBs, Single-sided PCB, Double-Sided Circuit Boards, Hollow Boards, Rogers PCB, rf PCB, Metal Core PCB, Special Process Boards, Ceramic PCB, Aluminum PCB, SMT & PTH Assembly, PCB Prototype Service.
Provide 24-hour PCB Prototyping service,Small Batches of circuit boards will be delivered in 5-7 days, Mass Production of PCB boards will be delivered in 2-3 weeks;
Industries we service: Medical Devices, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…
Our Production Capacity:
FPC and Rigid-Flex PCBs production capacity can reach more than 150000sqm per month,
PCB production capacity can reach 80000sqm per month,
PCB Assembling capacity at 150,000,000 components per month.
Our teams of engineers and researchers are dedicated to fulfilling your requirements with precision and professionalism.
