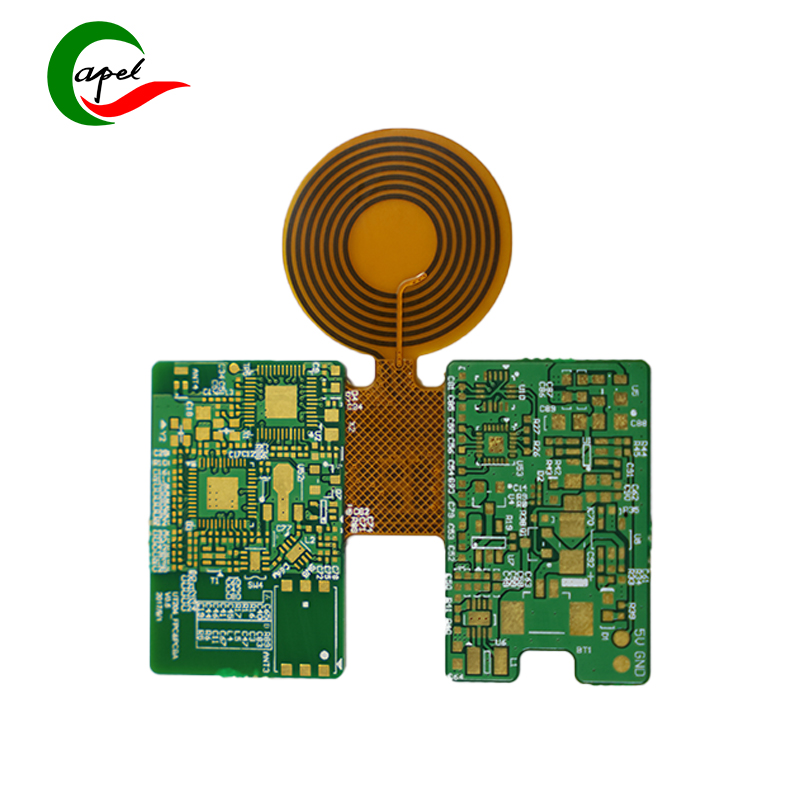

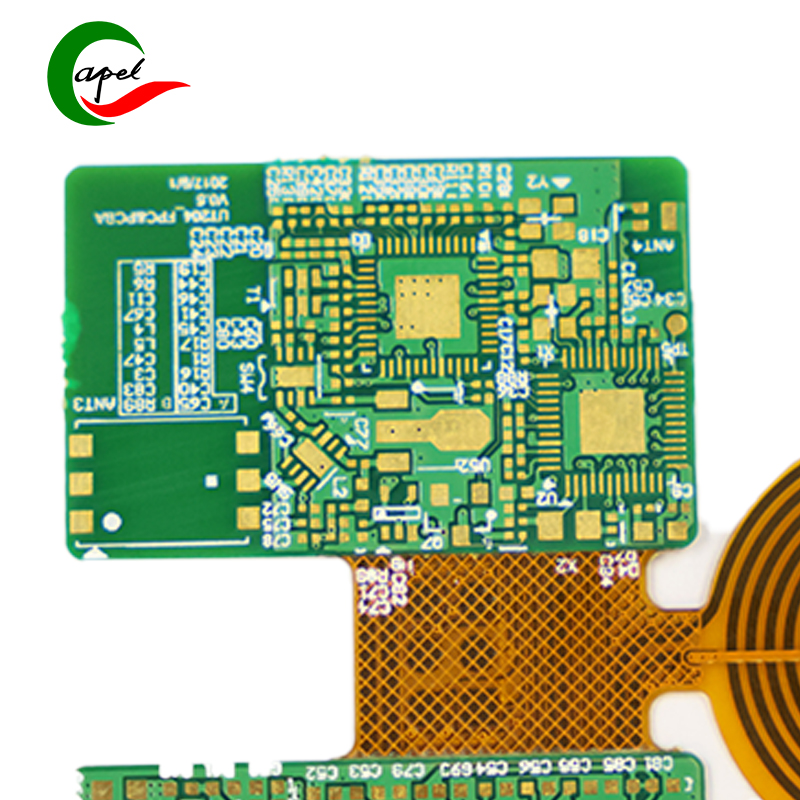

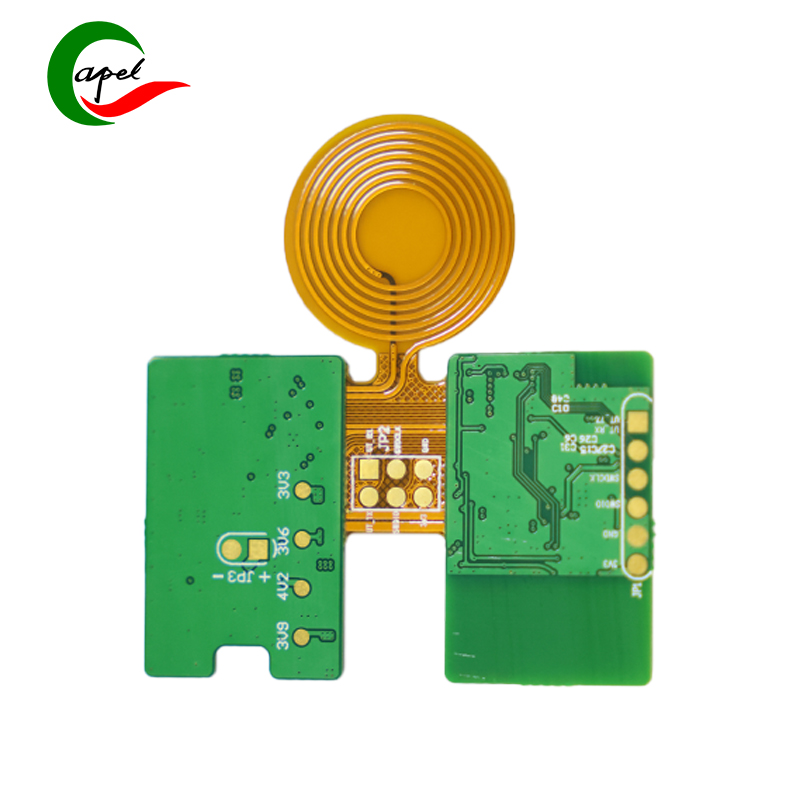

Smart Soccer Four-Layer Rigid-Flex PCB

Brief Introduction:

Type: Multilayer Rigid-Flex Board

Surface Finish: Immersion Gold

Number of Layers: 4 Layers

Board Thickness: Flex Board: 0.195mm, Rigid Board: 0.8mm

Solder Mask: White text, through-hole board

Dimensions: 47.87*52.02mm

Caboer Services:

Custom 1-30 layer FPC flexible PCBs, 2-32 layer rigid-flex PCBs, 1-60 layer rigid PCBs, reliable rapid turnaround PCB prototyping, fast SMT PCB assembly

Industries Served:

Medical devices, IoT, TUT, drones, aviation, automotive, telecommunications, consumer electronics, military, aerospace, industrial control, artificial intelligence, electric vehicles, and more...

If you have related needs, please click the button below to send us an email.

Caboer’s 4-Layer Rigid-Flex PCB for Smart Soccer is tailored for intelligent sports soccer and data-collecting football. It precisely meets the core demands of sports scenarios: shock resistance, accurate data transmission, and compact adaptation, serving as the core circuit carrier for built-in sensors, positioning modules, and data transmission units in soccer balls.

Adopting a 4-layer rigid-flex structure: the 0.195mm flexible layer offers excellent bending toughness and shock resistance, fitting closely to the internal curved surface of the soccer ball. It withstands high-frequency impacts and deformations during kicking, preventing circuit damage. The 0.8mm rigid layer is lightweight yet sturdy, reliably supporting core components such as acceleration sensors, Bluetooth modules, and battery management chips, enabling efficient integration of "flexible adaptation to ball structure + rigid fixation of core parts". With precise dimensions of 47.87*52.02mm, the compact layout does not affect the soccer ball’s weight balance or movement trajectory.

Key advantages: ① Full-board immersion gold, featuring oxidation resistance, wear resistance, and low contact resistance, resisting erosion from sweat and slight friction during sports, ensuring accurate transmission of motion data such as speed, trajectory, and landing point; ② Solder mask with white text + through-hole design, clear markings for easy module assembly and debugging, enhancing soldering reliability and post-maintenance efficiency; ③ 4-layer wiring with scientific partitioning, effectively suppressing electromagnetic interference, adapting to multi-module collaboration of sensor collection, data processing, and wireless transmission.

Caboer provides customization for 1-30 layer FPC, 2-32 layer rigid-flex PCBs, paired with rapid prototyping and SMT assembly services. Covering consumer electronics, IoT, sports equipment and other fields, we deliver highly adaptive solutions for smart soccer R&D.

Caboer Flexible PCB & Rigid-Flex PCB Process Capability

Category	Process Capability	Category	Process Capability
Production Type	Single layer FPC / Double layers FPC Multi-layer FPC / Aluminum PCBs Rigid-Flex PCB	Layers Number	1-30 layers FPC 2-32 layers Rigid-FlexPCB 1-60 layers Rigid PCB HDI Boards
Max Manufacture Size	Single layer FPC 4000mm Double layers FPC 1200mm Multi-layers FPC 750mm Rigid-Flex PCB 750mm	Insulating Layer Thickness	27.5um /37.5/ 50um /65/ 75um / 100um / 125um / 150um
Board Thickness	FPC 0.06mm - 0.4mm Rigid-Flex PCB 0.25 - 6.0mm	Tolerance of PTH Size	±0.075mm
Surface Finish	Immersion Gold/Immersion Silver/Gold Plating/Tin Plating/OSP	Stiffener	FR4 / PI / PET / SUS / PSA/Alu
Semicircle Orifice Size	Min 0.4mm	Min Line Space/ width	0.045mm/0.045mm
Thickness Tolerance	±0.03mm	Impedance	50Ω-120Ω
Copper Foil Thickness	9um/12um / 18um / 35um / 70um/100um	Impedance Controlled Tolerance	±10%
Tolerance of NPTH Size	±0.05mm	The Min Flush Width	0.80mm
Min Via Hole	0.1mm	Implement Standard	GB / IPC-650 / IPC-6012 / IPC-6013II / IPC-6013III

Caboer manufactures customized high-precision Rigid Flexible Circuit Board / Flexible PCB / HDI PCB with 15 years of experience with our professionalism

2 Layer Flexible PCB Boards Stackup

4 Layer Rigid-Flex PCB Stackup

8 layer HDI PCBs

Testing And Inspection Equipment

Microscope Testing

AOI Inspection

2D Testing

Impedance Testing

RoHS Testing

Flying Probe

Horizontal Tester

Bending Teste

Caboer provide customers customized PCB Service with 15 years of experience

Owning 3 factories for Flexible PCB&Rigid-Flex PCB, Rigid PCB, DIP/SMT Assembly;
300+Engineers Provide technical support for Pre-sales and after-sales online;
1-30 layers FPC, 2-32 layers Rigid-FlexPCB, 1-60 layers Rigid PCB
HDI Boards, Flexible PCB (FPC), Rigid-Flex PCBs, Multilayer PCBs, Single-sided PCB, Double-Sided Circuit Boards, Hollow Boards, Rogers PCB, rf PCB, Metal Core PCB, Special Process Boards, Ceramic PCB, Aluminum PCB, SMT & PTH Assembly, PCB Prototype Service.
Provide 24-hour PCB Prototyping service,Small Batches of circuit boards will be delivered in 5-7 days, Mass Production of PCB boards will be delivered in 2-3 weeks;
Industries we service: Medical Devices, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…
Our Production Capacity:
FPC and Rigid-Flex PCBs production capacity can reach more than 150000sqm per month,
PCB production capacity can reach 80000sqm per month,
PCB Assembling capacity at 150,000,000 components per month.
Our teams of engineers and researchers are dedicated to fulfilling your requirements with precision and professionalism.
