Single-Sided Flexible PCB for Equipment Buttons

Brief Introduction:

Type: Single-sided board

Material: Single-sided adhesive laminated, single-sided yellow cover film

Number of Layers: 1 layer

Board Thickness: 0.11mm

Surface Finish: Chemically Gold Plated 2μm

Capel Services:

Custom FPC Flexible PCBs (1-30 layers), Rigid-Flex PCBs (2-32 layers), Rigid PCBs (1-60 layers), Reliable Rapid Turn PCB Prototyping, Fast SMT PCB Assembly

Industries We Serve:

Medical devices, IoT, TUT, drones, aviation, automotive, telecommunications, consumer electronics, military, aerospace, industrial control, artificial intelligence, electric vehicles, and more...

If you have related needs, please click the button below to send us an email.

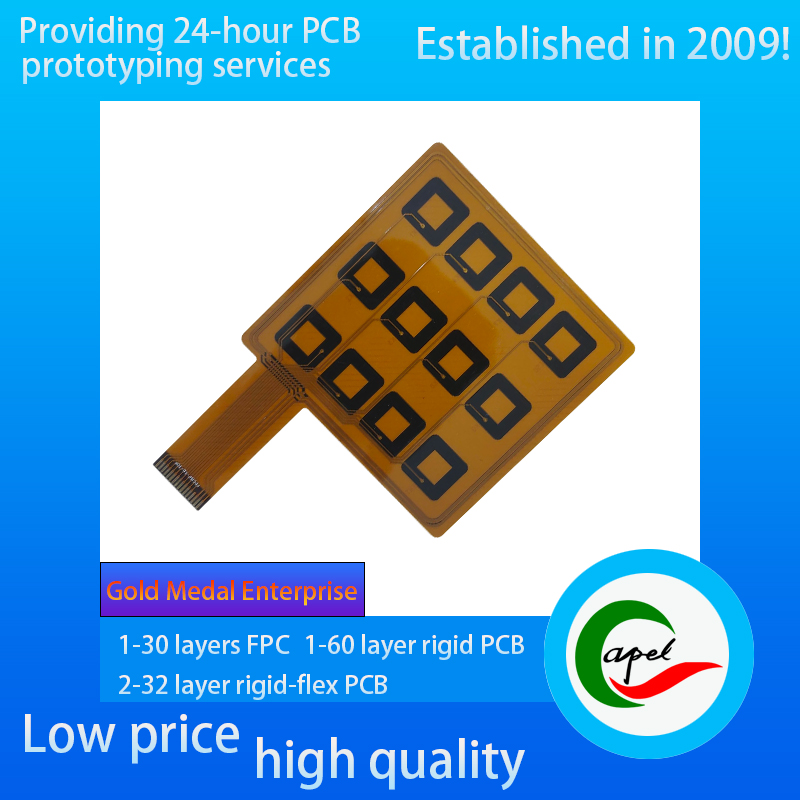

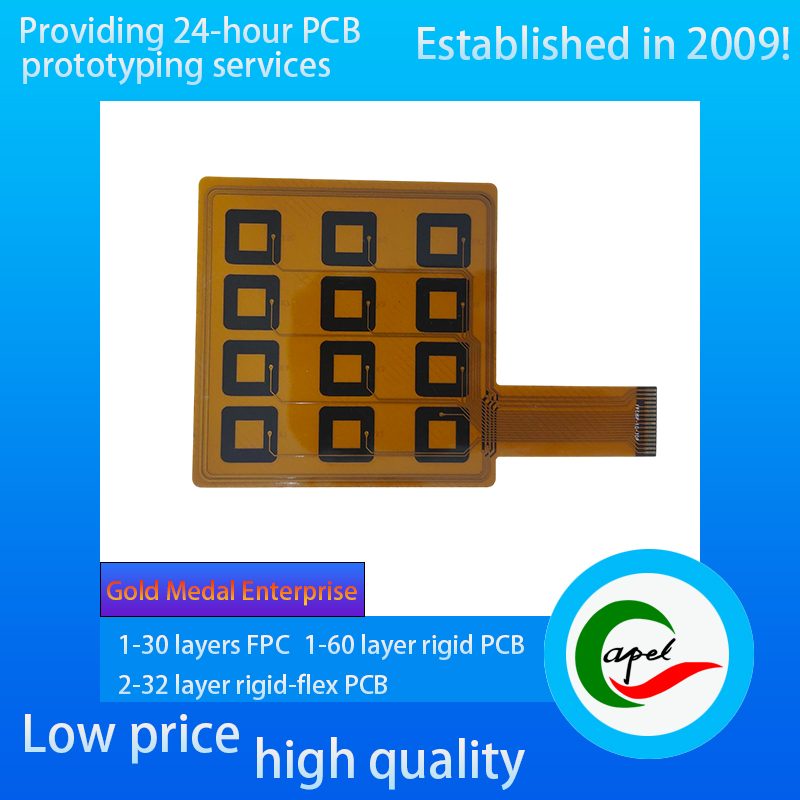

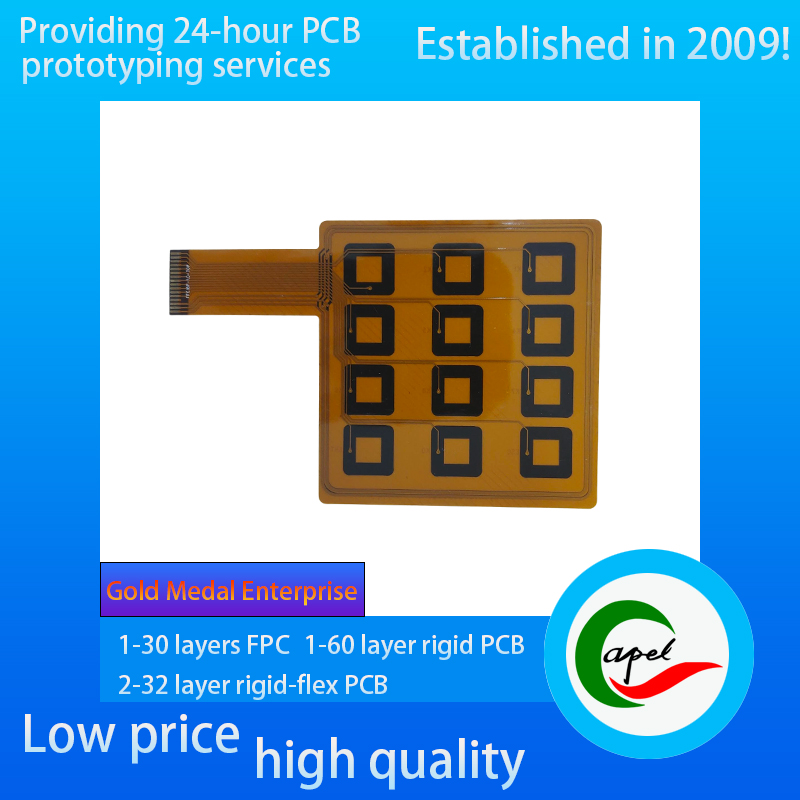

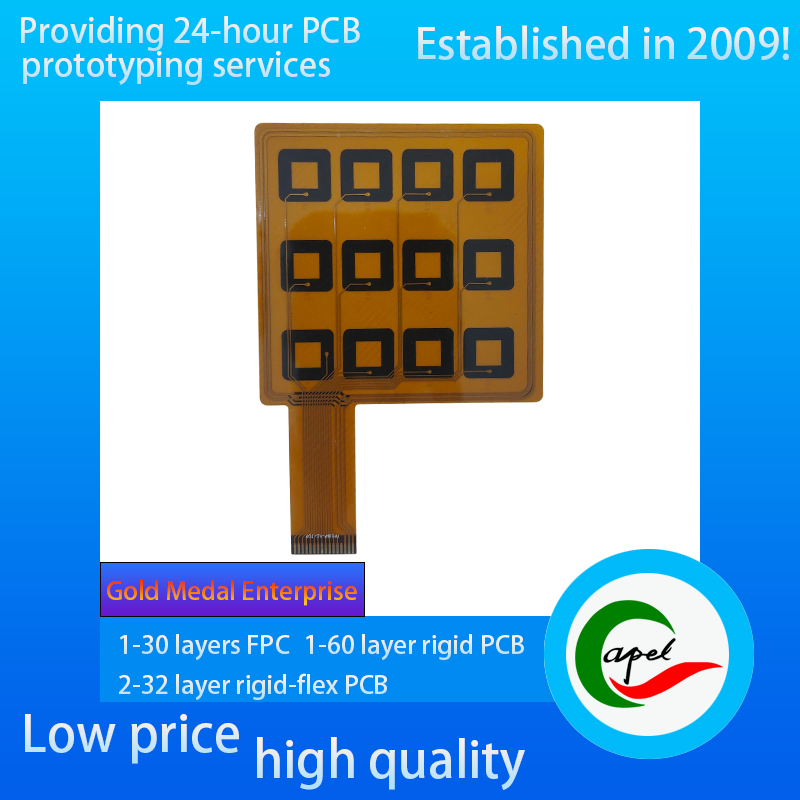

Capel’s single-sided flexible PCB for device buttons is a highly adaptable circuit component tailored for various device button modules, featuring a thin and lightweight structure and reliable performance to ensure sensitive and stable button operations. Adopting a 1-layer single-sided board design with a precisely controlled thickness of 0.11mm, its ultra-thin and flexible properties fit tightly to the curved surfaces or narrow installation spaces of button modules, adapting to the compact design needs of various button-equipped devices such as remote controls, industrial control panels and consumer electronics. It can also undergo slight deformation with button presses without affecting the operating feel.

In terms of core materials and protection design, it uses single-sided adhesive-clad rolled substrate. The rolled copper foil has a regular crystal structure, offering excellent conductivity and high bending fatigue resistance, which can stably transmit button trigger signals and withstand mechanical stress from long-term presses. The surface is covered with single-sided yellow coverlay, providing both insulation protection and wear resistance to resist dust and slight friction in daily use, extending the PCB’s service life. The 2 microinches (approximately 0.0508μm) immersion gold surface treatment creates a uniform and dense gold layer, significantly improving the contact stability between pads and button contacts/connectors, reducing contact resistance. Even in scenarios with high-frequency button operations, it can ensure the immediacy and accuracy of signal transmission, reducing issues such as button failure and response delay.

Capel Flexible PCB & Rigid-Flex PCB Process Capability

Category	Process Capability	Category	Process Capability
Production Type	Single layer FPC / Double layers FPC Multi-layer FPC / Aluminum PCBs Rigid-Flex PCB	Layers Number	1-30 layers FPC 2-32 layers Rigid-FlexPCB 1-60 layers Rigid PCB HDI Boards
Max Manufacture Size	Single layer FPC 4000mm Double layers FPC 1200mm Multi-layers FPC 750mm Rigid-Flex PCB 750mm	Insulating Layer Thickness	27.5um /37.5/ 50um /65/ 75um / 100um / 125um / 150um
Board Thickness	FPC 0.06mm - 0.4mm Rigid-Flex PCB 0.25 - 6.0mm	Tolerance of PTH Size	±0.075mm
Surface Finish	Immersion Gold/Immersion Silver/Gold Plating/Tin Plating/OSP	Stiffener	FR4 / PI / PET / SUS / PSA/Alu
Semicircle Orifice Size	Min 0.4mm	Min Line Space/ width	0.045mm/0.045mm
Thickness Tolerance	±0.03mm	Impedance	50Ω-120Ω
Copper Foil Thickness	9um/12um / 18um / 35um / 70um/100um	Impedance Controlled Tolerance	±10%
Tolerance of NPTH Size	±0.05mm	The Min Flush Width	0.80mm
Min Via Hole	0.1mm	Implement Standard	GB / IPC-650 / IPC-6012 / IPC-6013II / IPC-6013III
