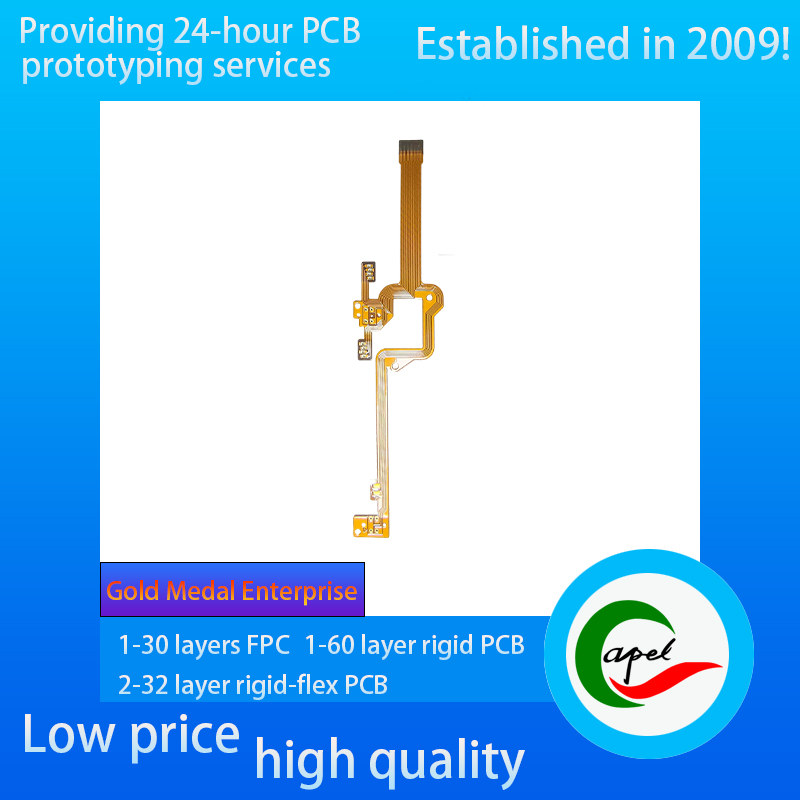

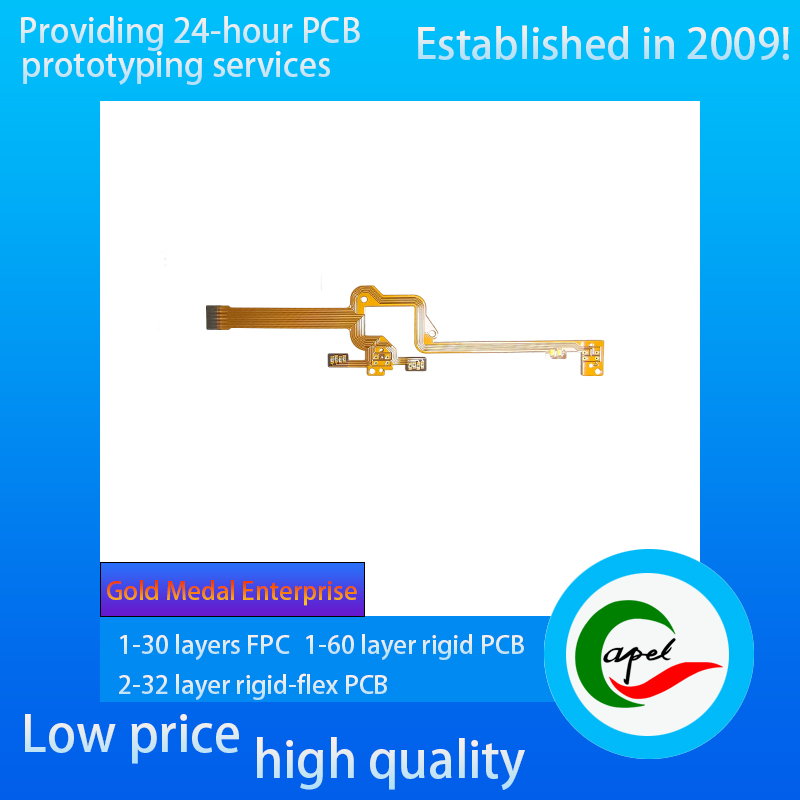

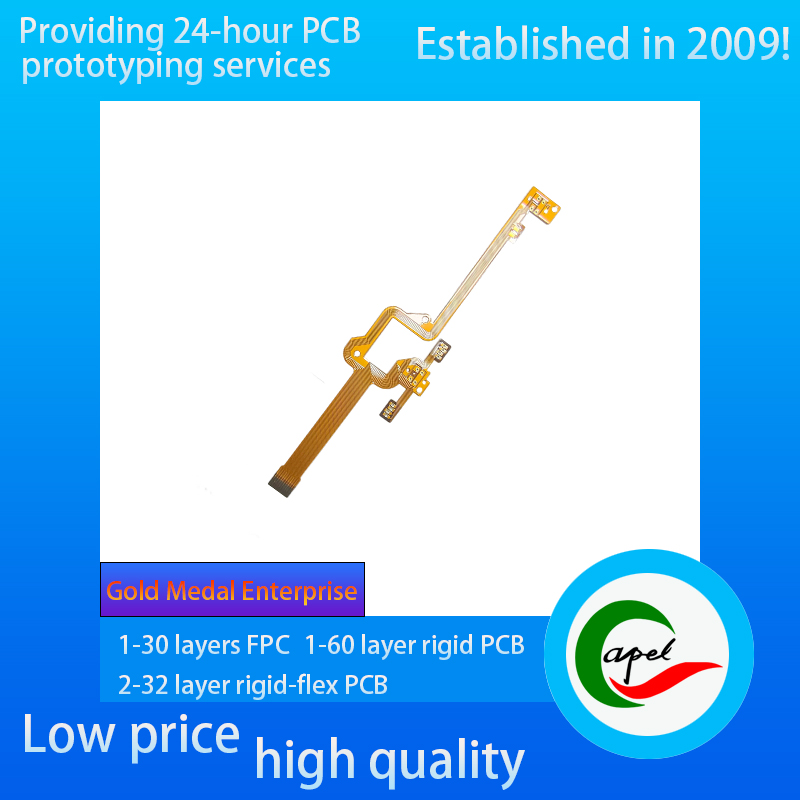

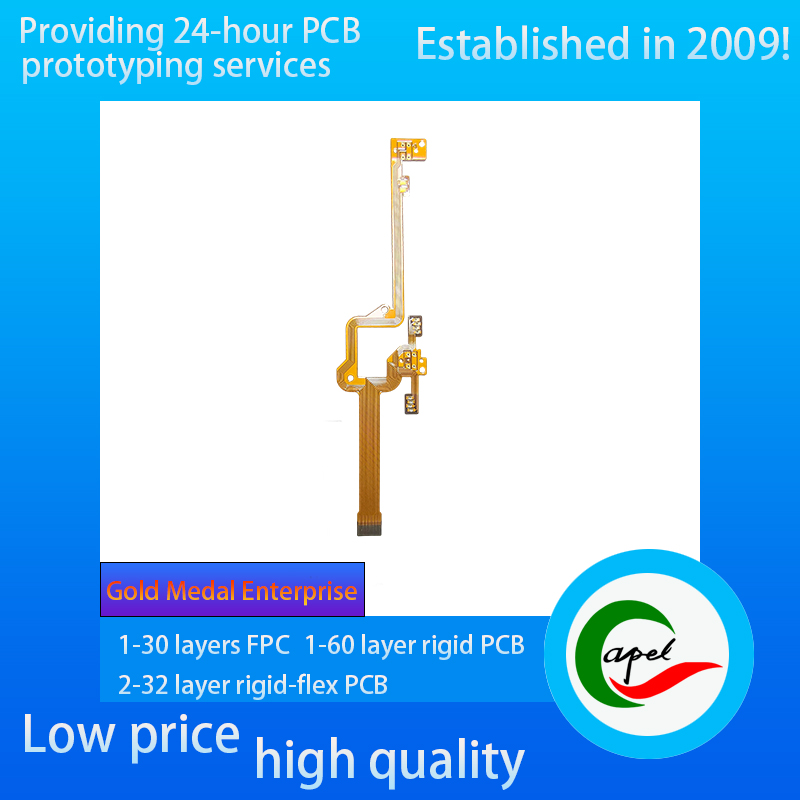

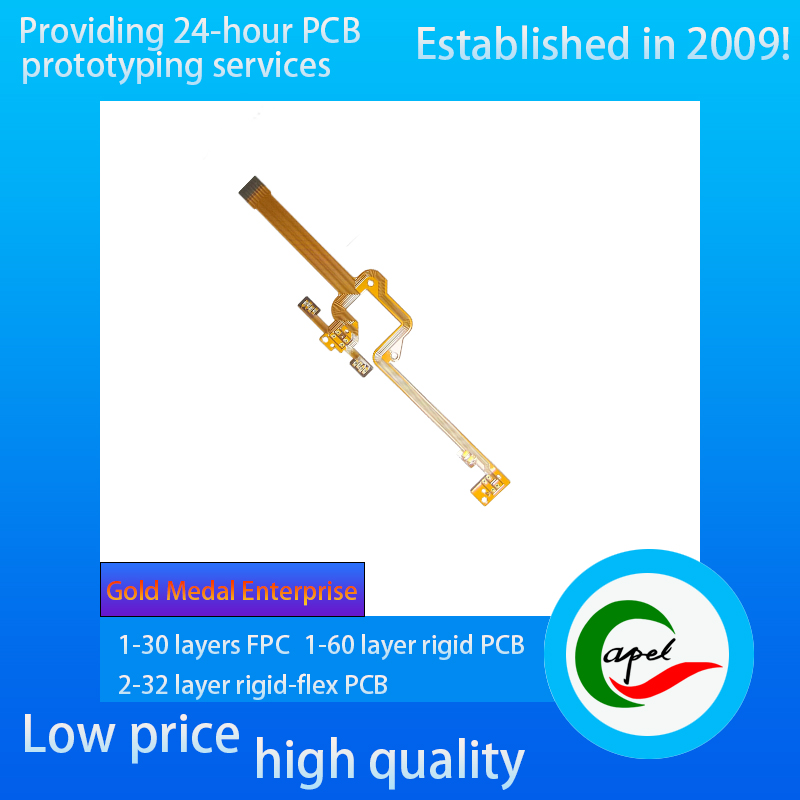

Digital Camera Flex Cable Single-Sided Flexible PCB

Brief Introduction:

Type: Single-sided board

Material: Single-sided adhesive laminated, single-sided yellow cover film

Number of Layers: 1 layer

Board Thickness: 0.15mm

Surface Finish: Chemically Gold Plated 2μm

Capel Services:

Custom manufacturing of 1-30 layer FPC flexible PCBs, 2-32 layer rigid-flex PCBs, and 1-60 layer rigid PCBs. Reliable rapid turnaround PCB prototyping and fast SMT PCB assembly.

Industries We Serve:

Medical devices, IoT, TUT, drones, aviation, automotive, telecommunications, consumer electronics, military, aerospace, industrial control, artificial intelligence, electric vehicles, and more...

If you have related needs, please click the button below to send us an email.

Capel’s single-sided flexible PCB for digital camera flat cables is a core component tailored for signal connection scenarios in digital cameras, featuring thin flexibility and reliable performance to ensure smooth operation of camera shooting functions. Adopting a 1-layer single-sided board design with a precisely controlled thickness of 0.15mm, it balances moderate thickness and flexibility to fit perfectly into the compact mechanical structure of digital cameras. It easily conforms to complex wiring paths between the lens module, button panel and motherboard—taking up no extra space to maintain the camera’s slim design while withstanding slight vibrations and assembly operations during daily use.

In terms of core materials and protection design, it uses single-sided adhesive-clad rolled substrate. The rolled copper foil has a regular crystal structure, offering excellent conductivity and extremely low signal transmission loss, which accurately carries key signals of the camera such as image data, shutter control and zoom commands, providing stable circuit support for high-definition imaging and fast focusing. The surface is covered with single-sided yellow coverlay, providing strong insulation and wear resistance to resist dust and slight moisture inside the camera, while enhancing the flat cable’s bending fatigue resistance to prevent wire breakage during long-term use. The 2 microinches (approximately 0.0508μm) immersion gold surface treatment creates a uniform and dense gold layer, significantly improving contact stability between pads and camera interfaces/connectors, reducing contact resistance. Even in scenarios of frequent shooting or ambient temperature changes, it ensures immediate and accurate signal transmission, minimizing issues like imaging delay and function failure.

Capel Flexible PCB & Rigid-Flex PCB Process Capability

Category	Process Capability	Category	Process Capability
Production Type	Single layer FPC / Double layers FPC Multi-layer FPC / Aluminum PCBs Rigid-Flex PCB	Layers Number	1-30 layers FPC 2-32 layers Rigid-FlexPCB 1-60 layers Rigid PCB HDI Boards
Max Manufacture Size	Single layer FPC 4000mm Double layers FPC 1200mm Multi-layers FPC 750mm Rigid-Flex PCB 750mm	Insulating Layer Thickness	27.5um /37.5/ 50um /65/ 75um / 100um / 125um / 150um
Board Thickness	FPC 0.06mm - 0.4mm Rigid-Flex PCB 0.25 - 6.0mm	Tolerance of PTH Size	±0.075mm
Surface Finish	Immersion Gold/Immersion Silver/Gold Plating/Tin Plating/OSP	Stiffener	FR4 / PI / PET / SUS / PSA/Alu
Semicircle Orifice Size	Min 0.4mm	Min Line Space/ width	0.045mm/0.045mm
Thickness Tolerance	±0.03mm	Impedance	50Ω-120Ω
Copper Foil Thickness	9um/12um / 18um / 35um / 70um/100um	Impedance Controlled Tolerance	±10%
Tolerance of NPTH Size	±0.05mm	The Min Flush Width	0.80mm
Min Via Hole	0.1mm	Implement Standard	GB / IPC-650 / IPC-6012 / IPC-6013II / IPC-6013III

Capel manufactures customized high-precision Rigid Flexible Circuit Board / Flexible PCB / HDI PCB with 15 years of experience with our professionalism

2 Layer Flexible PCB Boards Stackup

4 Layer Rigid-Flex PCB Stackup

8 layer HDI PCBs

Testing And Inspection Equipment

Microscope Testing

AOI Inspection

2D Testing

Impedance Testing

RoHS Testing

Flying Probe

Horizontal Tester

Bending Teste

Capel provide customers customized PCB Service with 15 years of experience

Owning 3 factories for Flexible PCB&Rigid-Flex PCB, Rigid PCB, DIP/SMT Assembly;
300+Engineers Provide technical support for Pre-sales and after-sales online;
1-30 layers FPC, 2-32 layers Rigid-FlexPCB, 1-60 layers Rigid PCB
HDI Boards, Flexible PCB (FPC), Rigid-Flex PCBs, Multilayer PCBs, Single-sided PCB, Double-Sided Circuit Boards, Hollow Boards, Rogers PCB, rf PCB, Metal Core PCB, Special Process Boards, Ceramic PCB, Aluminum PCB, SMT & PTH Assembly, PCB Prototype Service.
Provide 24-hour PCB Prototyping service,Small Batches of circuit boards will be delivered in 5-7 days, Mass Production of PCB boards will be delivered in 2-3 weeks;
Industries we service: Medical Devices, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…
Our Production Capacity:
FPC and Rigid-Flex PCBs production capacity can reach more than 150000sqm per month,
PCB production capacity can reach 80000sqm per month,
PCB Assembling capacity at 150,000,000 components per month.
