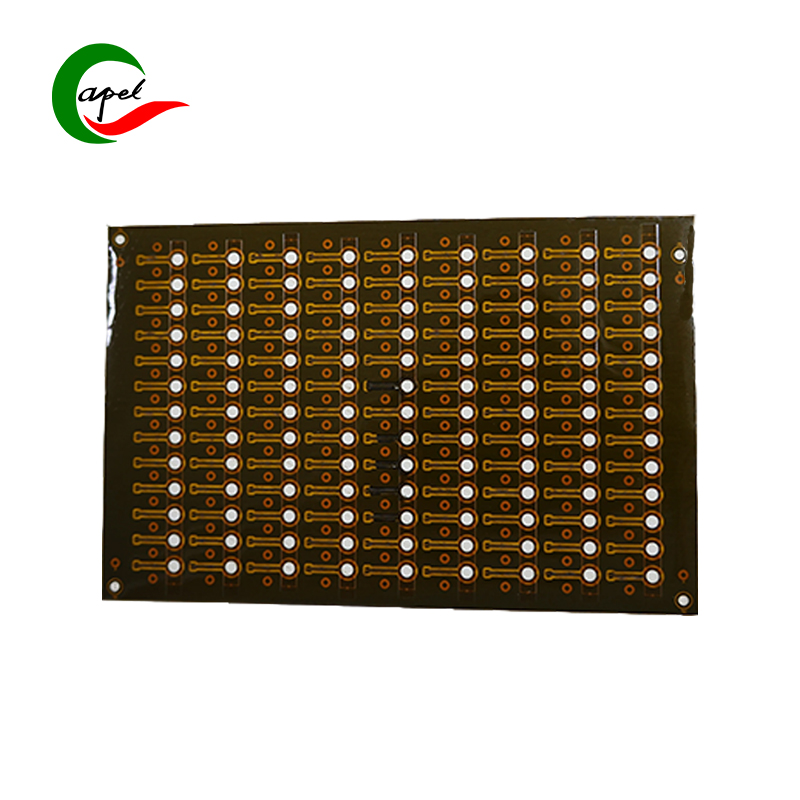

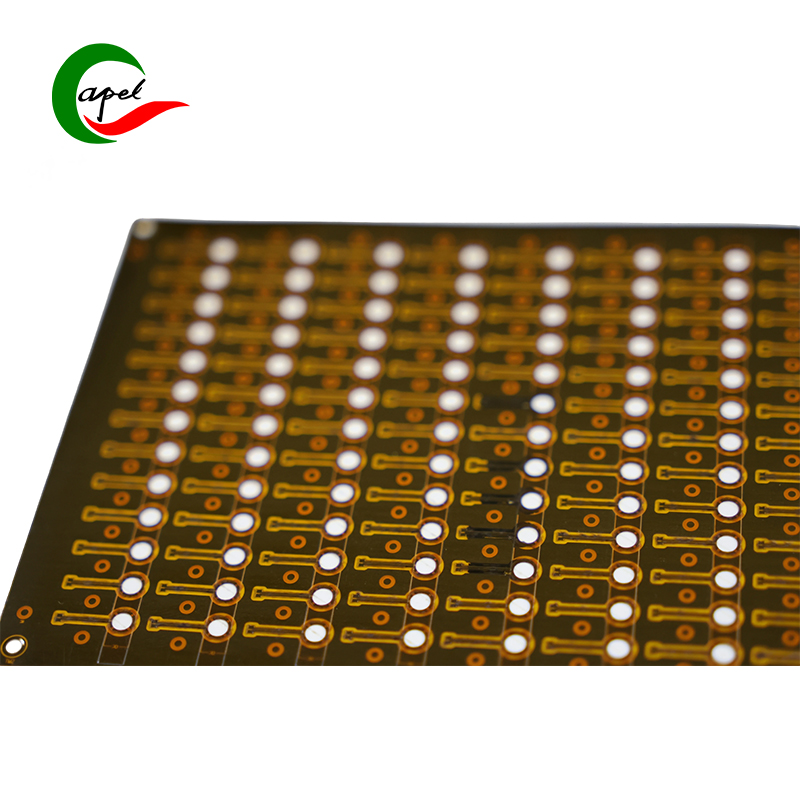

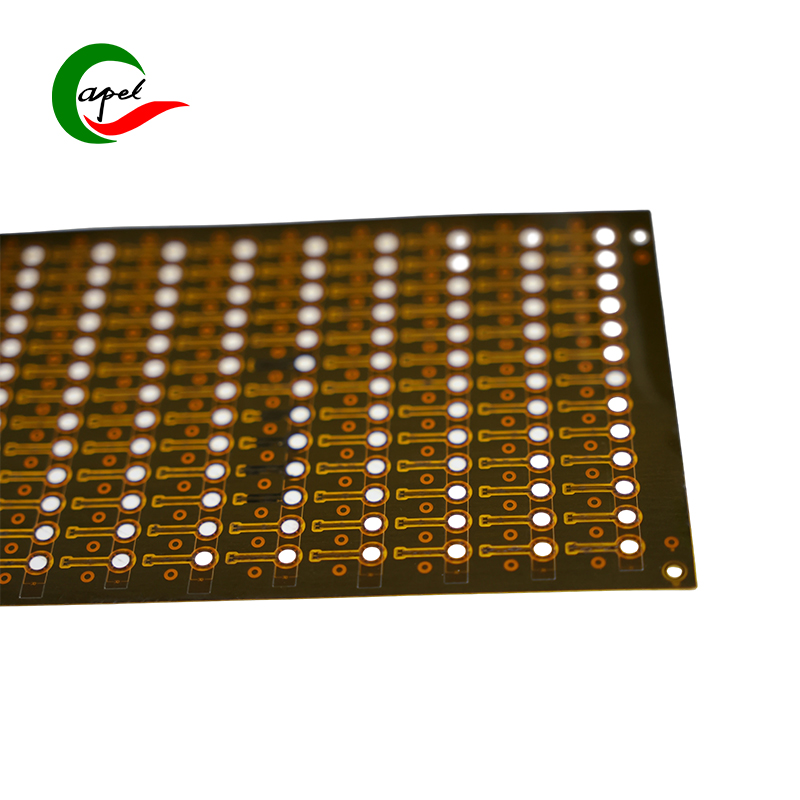

Capel’s Medical Light Panel Single-Sided Flexible PCB is a core circuit component tailored for medical lighting equipment (such as surgical shadowless lamps, examination lights, and diagnostic instrument indicators). It features medical-grade reliability and precise adaptability to ensure safe lighting and stable operation in medical scenarios. Adopting a 1-layer single-sided board design with a precisely controlled thickness of 0.1mm, its ultra-thin profile and high flexibility allow tight fit to the curved structures or narrow installation spaces of medical light panels. It adapts to the compact layout of various medical lighting devices, adding no extra thickness or weight to the lamp body while flexibly bending with the light panel shape, meeting the miniaturization and integration design requirements of medical equipment.
In terms of performance and safety, the product uses medical-grade eco-friendly substrates free of harmful substances, complying with biocompatibility standards for medical devices and suitable for clean medical environments such as hospital operating rooms and clinics. Equipped with 2 microinches (approximately 0.0508μm) immersion gold surface finish, the uniform and dense gold layer offers excellent oxidation resistance, wear resistance, and contact stability. It accurately transmits lighting drive current to ensure uniform light emission and stable brightness of LED beads, avoiding uneven light that may affect the visual field of medical operations. Additionally, the substrate and cover layer provide superior resistance to medical disinfection, withstanding repeated wiping with common disinfectants (e.g., alcohol, glutaraldehyde) without aging or cracking, extending the PCB’s service life and guaranteeing long-term reliable operation of medical lights.
As a professional PCB solution provider, Capel offers comprehensive customization capabilities for medical-grade PCBs: custom manufacturing of 1-30 layer FPC flexible PCBs, 2-32 layer rigid-flex PCBs, and 1-60 layer rigid PCBs. Complemented by reliable rapid-turnaround PCB prototyping and fast SMT PCB assembly services, we help medical device clients accelerate product R&D and mass production. Our services span diverse industries, including Medical Devices, IoT, TUT, Drones, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, Electric Vehicles, etc. With rigorous quality control and flexible customization solutions, we have become a trusted partner in the medical electronics sector.
If you have customization needs for medical light panel PCBs or other medical device PCBs, please click the button below to send us an email. Capel will provide you with a tailored solution.
Capel Flexible PCB & Rigid-Flex PCB Process Capability
| Category | Process Capability | Category | Process Capability |
| Production Type | Single layer FPC / Double layers FPC
Multi-layer FPC / Aluminum PCBs
Rigid-Flex PCB | Layers Number | 1-30 layers FPC
2-32 layers Rigid-FlexPCB
1-60 layers Rigid PCB
HDI Boards |
| Max Manufacture Size | Single layer FPC 4000mm
Double layers FPC 1200mm
Multi-layers FPC 750mm
Rigid-Flex PCB 750mm | Insulating Layer
Thickness | 27.5um /37.5/ 50um /65/ 75um / 100um /
125um / 150um |
| Board Thickness | FPC 0.06mm - 0.4mm
Rigid-Flex PCB 0.25 - 6.0mm | Tolerance of PTH
Size | ±0.075mm |
| Surface Finish | Immersion Gold/Immersion
Silver/Gold Plating/Tin Plating/OSP | Stiffener | FR4 / PI / PET / SUS / PSA/Alu |
| Semicircle Orifice Size | Min 0.4mm | Min Line Space/ width | 0.045mm/0.045mm |
| Thickness Tolerance | ±0.03mm | Impedance | 50Ω-120Ω |
| Copper Foil Thickness | 9um/12um / 18um / 35um / 70um/100um | Impedance
Controlled
Tolerance | ±10% |
Tolerance of NPTH
Size | ±0.05mm | The Min Flush Width | 0.80mm |
| Min Via Hole | 0.1mm | Implement
Standard | GB / IPC-650 / IPC-6012 / IPC-6013II /
IPC-6013III |
Capel manufactures customized high-precision Rigid Flexible Circuit Board / Flexible PCB / HDI PCB with 15 years of experience with our professionalism
2 Layer Flexible PCB Boards Stackup
4 Layer Rigid-Flex PCB Stackup
Testing And Inspection Equipment
Capel provide customers customized PCB Service with 15 years of experience
Owning 3 factories for Flexible PCB&Rigid-Flex PCB, Rigid PCB, DIP/SMT Assembly;
300+Engineers Provide technical support for Pre-sales and after-sales online;
1-30 layers FPC, 2-32 layers Rigid-FlexPCB, 1-60 layers Rigid PCB
HDI Boards, Flexible PCB (FPC), Rigid-Flex PCBs, Multilayer PCBs, Single-sided PCB, Double-Sided Circuit Boards, Hollow Boards, Rogers PCB, rf PCB, Metal Core PCB, Special Process Boards, Ceramic PCB, Aluminum PCB, SMT & PTH Assembly, PCB Prototype Service.
Provide 24-hour PCB Prototyping service,Small Batches of circuit boards will be delivered in 5-7 days, Mass Production of PCB boards will be delivered in 2-3 weeks;
Industries we service: Medical Devices, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…
Our Production Capacity:
FPC and Rigid-Flex PCBs production capacity can reach more than 150000sqm per month,
PCB production capacity can reach 80000sqm per month,
PCB Assembling capacity at 150,000,000 components per month.
Our teams of engineers and researchers are dedicated to fulfilling your requirements with precision and professionalism.
