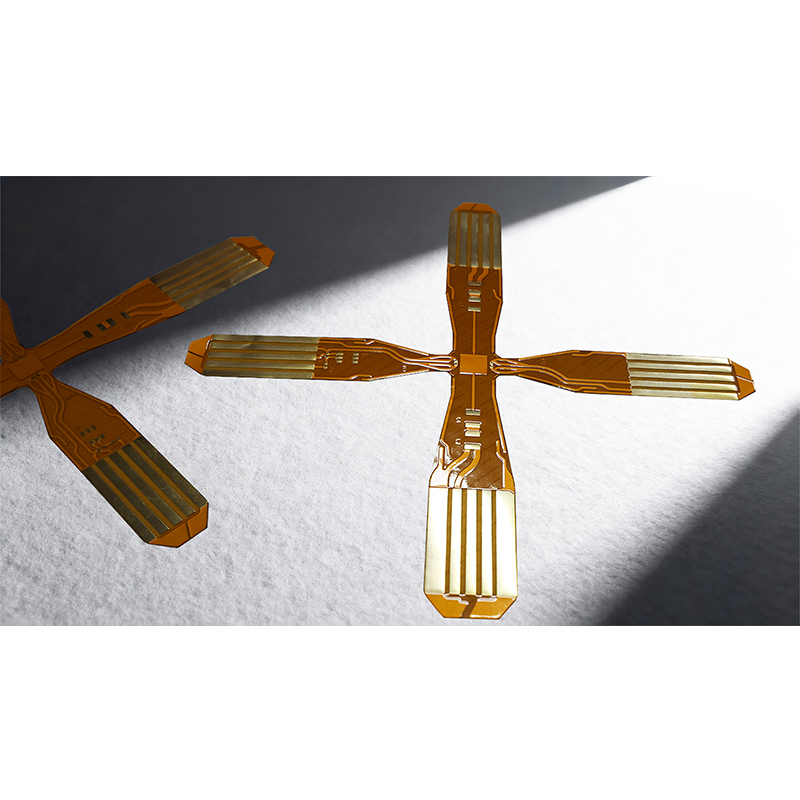

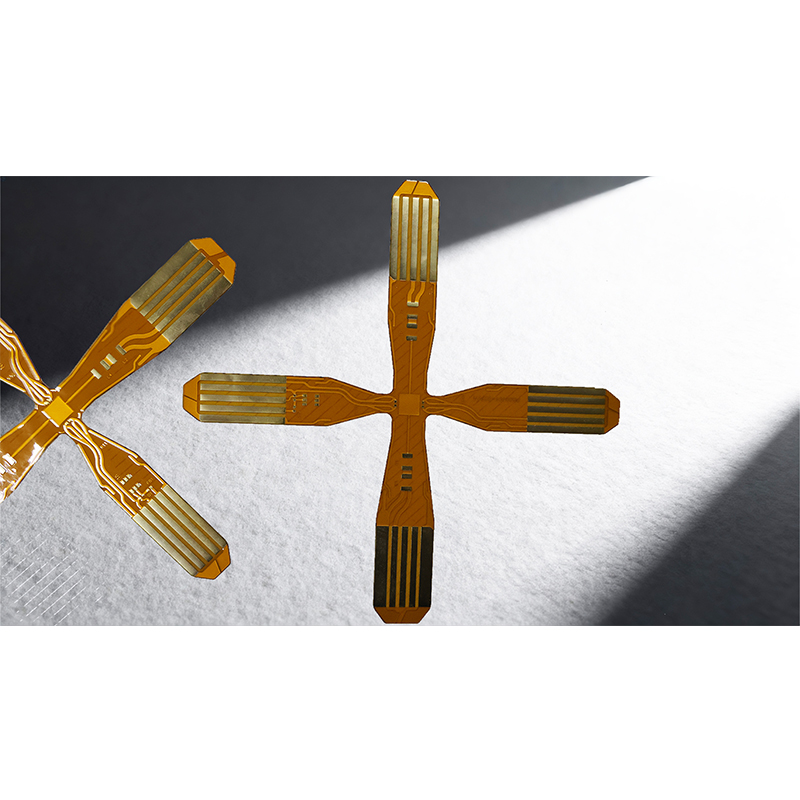

Single-Sided Flexible PCB for Facial Massager

Brief Introduction:

Type: Single-sided board

Surface Finish: Immersion gold 2 mil

Number of Layers: 1 layer

Board Thickness: 0.1mm

Capel Services:

Custom FPC flexible PCBs (1-30 layers), rigid-flex PCBs (2-32 layers), rigid PCBs (1-60 layers), reliable rapid turnaround PCB prototyping, fast SMT PCB assembly

Industries We Serve:

Medical Devices, IoT, TUT, Drones, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, Electric Vehicles, etc.

If you have related needs, please click the button below to send us an email.

Capel’s Single-Sided Flexible PCB for Facial Massagers is a core circuit component tailored for home and portable facial massage devices, featuring an ultra-thin flexible design and reliable performance to perfectly meet the ergonomic needs of massagers. Adopting a 1-layer single-sided board structure with a precisely controlled thickness of 0.1mm, its extreme thinness and flexibility allow it to fit tightly to the curved casings or movable massage head structures of facial massagers. It adds no extra weight or volume to the device while enabling slight bending with massage movements, avoiding interference with the comfortable feel of facial fit. Meanwhile, the streamlined single-layer design optimizes circuit layout efficiency, adapting to the compact internal space planning of the device.

Equipped with 2 microinches (approximately 0.0508μm) immersion gold surface finish, the uniform and dense gold layer offers excellent oxidation resistance and contact stability. It can accurately transmit the massager’s control signals (such as vibration mode switching and intensity adjustment commands) and power drive signals, reducing contact resistance and preventing signal interruption or response delay caused by frequent operations, thus ensuring smooth switching of massage functions. The product uses environmentally compliant flexible substrates with no harmful substance emissions, meeting consumer electronics safety standards and suitable for skin-contact device scenarios. It also boasts good bending fatigue resistance and wear resistance, withstanding repeated pressing, bending, and slight friction during daily use to extend the massager’s service life.

As a professional PCB solution provider, Capel offers comprehensive customization services: personalized development of 1-30 layer FPC flexible PCBs, 2-32 layer rigid-flex PCBs, and 1-60 layer rigid PCBs, complemented by reliable rapid-turnaround PCB prototyping and fast SMT PCB assembly services to help customers accelerate product R&D and mass production. Our services span multiple industries including Medical Devices, IoT, TUT, Drones, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, and Electric Vehicles. With stable quality and flexible customization capabilities, we have become a trusted partner for customers across various sectors.

If you have PCB customization needs for facial massagers or other fields, please click the button below to send us an email. Capel will provide you with a tailored solution.

Capel Flexible PCB & Rigid-Flex PCB Process Capability

Category	Process Capability	Category	Process Capability
Production Type	Single layer FPC / Double layers FPC Multi-layer FPC / Aluminum PCBs Rigid-Flex PCB	Layers Number	1-30 layers FPC 2-32 layers Rigid-FlexPCB 1-60 layers Rigid PCB HDI Boards
Max Manufacture Size	Single layer FPC 4000mm Double layers FPC 1200mm Multi-layers FPC 750mm Rigid-Flex PCB 750mm	Insulating Layer Thickness	27.5um /37.5/ 50um /65/ 75um / 100um / 125um / 150um
Board Thickness	FPC 0.06mm - 0.4mm Rigid-Flex PCB 0.25 - 6.0mm	Tolerance of PTH Size	±0.075mm
Surface Finish	Immersion Gold/Immersion Silver/Gold Plating/Tin Plating/OSP	Stiffener	FR4 / PI / PET / SUS / PSA/Alu
Semicircle Orifice Size	Min 0.4mm	Min Line Space/ width	0.045mm/0.045mm
Thickness Tolerance	±0.03mm	Impedance	50Ω-120Ω
Copper Foil Thickness	9um/12um / 18um / 35um / 70um/100um	Impedance Controlled Tolerance	±10%
Tolerance of NPTH Size	±0.05mm	The Min Flush Width	0.80mm
Min Via Hole	0.1mm	Implement Standard	GB / IPC-650 / IPC-6012 / IPC-6013II / IPC-6013III

Capel manufactures customized high-precision Rigid Flexible Circuit Board / Flexible PCB / HDI PCB with 15 years of experience with our professionalism

2 Layer Flexible PCB Boards Stackup

4 Layer Rigid-Flex PCB Stackup

8 layer HDI PCBs

Testing And Inspection Equipment

Microscope Testing

AOI Inspection

2D Testing

Impedance Testing

RoHS Testing

Flying Probe

Horizontal Tester

Bending Teste

Capel provide customers customized PCB Service with 15 years of experience

Owning 3 factories for Flexible PCB&Rigid-Flex PCB, Rigid PCB, DIP/SMT Assembly;
300+Engineers Provide technical support for Pre-sales and after-sales online;
1-30 layers FPC, 2-32 layers Rigid-FlexPCB, 1-60 layers Rigid PCB
HDI Boards, Flexible PCB (FPC), Rigid-Flex PCBs, Multilayer PCBs, Single-sided PCB, Double-Sided Circuit Boards, Hollow Boards, Rogers PCB, rf PCB, Metal Core PCB, Special Process Boards, Ceramic PCB, Aluminum PCB, SMT & PTH Assembly, PCB Prototype Service.
Provide 24-hour PCB Prototyping service,Small Batches of circuit boards will be delivered in 5-7 days, Mass Production of PCB boards will be delivered in 2-3 weeks;
Industries we service: Medical Devices, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…
Our Production Capacity:
FPC and Rigid-Flex PCBs production capacity can reach more than 150000sqm per month,
PCB production capacity can reach 80000sqm per month,
PCB Assembling capacity at 150,000,000 components per month.
Our teams of engineers and researchers are dedicated to fulfilling your requirements with precision and professionalism.
