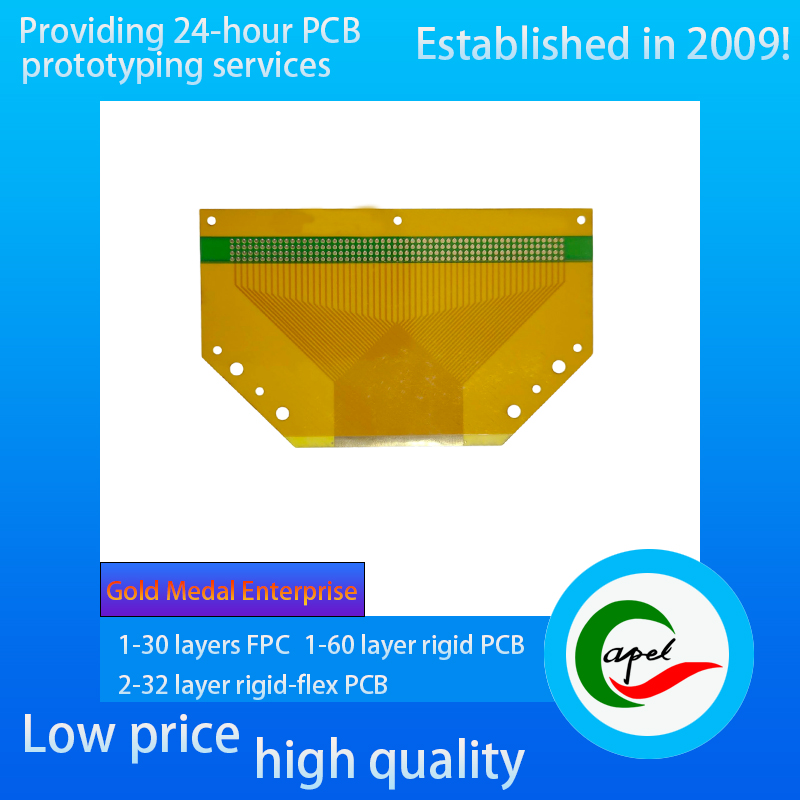

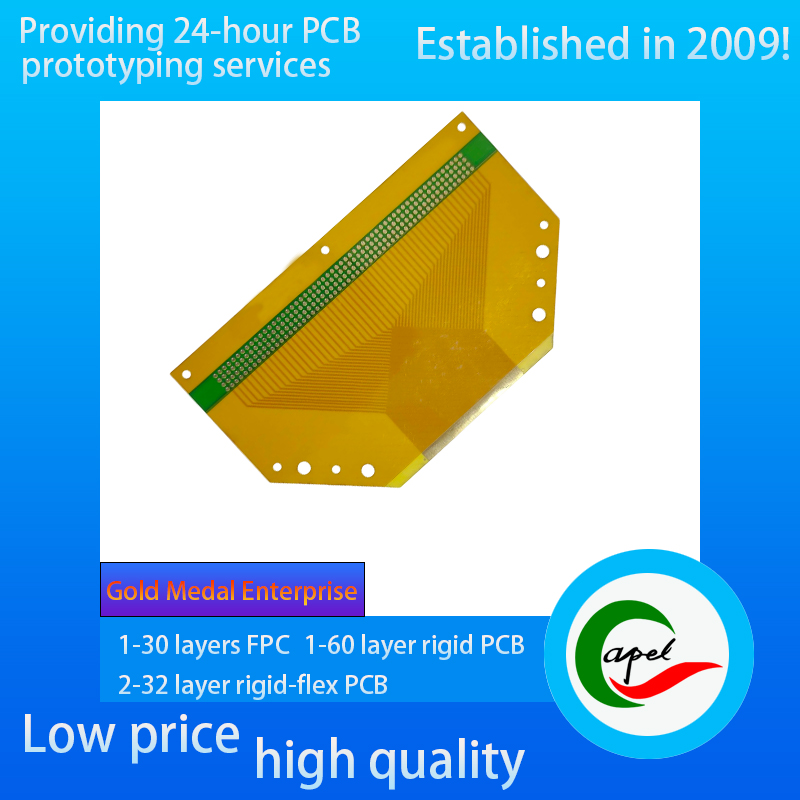

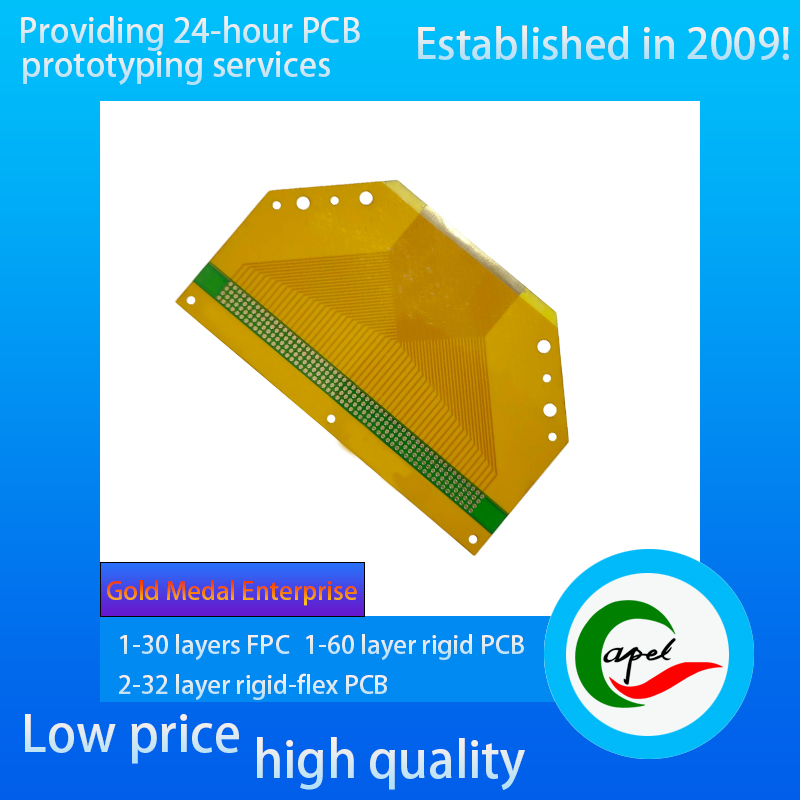

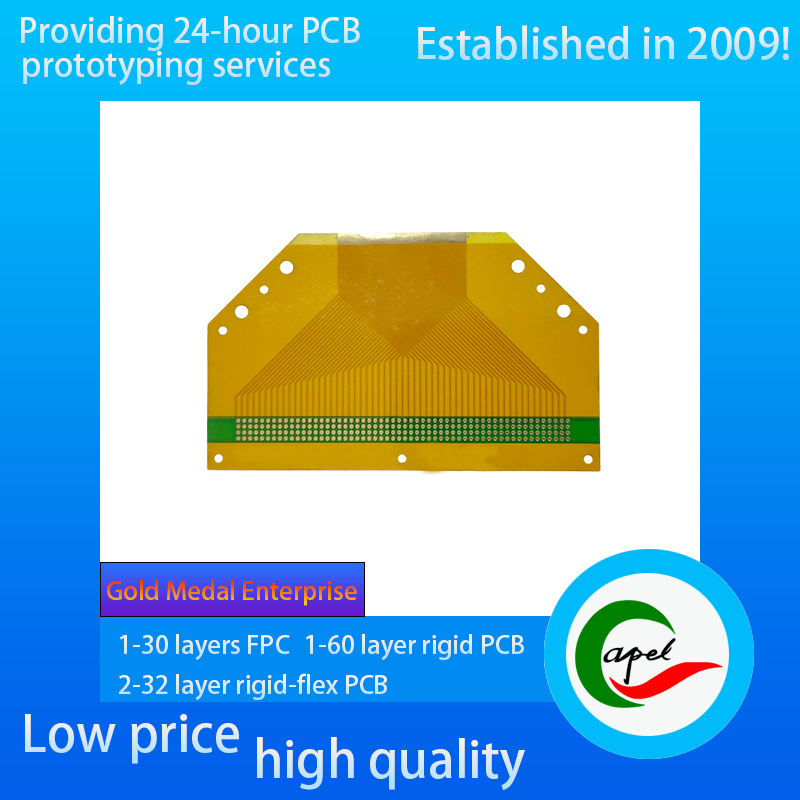

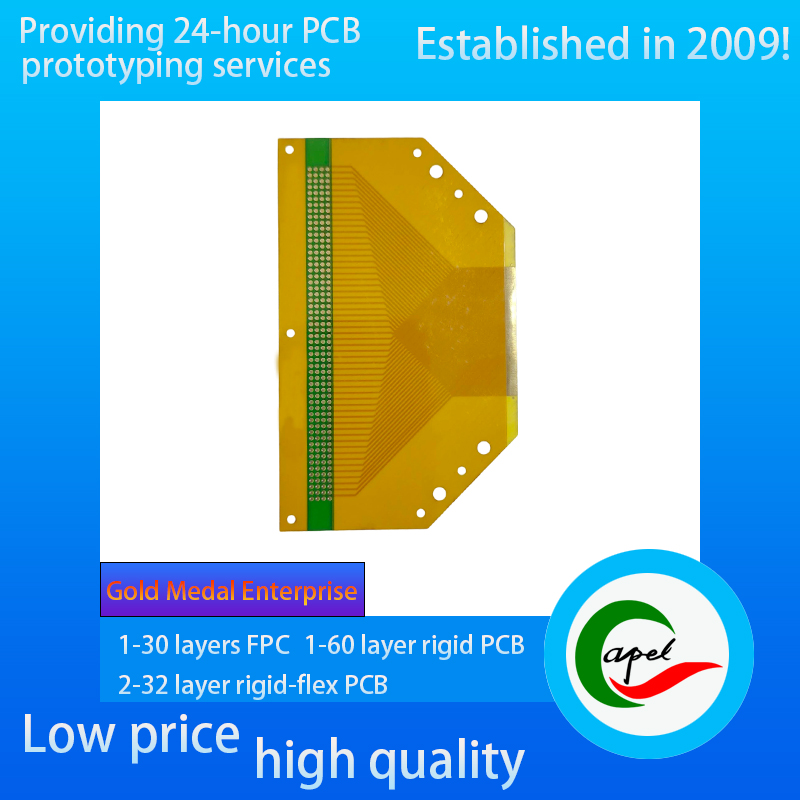

Navigation System Single-Sided Flexible PCB

Brief Introduction:

Type: Single-sided board

Material: Single-sided adhesive-free laminated 12/12.5, single-sided yellow cover film 27.5μm

Number of Layers: 1 layer

Board Thickness: 0.05mm

Surface Finish: Chemically Gold 2 Microns

Capel Services:

Supports custom 1-30 layer FPC flexible PCBs, 2-32 layer rigid-flex PCBs, 1-60 layer rigid PCBs, reliable rapid turnaround PCB prototyping, and fast SMT PCB assembly

Industries We Serve:

Medical devices, IoT, TUT, drones, aviation, automotive, telecommunications, consumer electronics, military, aerospace, industrial control, artificial intelligence, electric vehicles, and more...

If you have related needs, please click the button below to send us an email.

Capel’s single-sided flexible PCB for navigators is a core circuit component tailored for portable navigation devices (such as in-vehicle navigators and handheld outdoor navigators), featuring an ultra-thin and lightweight design and reliable performance to ensure accurate transmission of navigation signals. Adopting a 1-layer single-sided board structure with a thickness of only 0.05mm, it is a typical ultra-thin flexible PCB. With its extreme thinness and flexibility, it can flexibly fit the compact layout of screen modules, positioning modules, and battery components inside the navigator. It can even adapt to curved bodies or foldable designs, saving internal space to the greatest extent and helping the navigator achieve lightweight and miniaturization, meeting users’ portable carrying needs.

In terms of core materials and protection performance, it uses single-sided adhesive-free rolled 12/12.5 substrate. The 12μm ultra-thin rolled copper foil has a regular crystal structure, offering excellent conductivity and extremely low signal transmission loss. It can accurately carry GPS/Beidou positioning signals, map data transmission, and touch control commands of the navigator, avoiding signal delay or distortion that affects positioning accuracy. The surface is covered with 27.5μm single-sided yellow coverlay, which not only ensures strong insulation performance but also has good wear resistance and bending resistance. It can resist slight friction, collision, and temperature fluctuations (adapting to the operating environment of -20℃ to 60℃) during daily use, extending the PCB’s service life. The 2 microinches (approximately 0.0508μm) immersion gold surface treatment creates a uniform and dense gold layer, significantly improving the contact stability between pads, navigator connectors, and precision components, and reducing contact resistance. Even in scenarios of frequent power on/off or use in complex outdoor environments, it can ensure continuous and reliable circuit operation, guaranteeing accurate navigation positioning and smooth operation response.

Capel Flexible PCB & Rigid-Flex PCB Process Capability

Category	Process Capability	Category	Process Capability
Production Type	Single layer FPC / Double layers FPC Multi-layer FPC / Aluminum PCBs Rigid-Flex PCB	Layers Number	1-30 layers FPC 2-32 layers Rigid-FlexPCB 1-60 layers Rigid PCB HDI Boards
Max Manufacture Size	Single layer FPC 4000mm Double layers FPC 1200mm Multi-layers FPC 750mm Rigid-Flex PCB 750mm	Insulating Layer Thickness	27.5um /37.5/ 50um /65/ 75um / 100um / 125um / 150um
Board Thickness	FPC 0.06mm - 0.4mm Rigid-Flex PCB 0.25 - 6.0mm	Tolerance of PTH Size	±0.075mm
Surface Finish	Immersion Gold/Immersion Silver/Gold Plating/Tin Plating/OSP	Stiffener	FR4 / PI / PET / SUS / PSA/Alu
Semicircle Orifice Size	Min 0.4mm	Min Line Space/ width	0.045mm/0.045mm
Thickness Tolerance	±0.03mm	Impedance	50Ω-120Ω
Copper Foil Thickness	9um/12um / 18um / 35um / 70um/100um	Impedance Controlled Tolerance	±10%
Tolerance of NPTH Size	±0.05mm	The Min Flush Width	0.80mm
Min Via Hole	0.1mm	Implement Standard	GB / IPC-650 / IPC-6012 / IPC-6013II / IPC-6013III

Capel manufactures customized high-precision Rigid Flexible Circuit Board / Flexible PCB / HDI PCB with 15 years of experience with our professionalism

2 Layer Flexible PCB Boards Stackup

4 Layer Rigid-Flex PCB Stackup

8 layer HDI PCBs

Testing And Inspection Equipment

Microscope Testing

AOI Inspection

2D Testing

Impedance Testing

RoHS Testing

Flying Probe

Horizontal Tester

Bending Teste

Capel provide customers customized PCB Service with 15 years of experience

Owning 3 factories for Flexible PCB&Rigid-Flex PCB, Rigid PCB, DIP/SMT Assembly;
300+Engineers Provide technical support for Pre-sales and after-sales online;
1-30 layers FPC, 2-32 layers Rigid-FlexPCB, 1-60 layers Rigid PCB
HDI Boards, Flexible PCB (FPC), Rigid-Flex PCBs, Multilayer PCBs, Single-sided PCB, Double-Sided Circuit Boards, Hollow Boards, Rogers PCB, rf PCB, Metal Core PCB, Special Process Boards, Ceramic PCB, Aluminum PCB, SMT & PTH Assembly, PCB Prototype Service.
Provide 24-hour PCB Prototyping service,Small Batches of circuit boards will be delivered in 5-7 days, Mass Production of PCB boards will be delivered in 2-3 weeks;
Industries we service: Medical Devices, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…
Our Production Capacity:
FPC and Rigid-Flex PCBs production capacity can reach more than 150000sqm per month,
PCB production capacity can reach 80000sqm per month,
PCB Assembling capacity at 150,000,000 components per month.
Our teams of engineers and researchers are dedicated to fulfilling your requirements with precision and professionalism.
