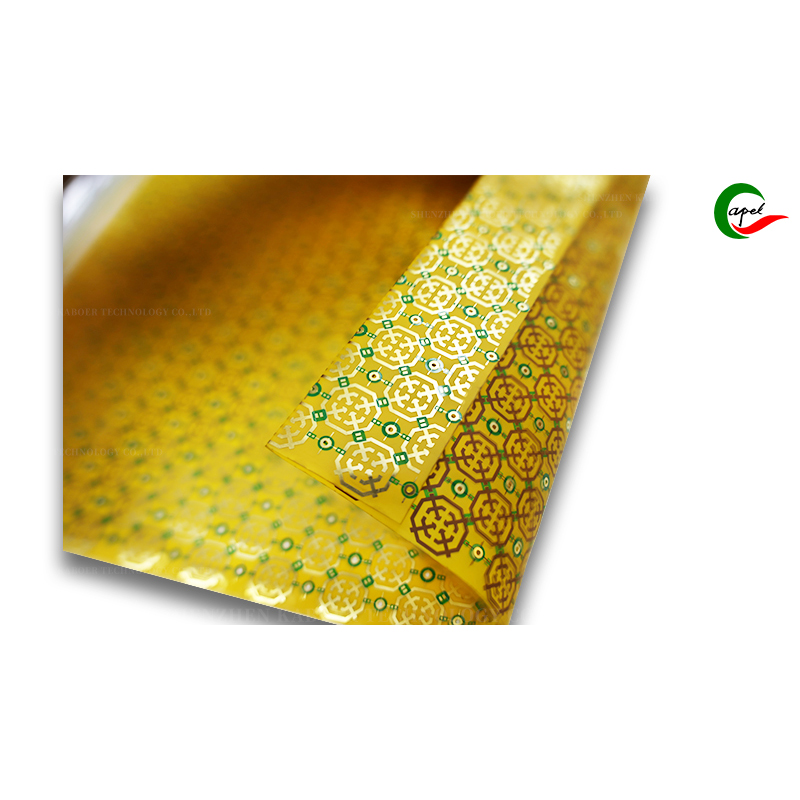

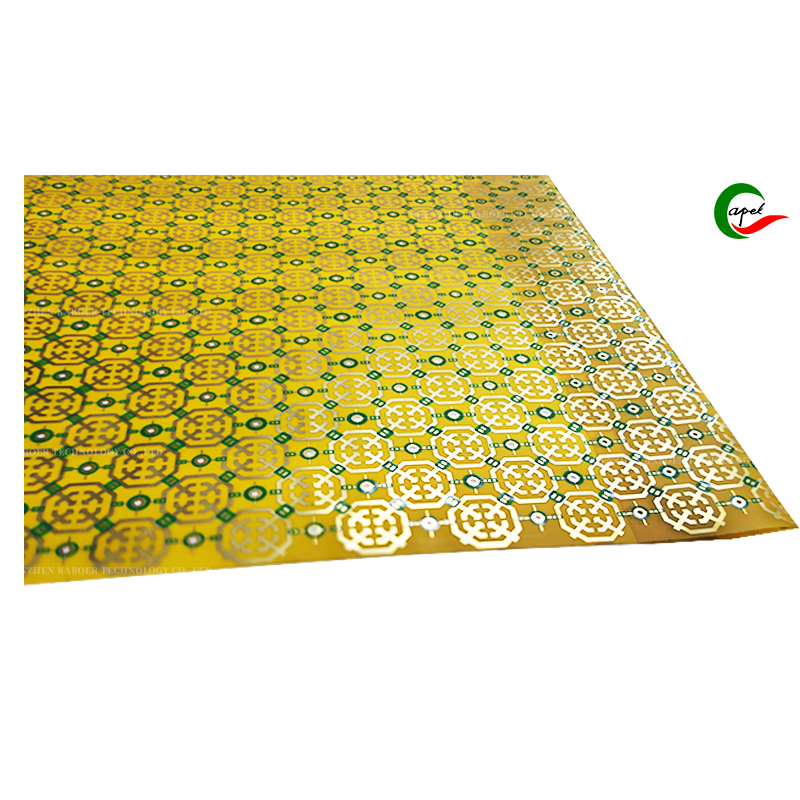

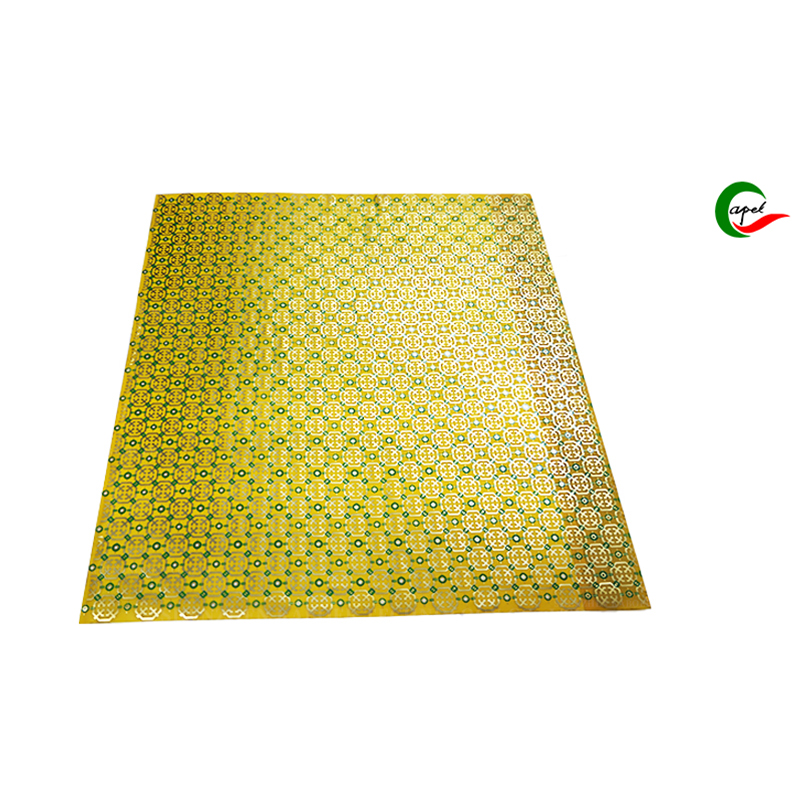

Caboer’s Ultra-Thin Precision Single-Sided Flexible PCB is a core circuit component tailored for various electronic devices requiring strict control over size, weight, and signal transmission accuracy (such as smart wearables, micro-sensors, portable electronic terminals, and precision control modules). It features an extreme design and reliable performance to adapt to the R&D trend of high-density and miniaturized products. Adopting a 1-layer single-sided board structure with a thickness of only 0.06mm, it combines "ultra-thin" and "flexible" advantages, enabling flexible fit to curved casings, narrow installation spaces, or complex wiring paths. It adds no extra volume or weight to the device while withstanding slight bending during assembly and mechanical stress in daily use, perfectly suiting lightweight product needs such as smart watches, micro IoT terminals, and portable medical accessories.
In terms of core features and performance guarantees, the product offers three key advantages: ① Full-Board Immersion Gold Plating: The entire board is treated with immersion gold (instead of partial gold plating), ensuring uniform gold layer coverage. Compared with conventional partial gold plating, it provides superior oxidation resistance, wear resistance, and contact stability, effectively reducing contact resistance and guaranteeing smooth and accurate signal transmission—especially suitable for high-frequency plugging/unplugging or long-term use scenarios; ② Coverlay-Free Design: Eliminating the traditional coverlay structure further reduces thickness, improves heat dissipation efficiency, and minimizes assembly interference, adapting to compact circuit layouts with special requirements for space and heat dissipation; ③ Precision Wiring Capability: Supporting uniform wiring with 0.2mm line width and 0.2mm spacing, paired with a 35μm copper thickness substrate, it achieves high-density circuit integration while ensuring sufficient current-carrying capacity, avoiding line heating or signal attenuation, and adapting to complex control signal and low-power power transmission needs. The product uses high-quality flexible substrates with good temperature resistance (-40℃ to 85℃) and anti-aging properties, meeting reliability standards for electronic devices in multiple fields.
As a professional PCB solution provider, Caboer offers comprehensive customization capabilities: personalized development of 1-30 layer FPC flexible PCBs, 2-32 layer rigid-flex PCBs, and 1-60 layer rigid PCBs. Complemented by reliable rapid-turnaround PCB prototyping and fast SMT PCB assembly services, we help customers accelerate product R&D and mass production processes. Our services span diverse industries, including medical devices, IoT, TUT, drones, aviation, automotive, telecommunications, consumer electronics, military, aerospace, industrial control, artificial intelligence, electric vehicles, and more. With stable product quality, flexible customization solutions, and efficient delivery capabilities, we have become a trusted partner for customers across various sectors.
If you have customization needs for this type of PCB or other fields, please click the button below to send us an email. Caboer will provide you with a tailored solution.
Capel Flexible PCB & Rigid-Flex PCB Process Capability
| Category | Process Capability | Category | Process Capability |
| Production Type | Single layer FPC / Double layers FPC
Multi-layer FPC / Aluminum PCBs
Rigid-Flex PCB | Layers Number | 1-30 layers FPC
2-32 layers Rigid-FlexPCB
1-60 layers Rigid PCB
HDI Boards |
| Max Manufacture Size | Single layer FPC 4000mm
Double layers FPC 1200mm
Multi-layers FPC 750mm
Rigid-Flex PCB 750mm | Insulating Layer
Thickness | 27.5um /37.5/ 50um /65/ 75um / 100um /
125um / 150um |
| Board Thickness | FPC 0.06mm - 0.4mm
Rigid-Flex PCB 0.25 - 6.0mm | Tolerance of PTH
Size | ±0.075mm |
| Surface Finish | Immersion Gold/Immersion
Silver/Gold Plating/Tin Plating/OSP | Stiffener | FR4 / PI / PET / SUS / PSA/Alu |
| Semicircle Orifice Size | Min 0.4mm | Min Line Space/ width | 0.045mm/0.045mm |
| Thickness Tolerance | ±0.03mm | Impedance | 50Ω-120Ω |
| Copper Foil Thickness | 9um/12um / 18um / 35um / 70um/100um | Impedance
Controlled
Tolerance | ±10% |
Tolerance of NPTH
Size | ±0.05mm | The Min Flush Width | 0.80mm |
| Min Via Hole | 0.1mm | Implement
Standard | GB / IPC-650 / IPC-6012 / IPC-6013II /
IPC-6013III |
Capel manufactures customized high-precision Rigid Flexible Circuit Board / Flexible PCB / HDI PCB with 15 years of experience with our professionalism
2 Layer Flexible PCB Boards Stackup
4 Layer Rigid-Flex PCB Stackup
Testing And Inspection Equipment
Capel provide customers customized PCB Service with 15 years of experience
Owning 3 factories for Flexible PCB&Rigid-Flex PCB, Rigid PCB, DIP/SMT Assembly;
300+Engineers Provide technical support for Pre-sales and after-sales online;
1-30 layers FPC, 2-32 layers Rigid-FlexPCB, 1-60 layers Rigid PCB
HDI Boards, Flexible PCB (FPC), Rigid-Flex PCBs, Multilayer PCBs, Single-sided PCB, Double-Sided Circuit Boards, Hollow Boards, Rogers PCB, rf PCB, Metal Core PCB, Special Process Boards, Ceramic PCB, Aluminum PCB, SMT & PTH Assembly, PCB Prototype Service.
Provide 24-hour PCB Prototyping service,Small Batches of circuit boards will be delivered in 5-7 days, Mass Production of PCB boards will be delivered in 2-3 weeks;
Industries we service: Medical Devices, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…
Our Production Capacity:
FPC and Rigid-Flex PCBs production capacity can reach more than 150000sqm per month,
PCB production capacity can reach 80000sqm per month,
PCB Assembling capacity at 150,000,000 components per month.
Our teams of engineers and researchers are dedicated to fulfilling your requirements with precision and professionalism.
