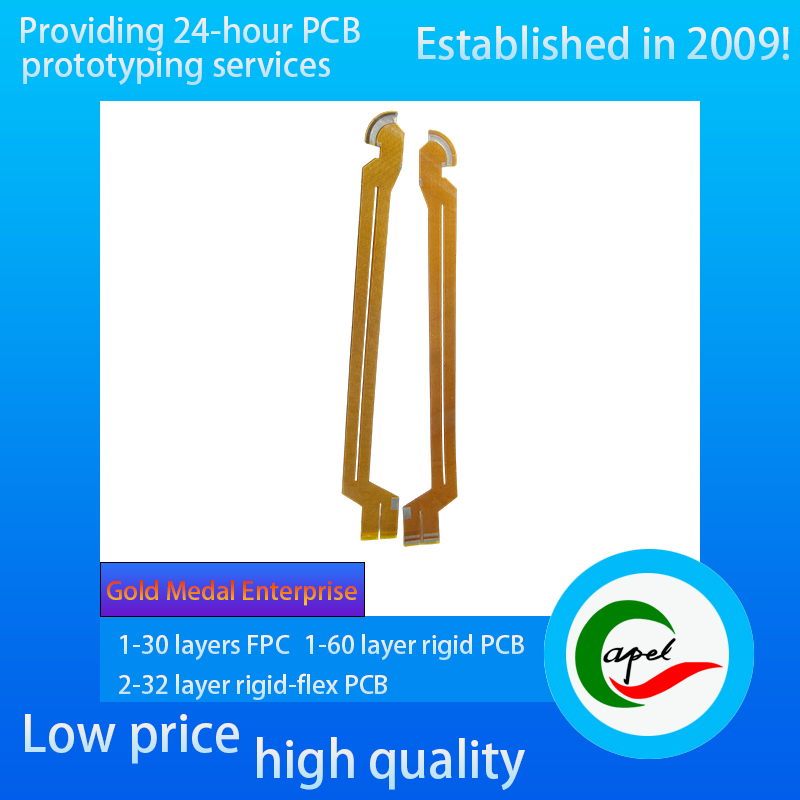

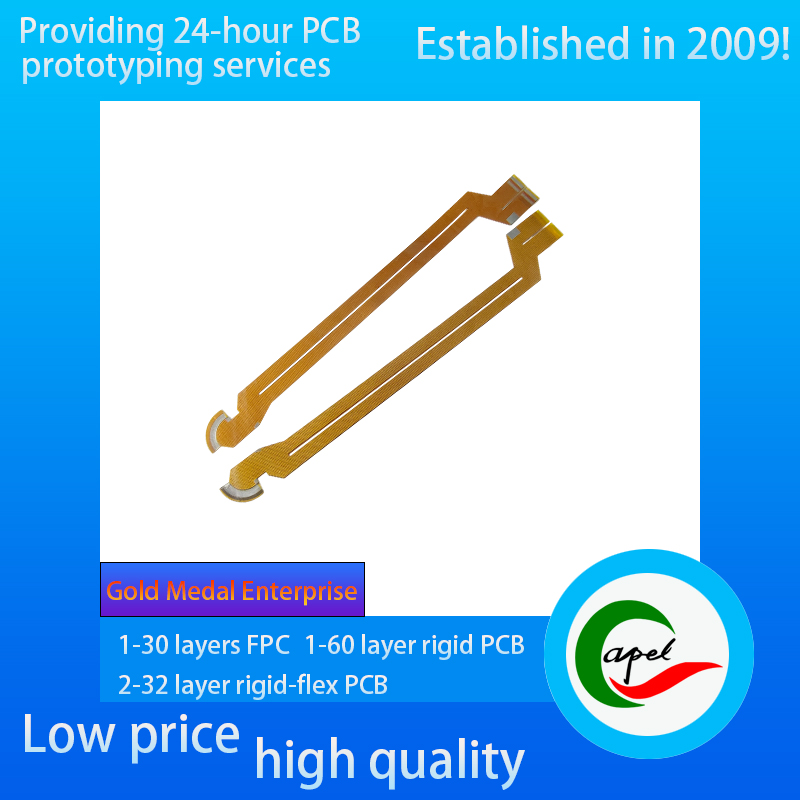

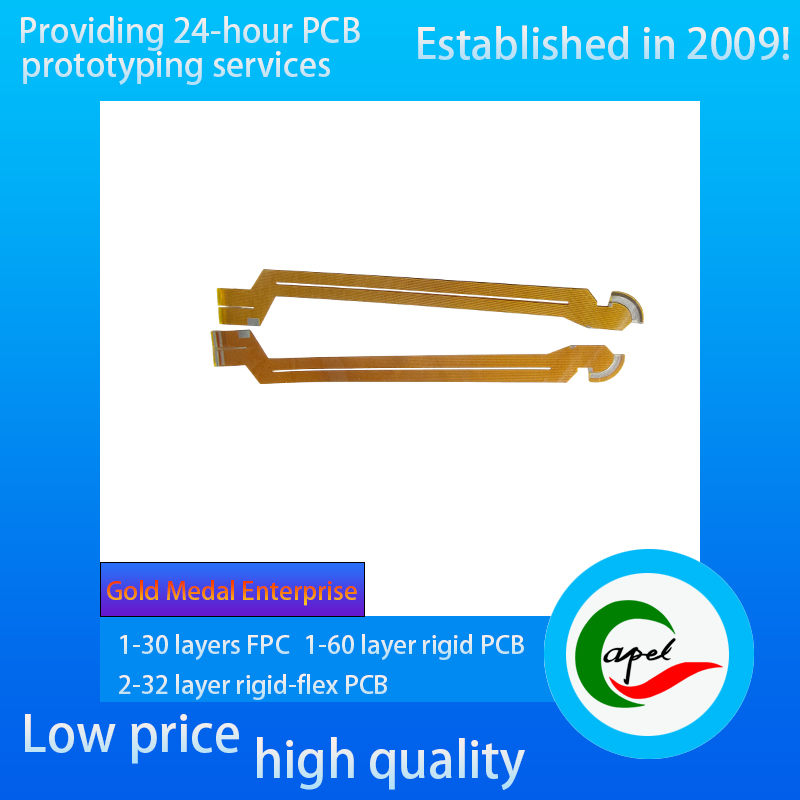

B-Ultrasound Equipment FPC

Brief Introduction:

Type: B-Ultrasound Equipment FPC

Material: Inner layer pure copper foil 35μm

Number of Layers: 3 layers

Board Thickness: 0.25mm

Surface Finish: 40μm Tin Plating

Capel Services:

Custom FPC flexible PCBs (1-30 layers), rigid-flex PCBs (2-32 layers), rigid PCBs (1-60 layers), reliable rapid turnaround PCB prototyping, fast SMT PCB assembly

Industries We Serve:

Medical devices, IoT, TUT, drones, aviation, automotive, telecommunications, consumer electronics, military, aerospace, industrial control, artificial intelligence, electric vehicles, and more...

If you have related needs, please click the button below to send us an email.

Capel FPC (Flexible Printed Circuit) specialized for B-ultrasound equipment is a high-performance core component custom-developed to meet the high precision and stability demands of medical imaging devices. Featuring a 3-layer structure and a precisely controlled board thickness of 0.25mm, this FPC exhibits excellent flexibility and compactness, which allows it to fit seamlessly into the complex internal spaces of B-ultrasound equipment and supports the industry's trends toward device miniaturization and integration.

In terms of core materials, the inner layer utilizes 35μm pure copper foil, which ensures efficient and stable signal transmission—providing a reliable circuit foundation for clear B-ultrasound imaging. The surface undergoes 40μm tin plating treatment, which significantly enhances the circuit board's oxidation resistance, wear resistance, and corrosion resistance in medical environments, thereby extending the service life of the equipment.

Backed by profound technical expertise,Capel offers comprehensive PCB customization services covering the entire product spectrum: 1-30 layer flexible PCBs (FPC), 2-32 layer rigid-flex PCBs, and 1-60 layer rigid PCBs. Whether for simple single-layer circuits or complex high-density multi-layer structures, we can accurately match your specifications. To accelerate your R&D and production cycles, we also provide reliable rapid-turnaround PCB prototyping services. Additionally, our fast SMT PCB assembly service completes the industrial chain layout, offering you an integrated solution from circuit board manufacturing to component assembly.

With professional technical capabilities and comprehensive service advantages, Capel products and services have been deeply adapted to a wide range of core industries, including medical equipment, IoT, drones, aviation, automotive, telecommunications, consumer electronics, military, aerospace, industrial control, artificial intelligence, and electric vehicles. In the medical equipment sector, products such as our B-ultrasound equipment-specific FPC have passed rigorous industry inspections and become trusted partners for numerous medical device enterprises.

If you have needs related to circuit board customization, prototyping, or SMT assembly in relevant fields, please click the button below to send us an email. Capel will provide you with professional and efficient customized solutions.

Capel Flexible PCB & Rigid-Flex PCB Process Capability

Category	Process Capability	Category	Process Capability
Production Type	Single layer FPC / Double layers FPC Multi-layer FPC / Aluminum PCBs Rigid-Flex PCB	Layers Number	1-30 layers FPC 2-32 layers Rigid-FlexPCB 1-60 layers Rigid PCB HDI Boards
Max Manufacture Size	Single layer FPC 4000mm Double layers FPC 1200mm Multi-layers FPC 750mm Rigid-Flex PCB 750mm	Insulating Layer Thickness	27.5um /37.5/ 50um /65/ 75um / 100um / 125um / 150um
Board Thickness	FPC 0.06mm - 0.4mm Rigid-Flex PCB 0.25 - 6.0mm	Tolerance of PTH Size	±0.075mm
Surface Finish	Immersion Gold/Immersion Silver/Gold Plating/Tin Plating/OSP	Stiffener	FR4 / PI / PET / SUS / PSA/Alu
Semicircle Orifice Size	Min 0.4mm	Min Line Space/ width	0.045mm/0.045mm
Thickness Tolerance	±0.03mm	Impedance	50Ω-120Ω
Copper Foil Thickness	9um/12um / 18um / 35um / 70um/100um	Impedance Controlled Tolerance	±10%
Tolerance of NPTH Size	±0.05mm	The Min Flush Width	0.80mm
Min Via Hole	0.1mm	Implement Standard	GB / IPC-650 / IPC-6012 / IPC-6013II / IPC-6013III

Capel manufactures customized high-precision Rigid Flexible Circuit Board / Flexible PCB / HDI PCB with 15 years of experience with our professionalism

2 Layer Flexible PCB Boards Stackup

4 Layer Rigid-Flex PCB Stackup

8 layer HDI PCBs

Testing And Inspection Equipment

Microscope Testing

AOI Inspection

2D Testing

Impedance Testing

RoHS Testing

Flying Probe

Horizontal Tester

Bending Teste

Capel provide customers customized PCB Service with 15 years of experience

Owning 3 factories for Flexible PCB&Rigid-Flex PCB, Rigid PCB, DIP/SMT Assembly;
300+Engineers Provide technical support for Pre-sales and after-sales online;
1-30 layers FPC, 2-32 layers Rigid-FlexPCB, 1-60 layers Rigid PCB
HDI Boards, Flexible PCB (FPC), Rigid-Flex PCBs, Multilayer PCBs, Single-sided PCB, Double-Sided Circuit Boards, Hollow Boards, Rogers PCB, rf PCB, Metal Core PCB, Special Process Boards, Ceramic PCB, Aluminum PCB, SMT & PTH Assembly, PCB Prototype Service.
Provide 24-hour PCB Prototyping service,Small Batches of circuit boards will be delivered in 5-7 days, Mass Production of PCB boards will be delivered in 2-3 weeks;
Industries we service: Medical Devices, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…
Our Production Capacity:
FPC and Rigid-Flex PCBs production capacity can reach more than 150000sqm per month,
PCB production capacity can reach 80000sqm per month,
PCB Assembling capacity at 150,000,000 components per month.
Our teams of engineers and researchers are dedicated to fulfilling your requirements with precision and professionalism.
